HART Communication 4-20mA Input Digital Valve Positioner with Aluminum Alloy Housing for Control Valves

Product Overview

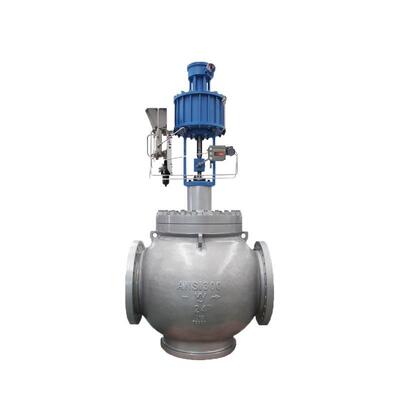

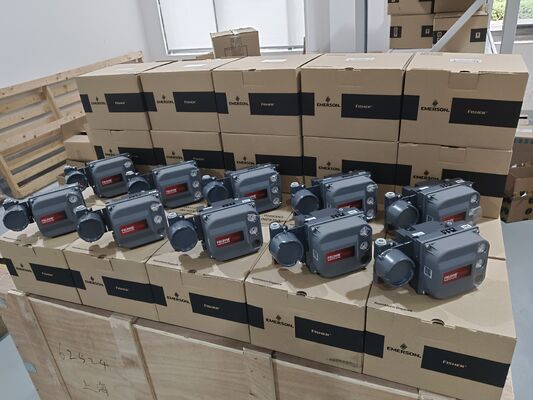

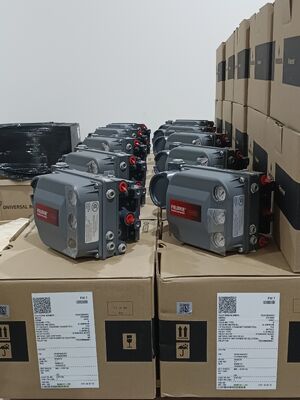

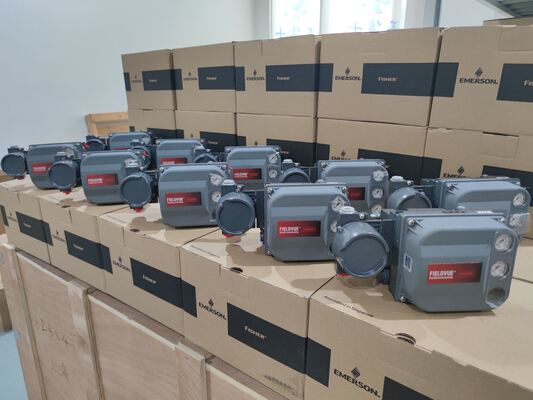

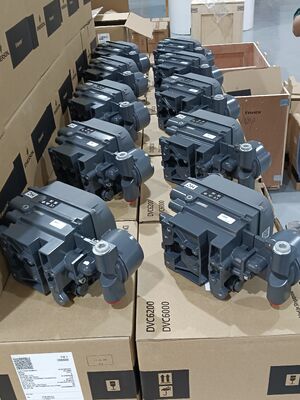

The Fisher DVC6200 digital valve positioner package is supplied as a factory-matched assembly for control valves and rotary valve applications. It converts a 4-20 mA input signal into precise pneumatic output, using HART communication for configuration and diagnostics. The unit supports ValveLink software, allowing valve signature, step response, and performance diagnostics without removing the positioner from service.

The DVC6200 is designed for linear and rotary actuators. Its rugged housing is available in aluminum or stainless steel, with IP66/NEMA 4X protection and optional explosion-proof certifications. The positioner operates within -40°C to +85°C and accepts supply pressure from 20 to 150 psi. It is suitable for chemical, petrochemical, oil and gas, power, and water treatment plants.

Technical Specifications

Application Industry

The Fisher DVC6200 serves chemical processing, petrochemical, oil and gas, power generation, water and wastewater treatment, pulp and paper, and general industrial valve automation. It is commonly used on globe valves, butterfly valves, ball valves, and other control valves requiring accurate position feedback and diagnostics.

Common Problems

• Positioner not responding to input signal: Check wiring polarity, input signal range, and HART communication.

• Air leakage from positioner: Inspect tubing, gaskets, and relay assembly.

• Calibration failure: Verify travel calibration, magnet assembly alignment, and actuator mounting.

• ValveLink cannot connect: Check HART loop resistance, power supply, and communication settings.

• Unstable output: Review supply pressure stability, actuator sizing, and tuning parameters.

Replacement Models

The Fisher DVC6200 is part of the FIELDVUE digital valve positioner family. Related models include DVC6000, DVC2000, DVC6200f, DVC6200p, DVC6200 SIS, and DVC6200 HC. For cross-vendor alternatives, verify input signal, communication protocol, actuator mounting, and certification requirements before ordering.
