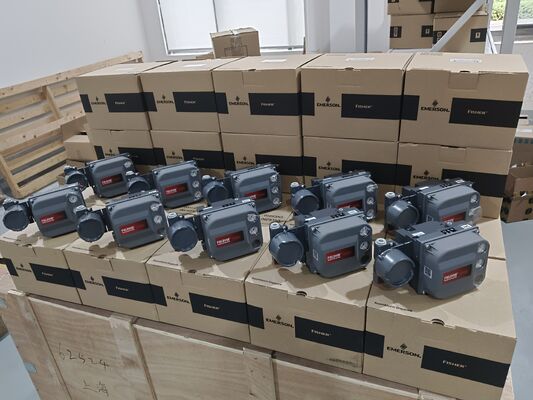

Precise Control Aluminum Alloy Pneumatic Digital Valve Positioner and Digital Valve Controller Package

Product Overview

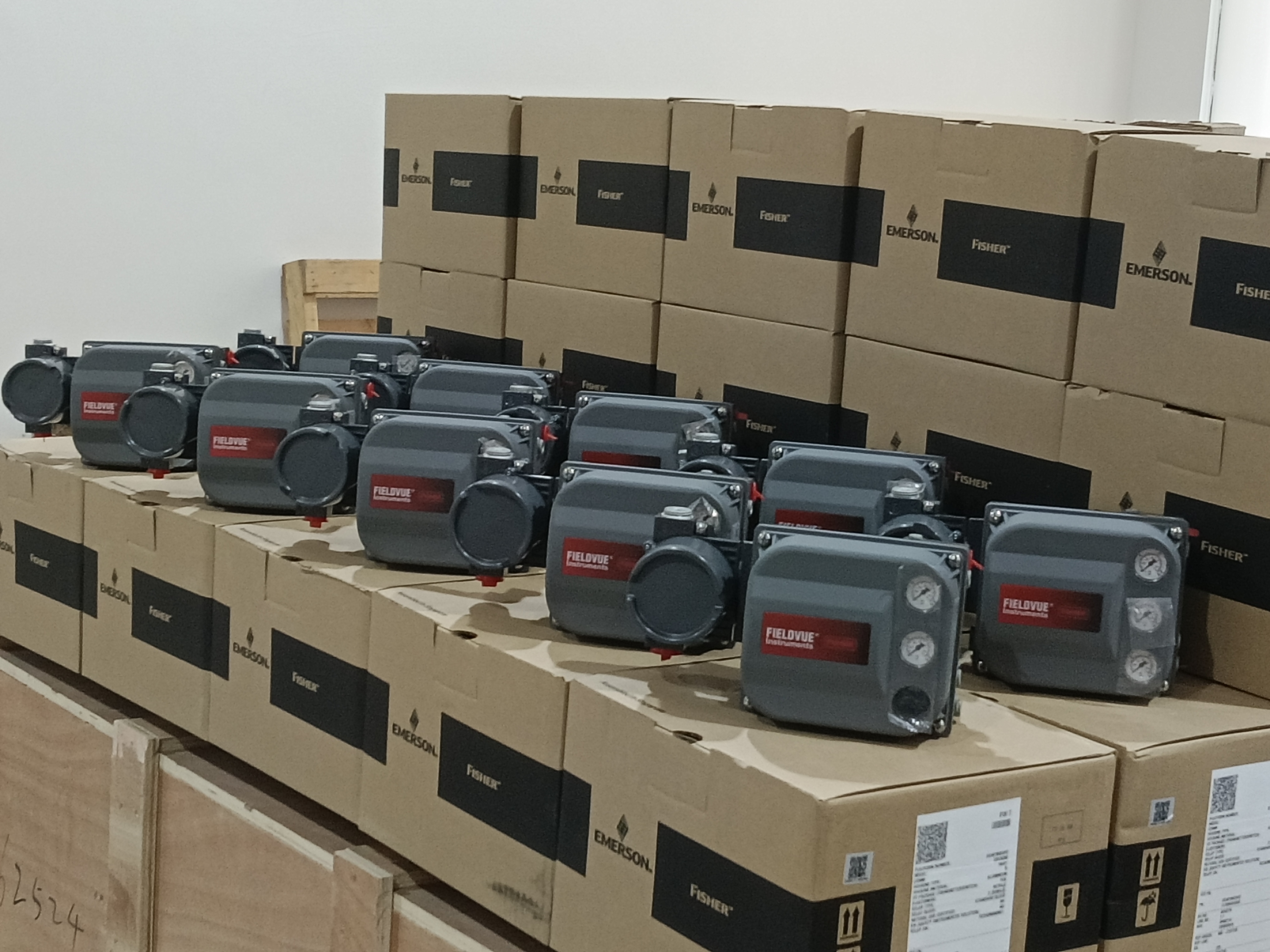

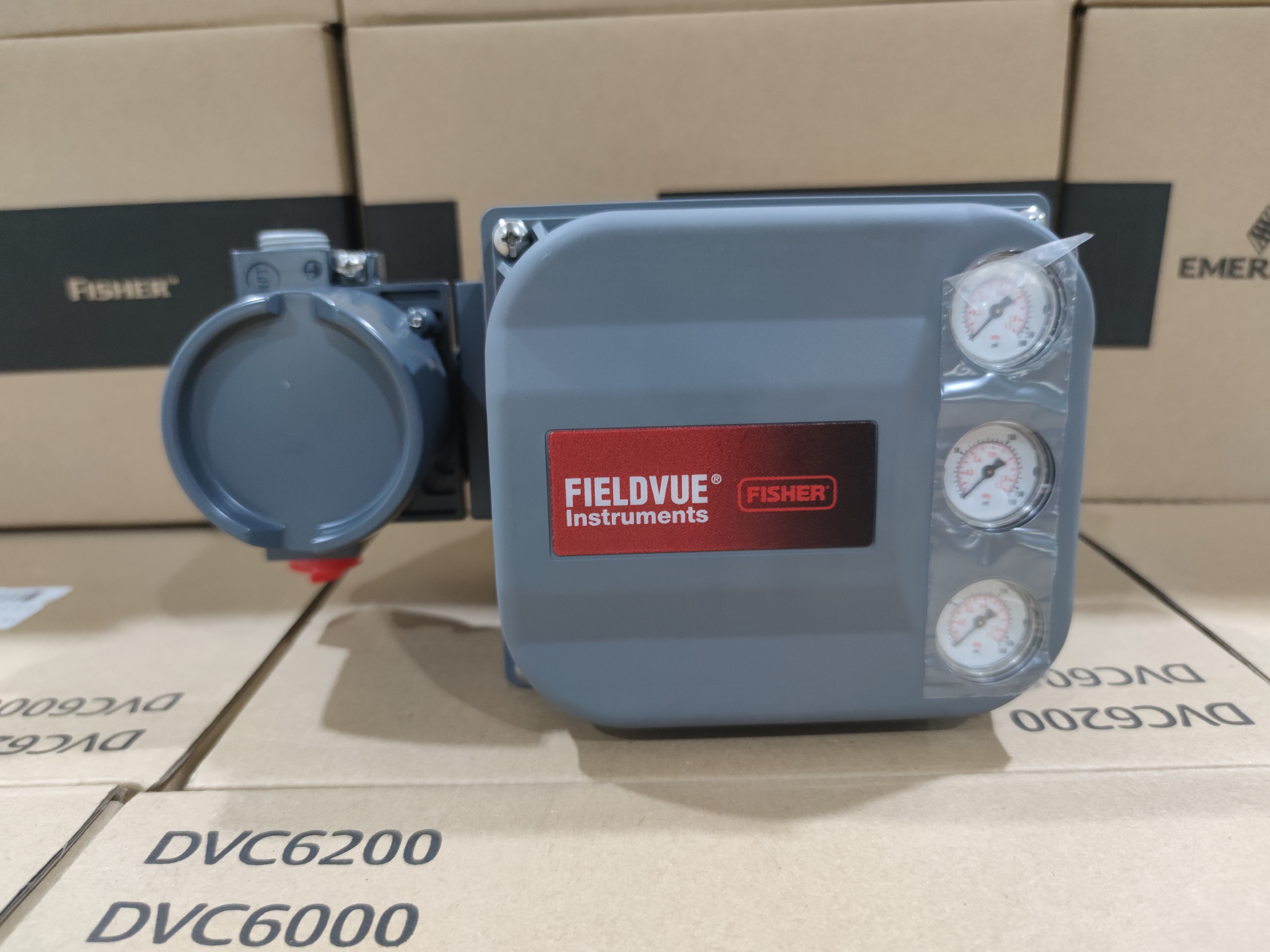

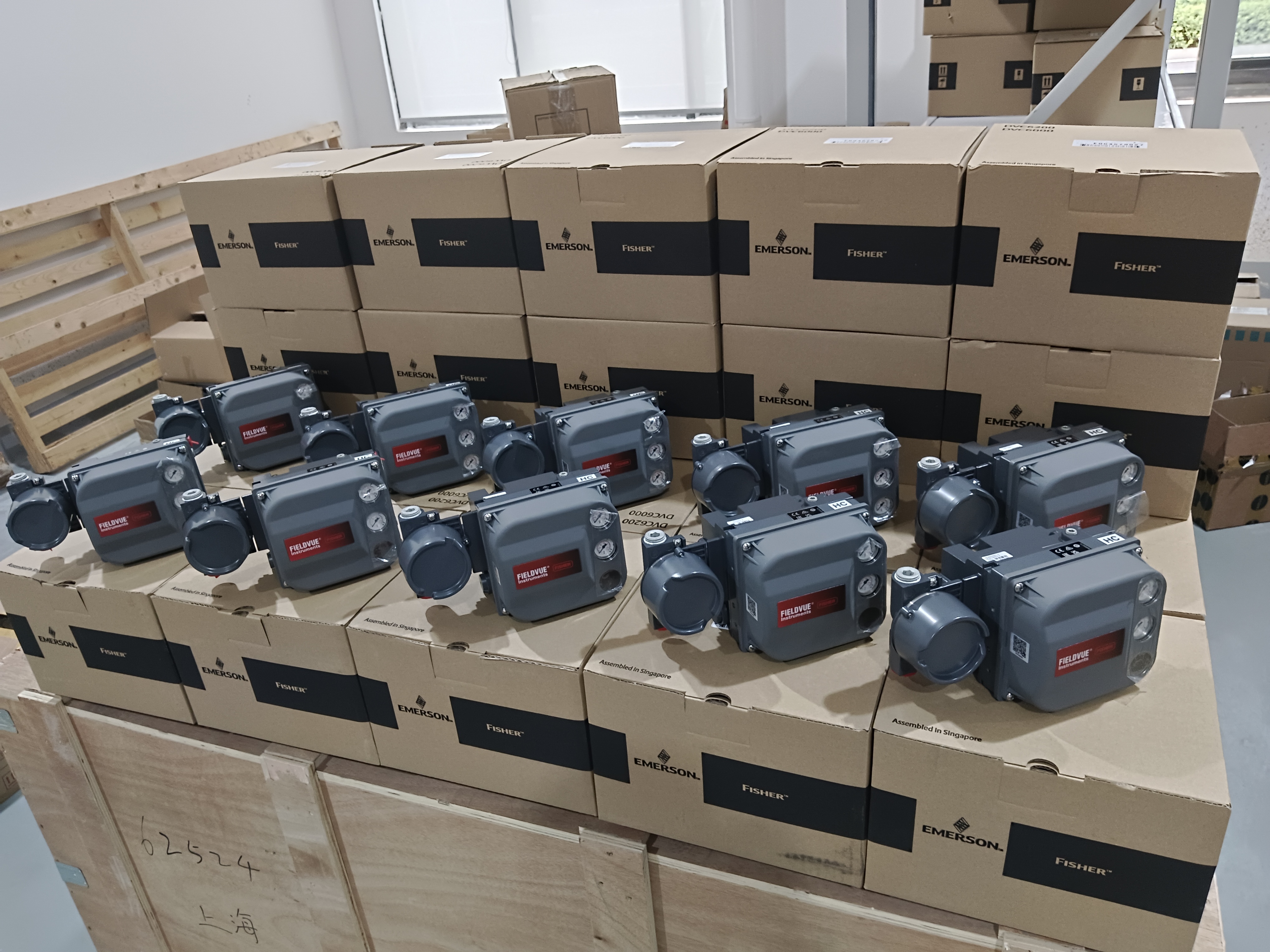

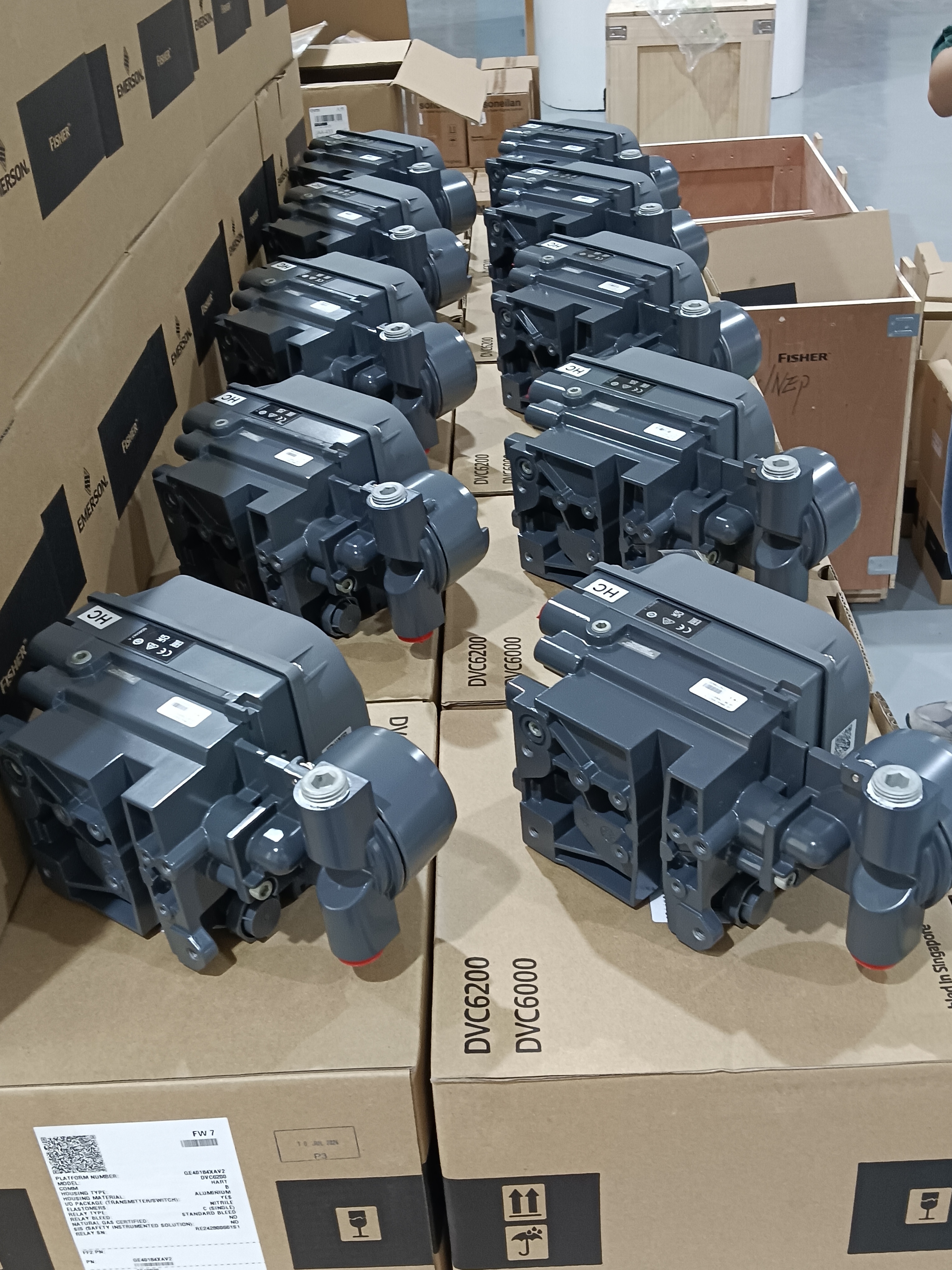

The Fisher DVC6200 Digital Valve Positioner Package is supplied as a complete valve control assembly rather than as a standalone instrument. It combines the FIELDVUE DVC6200 digital valve controller, mounting bracket, linkage-less feedback magnet array, pressure gauges, and pneumatic tubing into one factory-assembled and pre-tested package. Because the positioner and its mounting interface are supplied from a single source, customers avoid the task of separately matching brackets, feedback components, and tubing from multiple vendors, which significantly shortens on-site commissioning time. The instrument accepts a two-wire 4–20 mA DC analog input signal and communicates over HART 5 or HART 7, converting the electrical command into a precise pneumatic output to the actuator. Position feedback is captured through a patented linkage-less, non-contact Hall-effect sensor system that eliminates physical wear between the valve stem and the instrument. An optional integral 4–20 mA position transmitter provides isolated feedback to the control system, and an optional integral switch can be configured for alarm or trip functions. Built-in diagnostic capabilities include valve signature analysis, partial stroke testing, travel deviation alerts, cycle counting, and supply pressure monitoring, all accessible through HART communication or ValveLink software. Control modes cover auto-calibration, split-ranging, fail-safe, and fail-freeze operation.

The enclosure is rated IP66 and Type 4X, making it suitable for washdown areas, outdoor installations, and corrosive industrial atmospheres. The standard operating temperature range is –40°C to +85°C, with an extreme temperature option extending the low end to –52°C using fluorosilicone elastomers. Supply air pressure operates between a minimum of 0.3 bar above maximum actuator requirements and a maximum of 10.0 bar (145 psig), accommodating the majority of pneumatic actuator requirements. The DVC6200 communicates via HART 5 or HART 7, with WirelessHART, FOUNDATION Fieldbus, and PROFIBUS PA available in the broader DVC6200 series. The instrument carries ATEX, IECEx, FM, CSA, and many other international certifications for use in hazardous areas, and is SIL 3 capable when configured as part of a safety instrumented system. Typical application industries include oil and gas production, refining, petrochemical processing, chemical manufacturing, power generation, water and wastewater treatment, pharmaceutical production, and pulp and paper. The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing, reducing maintenance downtime and extending instrument service life.

Technical Specifications

Application Industry

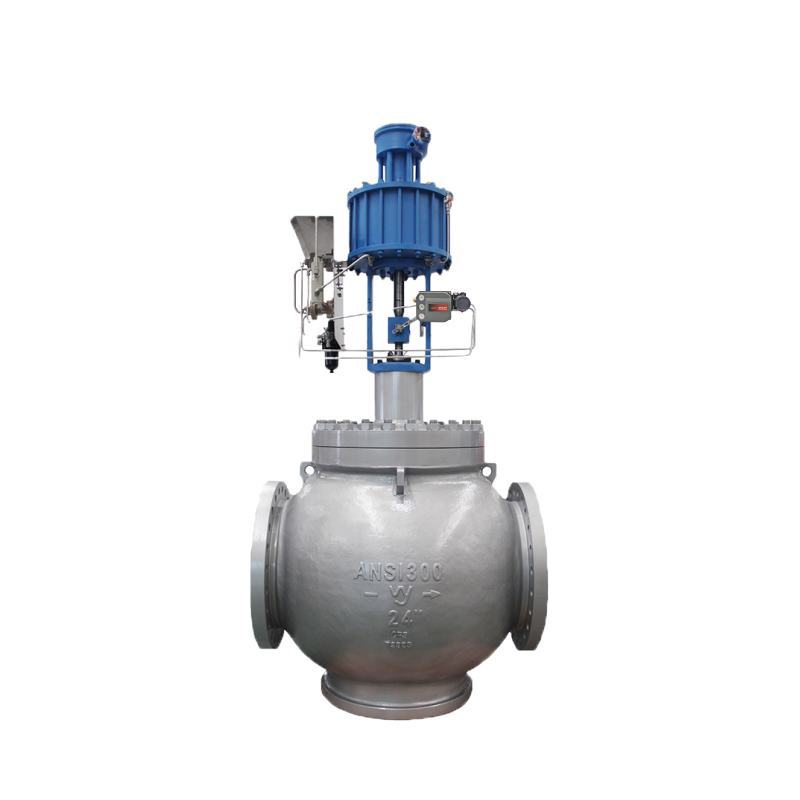

The DVC6200 serves oil and gas production, petroleum refining, petrochemical processing, chemical manufacturing, electric power generation, water and wastewater treatment, pharmaceutical production, pulp and paper, and food and beverage processing. It controls globe valves, butterfly valves, ball valves, and eccentric plug valves through pneumatic actuators in flow, pressure, temperature, and level control loops. Typical media include steam, natural gas, crude oil, hydrocarbons, chemical reagents, acids, caustic solutions, and clean process water. Operating conditions often involve high pressure, vibration, outdoor humidity, corrosive atmospheres, and hazardous area classifications. The diagnostic and communication capabilities support both continuous process control and safety-related partial stroke testing programs.

Common Problems

1. Valve does not move when set point changes — Check the 4–20 mA input signal at the instrument terminals, verify pneumatic connections and supply pressure, and confirm the instrument is not in manual or out-of-service mode.

2. Travel deviation alert remains active — Inspect for mechanical binding in the valve, actuator air leakage, incorrect actuator sizing, or valve stem friction that prevents the valve from reaching the commanded position.

3. Auto-calibration fails to complete — Ensure sufficient input signal is available, verify that the valve has adequate travel and no mechanical binding, and check that supply air pressure is stable and within specification.

4. Communication failure over HART — Verify loop resistance, shield grounding, device address, and that the minimum terminal voltage of 10 VDC is available for HART communication.

5. Erratic or negative position feedback — Check the magnet array alignment, mounting bracket position, and travel mapping configuration; verify which HART variable is being reported to the control system.

6. Supply pressure alert active — Confirm that the air supply has not dropped below the configured alert point, check for leaks in the pneumatic path, and inspect the filter regulator for blockage.

7. Valve hunts or oscillates around set point — Review PID tuning parameters, actuator spring range, feedback linkage integrity, and supply air regulator stability.

8. Excessive air consumption — Inspect the relay and spool valve for contamination, check for internal leakage, and verify air quality meets ISA 7.0.01 standards.

9. Moisture inside the terminal box — Examine cover gasket condition, cable gland seals, conduit entries, and ensure the enclosure cover is properly torqued.

10. Instrument will not communicate — Check wiring polarity, terminal tightness, loop power, and whether the DIP switch configuration matches the selected communication protocol.

Replacement Models

Direct replacement and same-series models include Fisher DVC6200 SIS, Fisher DVC6200 HC, Fisher DVC6200f (FOUNDATION Fieldbus), Fisher DVC6200p (PROFIBUS PA), Fisher DVC2000, Fisher DVC6000, and Fisher DVC6010. Cross-vendor alternatives often considered include Neles ND9000 series (ND9103, ND9106, ND9203, ND9206), Samson TROVIS 3730 series (3730-1/2/3/4, 3725, 4763), Masoneilan SVI II series (SVI2, SVI3, SVI1000), and Flowserve Logix 3200MD/520MD. Before selecting a replacement, confirm mounting standard, linear or rotary travel range, input signal, communication protocol, supply air pressure, hazardous area certification, and feedback options.
