HART 5 or HART 7 Communication Digital Valve Positioner Factory Preassembled and Pre-tested Package with Linkage-less Feedback System Valve Controller

Product Overview

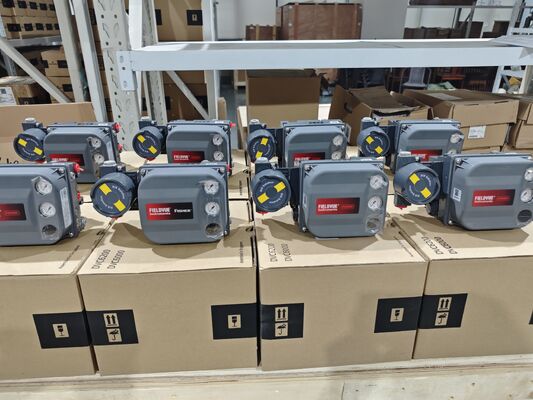

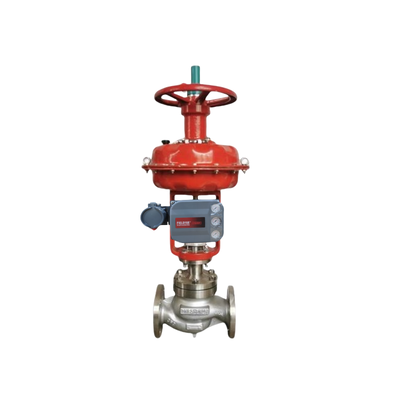

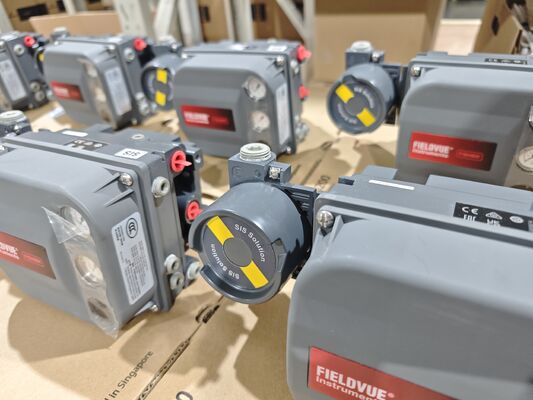

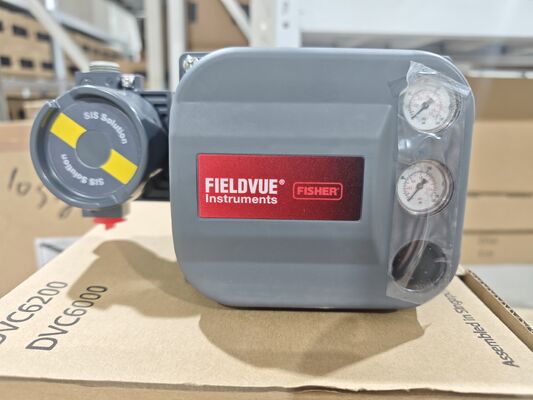

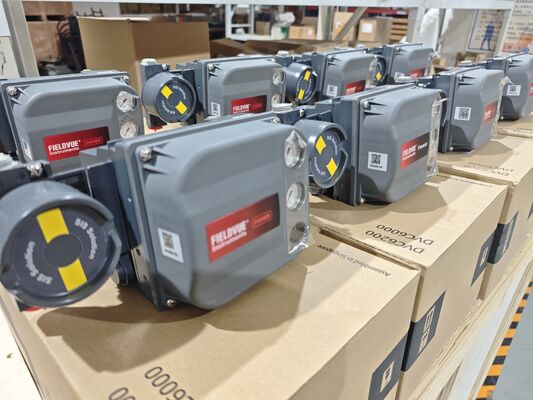

The Fisher DVC6200 Digital Valve Positioner Package is a fully factory-preassembled and pre-tested solution designed for accurate valve control in demanding process industries. It brings together the digital valve positioner, mounting hardware, terminal connections, and calibration-verified settings into one complete package, which dramatically reduces on-site commissioning time and removes the need to separately match positioner, actuator, and feedback components. The DVC6200 receives a 4-20 mA DC analog input signal and converts it into a pneumatic output pressure to drive the valve actuator with high precision. It uses HART 5 or HART 7 communication, allowing valve condition data to be accessed remotely from any point along the loop. The high-performance linkage-less feedback system eliminates physical contact between the valve stem and the positioner, so there are no wearing parts and the cycle life of the assembly is maximized. The instrument supports both throttling control and on/off control, and it is compatible with sliding-stem linear actuators from 6.35 mm to 606 mm travel as well as quarter-turn rotary actuators from 45° to 180°. Position feedback is available through an integral 4-20 mA transmitter or a discrete switch, depending on the configuration ordered. Because the package arrives factory calibrated and tested, users receive a coordinated solution that reduces wiring errors and shortens startup time.

The enclosure is engineered for harsh industrial environments, carrying Type 4X and IP66 protection that resists dust, water ingress, and corrosive atmospheres. The standard ambient temperature range is -40 to +85°C, and an extreme temperature option extends operation down to -52°C when fluorosilicone elastomers are specified. Supply pressure can range from a recommended minimum of 0.3 bar above the actuator requirement up to a maximum of 10.0 bar (145 psig), and steady-state air consumption with the low-bleed relay is less than 0.056 Nm³/hr at 1.4 bar supply pressure. The DVC6200 holds a comprehensive certification portfolio, including CSA, FM, ATEX, IECEx, and marine approvals from Lloyd's Register, Bureau Veritas, DNV, and ABS. It supports air, natural gas, and nitrogen as supply media, and it is widely used in oil and gas, chemical processing, power generation, water treatment, pulp and paper, mining, food and beverage, and pharmaceutical industries. The combination of digital communication, self-diagnostic capability, sealed construction, and flexible mounting makes this package a dependable choice for long-term valve automation and low-maintenance plant operation.

Technical Specifications

Application Industry

Oil and gas processing

Chemical and petrochemical plants

Power generation and combined cycle plants

Water and wastewater treatment

Pulp and paper mills

Mining and metals processing

Food and beverage production

Pharmaceutical manufacturing

These industries demand precise valve control, reliable remote communication, and online diagnostic capability. The DVC6200 is especially suited for liquid ammonia service, generator lubricating oil cooling water systems, and gas processing facilities where valve reliability directly affects production uptime. The stainless steel housing option withstands corrosive atmospheres commonly found in chemical plants, pulp and paper mills, and offshore oil and gas installations. With HART communication, operators can access valve condition data without entering hazardous areas, improving safety and reducing exposure to dangerous environments.

Common Problems

Instrument will not communicate – check power supply at the device terminals and verify that the minimum voltage requirement of 9.5 VDC for analog control or 10 VDC for HART communication is met.

Valve does not stroke from 0 to 100% with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct output block (AO or DO) is configured in Feature Select.

Transducer block setpoint not updating from AO block – change transducer block mode to Auto and confirm that AO block is active.

Analog input reading does not match actual current – check terminal voltage, wiring polarity, and loop resistance.

Valve stuck or solenoid stuck – run ValveLink diagnostic tests to identify valve assembly friction, broken actuator spring, or broken valve/actuator shaft.

Low or high air supply or pressure droop – inspect air supply regulator, check for external air leaks in actuator diaphragm or tubing, and verify supply pressure is at least 0.3 bar above actuator maximum requirement.

Excessive valve assembly friction – perform diagnostic tests to quantify friction and compare against baseline; inspect packing and stem condition.

Position feedback incorrect – recalibrate the integral 4-20 mA position transmitter or verify limit switch actuation.

Moisture ingress into terminal box – inspect enclosure seals, cable glands, and cover bolts; verify IP66 integrity.

Communication dropout on HART loop – check loop wiring, shielding, termination, and HART device address.

Replacement Models

Fisher DVC6200 HC (High Capacity)

Fisher DVC6200 SIS (Safety Instrumented System)

Fisher DVC6200p (PROFIBUS PA)

Fisher DVC6200f (FOUNDATION Fieldbus)

Fisher DVC2000 Digital Valve Positioner

Neles ND9000 Series (ND9103 / ND9106 / ND9203 / ND9206)

Samson TROVIS 3730 Series (3730-1/2/3/4)

Samson 3725 / 4763

Masoneilan SVI II Series (SVI2 / SVI3 / SVI1000)

Flowserve Logix 520MD / 3200MD

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The DVC6200 is designed for retrofit-friendly installation on most Fisher and non-Fisher pneumatic actuators, and the modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
