HART 7 Digital Valve Positioner Factory Preassembled Package with Linkage-Less Feedback for Valve Automation

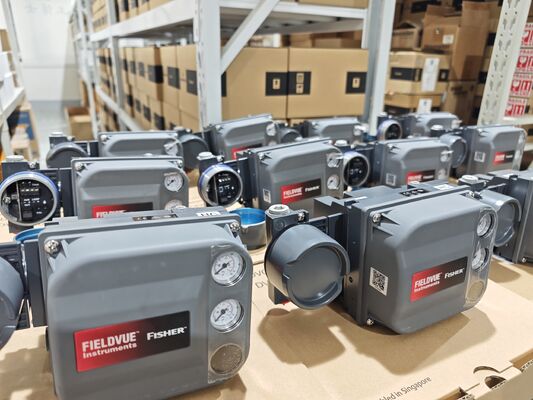

Product Overview

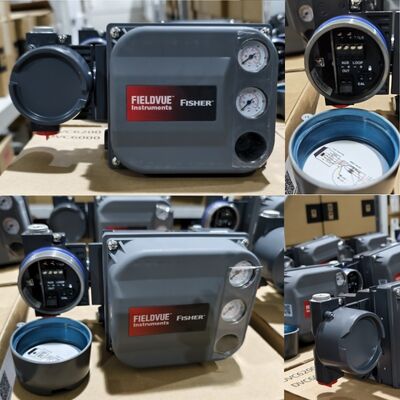

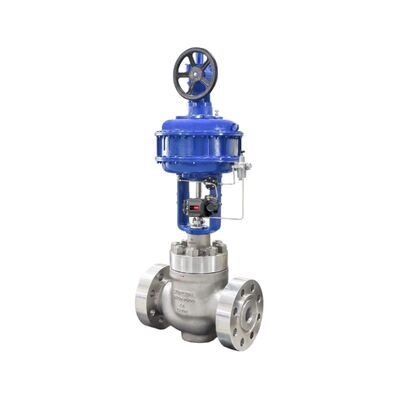

The Fisher DVC6200 Digital Valve Positioner Package is a fully factory-preassembled and pre-tested solution that combines the digital valve positioner, mounting hardware, terminal connections, and calibration-verified settings into a single coordinated unit. This single-source packaging approach removes the burden of separately selecting and matching positioners, actuators, and feedback accessories, which substantially reduces on-site commissioning time and wiring errors. The DVC6200 operates as a HART communicating instrument that converts a two-wire 4-20 mA control signal into a pneumatic output to the actuator, delivering precise valve positioning with fast response to both large step changes and small setpoint adjustments. Its high-performance, linkage-less feedback system eliminates all physical contact between the valve stem and the positioner, so there are no wearing parts and the cycle life of the assembly is maximized. The instrument supports throttling control and on/off control and is compatible with sliding-stem linear actuators from 6.35 mm to 606 mm travel as well as quarter-turn rotary actuators from 45° to 180°. Position feedback can be supplied through an integral 4-20 mA position transmitter or an isolated switch, depending on the configuration ordered. Because the package arrives factory calibrated and tested, users receive a coordinated positioner solution that shortens startup time and improves operational confidence.

The positioner housing is engineered for demanding industrial environments, with Type 4X and IP66 protection that resists dust, water ingress, and corrosive atmospheres. The standard ambient temperature range covers -40 to +85°C, and an extreme temperature option extends operation down to -52°C when fluorosilicone elastomers are specified. Supply pressure can range from a recommended minimum of 0.3 bar above the actuator requirement up to a maximum of 9.9 bar (145 psig), and steady-state air consumption with the low-bleed relay is less than 0.056 Nm³/hr at 1.4 bar supply pressure. The DVC6200 carries a comprehensive certification portfolio including CSA, FM, ATEX, IECEx, and marine approvals from Lloyd's Register, Bureau Veritas, DNV, and ABS. It supports air, natural gas, and nitrogen as supply media and is widely deployed in oil and gas, chemical processing, power generation, water treatment, pulp and paper, mining, food and beverage, and pharmaceutical industries. The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing, which simplifies maintenance and reduces process downtime. The combination of digital communication, self-diagnostic capability, sealed construction, and flexible mounting makes this package a dependable choice for long-term valve automation and low-maintenance plant operation.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation and combined cycle plants

4. Water and wastewater treatment

5. Pulp and paper mills

6. Mining and metals processing

7. Food and beverage production

8. Pharmaceutical manufacturing

These industries require precise valve positioning, reliable remote communication, and online diagnostic capability to maintain production efficiency and safety. The DVC6200 is especially suited for liquid ammonia service, generator lubricating oil cooling water systems, and gas processing facilities where valve reliability directly affects production uptime. The stainless steel housing option withstands the corrosive atmospheres commonly found in chemical plants, pulp and paper mills, and offshore oil and gas installations. With HART communication, operators can access valve condition data without entering hazardous areas, improving safety and reducing exposure to dangerous environments.

Common Problems

1. Instrument will not communicate – check power supply at the device terminals and verify that the minimum voltage requirement of 9.5 VDC for analog control or 10 VDC for HART communication is met.

2. Valve does not stroke from 0 to 100% with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct output block (AO or DO) is configured in Feature Select.

3. Transducer block setpoint not updating from AO block – change transducer block mode to Auto and confirm that AO block is active.

4. Analog input reading does not match actual current – check terminal voltage, wiring polarity, and loop resistance.

5. Valve stuck or solenoid stuck – run ValveLink diagnostic tests to identify valve assembly friction, broken actuator spring, or broken valve/actuator shaft.

6. Low or high air supply or pressure droop – inspect air supply regulator, check for external air leaks in actuator diaphragm or tubing, and verify supply pressure is at least 0.3 bar above actuator maximum requirement.

7. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

8. Position feedback incorrect – recalibrate the integral 4-20 mA position transmitter or verify limit switch actuation.

9. Moisture ingress into terminal box – inspect enclosure seals, cable glands, and cover bolts; verify IP66 integrity.

10. Communication dropout on HART loop – check loop wiring, shielding, termination, and HART device address.

Replacement Models

1. Fisher DVC6200 HC (High Capacity)

2. Fisher DVC6200 SIS (Safety Instrumented System)

3. Fisher DVC6200p (PROFIBUS PA)

4. Fisher DVC6200f (FOUNDATION Fieldbus)

5. Fisher DVC2000 Digital Valve Positioner

6. Neles ND9000 Series (ND9103 / ND9106 / ND9203 / ND9206)

7. Samson TROVIS 3730 Series (3730-1/2/3/4)

8. Samson 3725 / 4763

9. Masoneilan SVI II Series (SVI2 / SVI3 / SVI1000)

10. Flowserve Logix 520MD / 3200MD

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The DVC6200 is designed for retrofit-friendly installation on most Fisher and non-Fisher pneumatic actuators, and the modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
