Compact HART Communication Digital Valve Positioner with Local LCD Interface for Valve Positioning

Product Overview

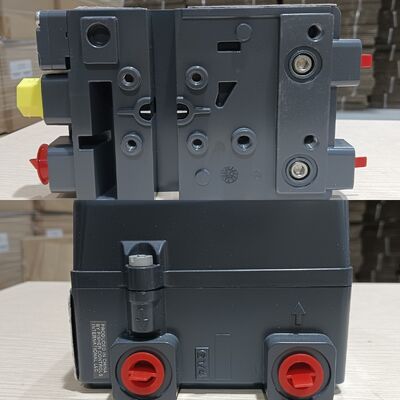

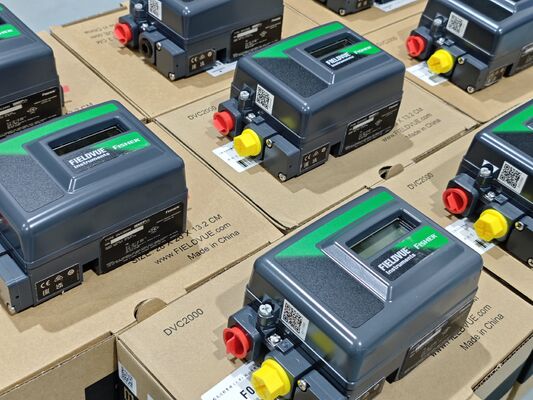

The Fisher DVC2000 Digital Valve Positioner is a compact, microprocessor-based current-to-pneumatic instrument engineered to deliver accurate and repeatable valve positioning in process control loops. It receives a 4-20 mA DC input signal and converts it into a pneumatic output pressure that drives the control valve actuator, supporting both throttling control and on/off control modes. The instrument communicates via HART protocol, enabling critical information such as alerts, alarms, and diagnostic data to be integrated with the control system for remote monitoring from the control room. Its high-performance, linkage-less feedback system eliminates physical contact between the valve stem and the positioner, which reduces the number of mounting parts and simplifies installation on any actuator with NAMUR, IEC 60534-6-1, or IEC 60534-6-2 mounting capabilities. The two-stage positioner design provides a mechanical platform that enables responsiveness to small input changes, resulting in tighter process control. A local user interface with a liquid crystal display and four pushbuttons allows configuration, calibration, and tuning directly at the device without requiring external tools. An optional I/O package includes two integral limit switches and a stem position transmitter that provides a 4-20 mA signal for position verification. Because the instrument supports automatic calibration and tuning routines, startup is fast and consistent across different actuator types.

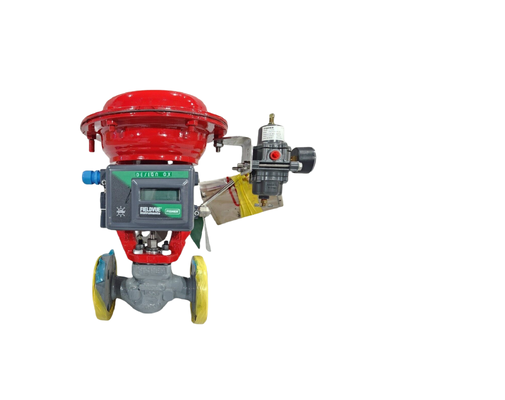

The enclosure is designed for demanding industrial environments, with Type 4X and IP66 protection that resists dust, water ingress, and corrosive atmospheres. The maximum outlet pressure is 101 psig (7 bar), and the supply medium is air or non-corrosive gas. The DVC2000 carries a comprehensive certification portfolio including CSA, FM, ATEX, IECEx, CUTR, PED, Peso, KGS, INMETRO, NEPSI, and ANZEx, supporting use in hazardous and ordinary locations. The positioner mounts directly to Fisher GX, 657, and 667 size i actuators, and when fitted to the Fisher CX valve, it mounts directly to an interface pad on the actuator yoke leg, eliminating the need for mounting brackets and external tubing in air-to-open configurations. Typical industries include oil and gas, chemical processing, power and heating, and pulp and paper. Using ValveLink software, performance diagnostics tests can be run automatically on-line without interrupting the process, showing problems, possible causes, and recommended actions. The combination of compact size, local interface, digital communication, and self-diagnostic capability makes the DVC2000 a dependable choice for valve automation and low-maintenance plant operation.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation and heating systems

4. Pulp and paper mills

5. Water and wastewater treatment

6. Food and beverage production

7. Pharmaceutical manufacturing

8. Mining and metals processing

These industries require accurate valve positioning, reliable communication, and online diagnostic capability to maintain production efficiency and safety. The DVC2000 is particularly suited for applications where compact size and simple local configuration are important, such as skid-mounted packages and retrofits of older analog instruments. The linkage-less feedback system reduces mounting complexity and is ideal for Fisher GX, 657, and 667 size i actuators. With HART communication, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and reducing exposure to dangerous environments.

Common Problems

1. Instrument will not communicate – check power supply at the device terminals and verify that minimum voltage requirements of 8.5 VDC for analog control or 9.0 VDC for HART communication are met.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument.

3. Local display is blank – check power supply and verify that the terminal connections are secure.

4. Autotuner fails to complete – check actuator travel, supply pressure, and that the linkage-less feedback is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – recalibrate the optional integral stem position transmitter or verify limit switch actuation points.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean.

7. Valve stuck or solenoid stuck – run ValveLink diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify Type 4X / IP66 integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address.

Replacement Models

1. Fisher DVC6200 Digital Valve Positioner

2. Fisher DVC6200 HC (High Capacity)

3. Fisher DVC6200 SIS (Safety Instrumented System)

4. Fisher DVC6200p (PROFIBUS PA)

5. Fisher DVC6200f (FOUNDATION Fieldbus)

6. Neles ND9000 Series (ND9103 / ND9106 / ND9203 / ND9206)

7. Samson TROVIS 3730 Series (3730-1/2/3/4)

8. Samson 3725 / 4763

9. Masoneilan SVI II Series (SVI2 / SVI3 / SVI1000)

10. Flowserve Logix 520MD / 3200MD

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The DVC2000 is designed for compact installations and direct mounting on Fisher GX, 657, and 667 size i actuators, and it can serve as a direct replacement for older analog instruments.
