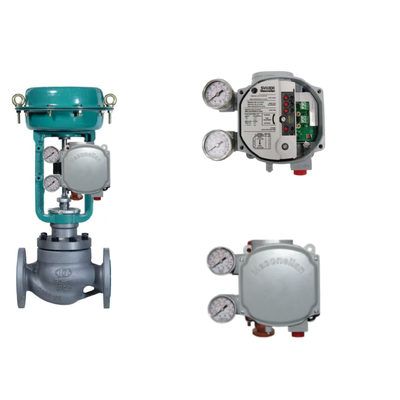

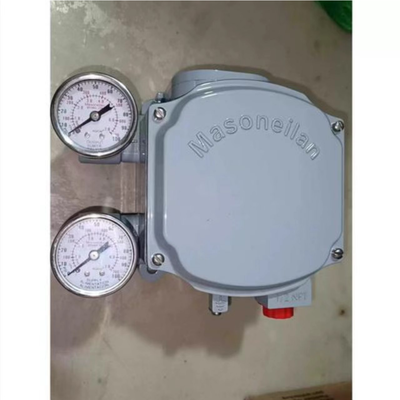

Masoneilan SVI1000 Magnetic Valve Positioner with Local Interface and Aluminum Alloy Housing for Valve Control

Product Overview

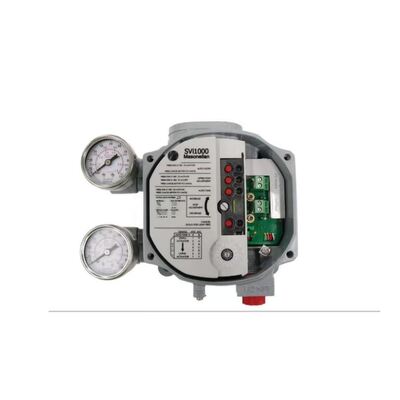

The Masoneilan SVI1000 Digital Valve Positioner is a compact, loop-powered, HART-communicating instrument designed for single-acting pneumatic control valves. It receives a 4-20 mA DC control signal and converts it into a proportional pneumatic output to drive the valve actuator, delivering accurate and responsive valve positioning for continuous and batch process control. The SVI1000 uses a proven non-contact magnetic position sensing technology that eliminates mechanical wear and simplifies installation on any actuator with NAMUR, IEC 60534-6-1, or IEC 60534-6-2 mounting capabilities. Its user-friendly local interface with "one button = one function" operation allows quick setup and calibration, with most control valves being ready for operation in less than five minutes. The instrument supports HART revision 5 or revision 7 communication, field selectable, enabling remote access to valve condition data and diagnostic alerts. Built-in solid-state switches provide valve position feedback without additional hardware. The automatic tuning function determines the optimal valve position control parameters, ensuring consistent performance across different actuator types. Because the SVI1000 is loop-powered with no external power required, installation is simplified and wiring costs are reduced.

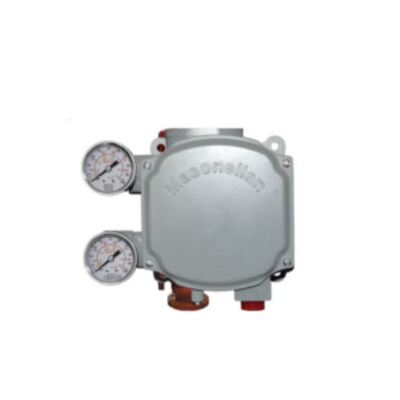

The enclosure is constructed from low-copper aluminum with a gray polyurethane coating over an epoxy primer, providing IP66 and NEMA 4X protection against dust, water ingress, and corrosive atmospheres. The operating temperature range is -40 to +85°C (-40 to +185°F), with 10% to 95% relative humidity, non-condensing. The supply pressure range is 20 to 100 psi (1.4 to 7 bar), and the air supply must be dry, 5-micron filtered air per ISA S7.3. The SVI1000 carries a comprehensive certification portfolio including ATEX, FM, IEC, CSA, and CE, with intrinsically safe and non-incendive (energy limited) approvals for hazardous area use. It is widely deployed in power generation, refining, petrochemicals, midstream and upstream oil and gas, water treatment, and general industrial process control. The non-contact travel sensor allows for accurate positioning and maintenance-free operation, and the positioner can be integrated with leading control systems via HART eDDL and FDT-DTM technologies. The combination of compact size, local configuration, digital communication, and low maintenance requirements makes the SVI1000 a practical and dependable choice for valve automation and plant efficiency.

Technical Specifications

Application Industry

1. Power generation

2. Oil and gas refining

3. Petrochemical processing

4. Midstream and upstream oil and gas

5. Water and wastewater treatment

6. Chemical processing

7. Pulp and paper mills

8. General industrial process control

These industries require accurate valve positioning, reliable communication, and low-maintenance operation to maintain production efficiency and safety. The SVI1000 is particularly suited for applications where compact size, simple local configuration, and fast commissioning are important, such as skid-mounted packages and retrofits of older electro-pneumatic positioners. The non-contact magnetic feedback system reduces mounting complexity and is ideal for single-acting pneumatic actuators with NAMUR mounting. With HART communication, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and reducing exposure to dangerous environments.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify that the source can supply 20 mA, and confirm that the terminal voltage is at least 9 VDC at 20 mA.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument.

3. Local LED display not functioning – check power supply and verify that the terminal connections are secure.

4. Auto tune fails to complete – check actuator travel, supply pressure, and that the magnetic feedback is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – verify the solid-state switch actuation points and recalibrate the positioner using the local interface.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean.

7. Valve stuck or solenoid stuck – run diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address.

Replacement Models

1. Masoneilan SVI II AP

2. Masoneilan SVI3

3. Masoneilan SVI FF (FOUNDATION Fieldbus)

4. Fisher DVC2000

5. Fisher DVC6200

6. Neles ND9000 Series

7. Samson TROVIS 3730 Series

8. Flowserve Logix 520MD

9. Foxboro SRD911

10. Rotork YTC Series

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The SVI1000 is designed for single-acting pneumatic actuators and can serve as a direct replacement for older electro-pneumatic positioners.
