HART Digital Valve Positioner for Pneumatic Valve Control - Electro-Pneumatic Valve Positioner

Product Overview

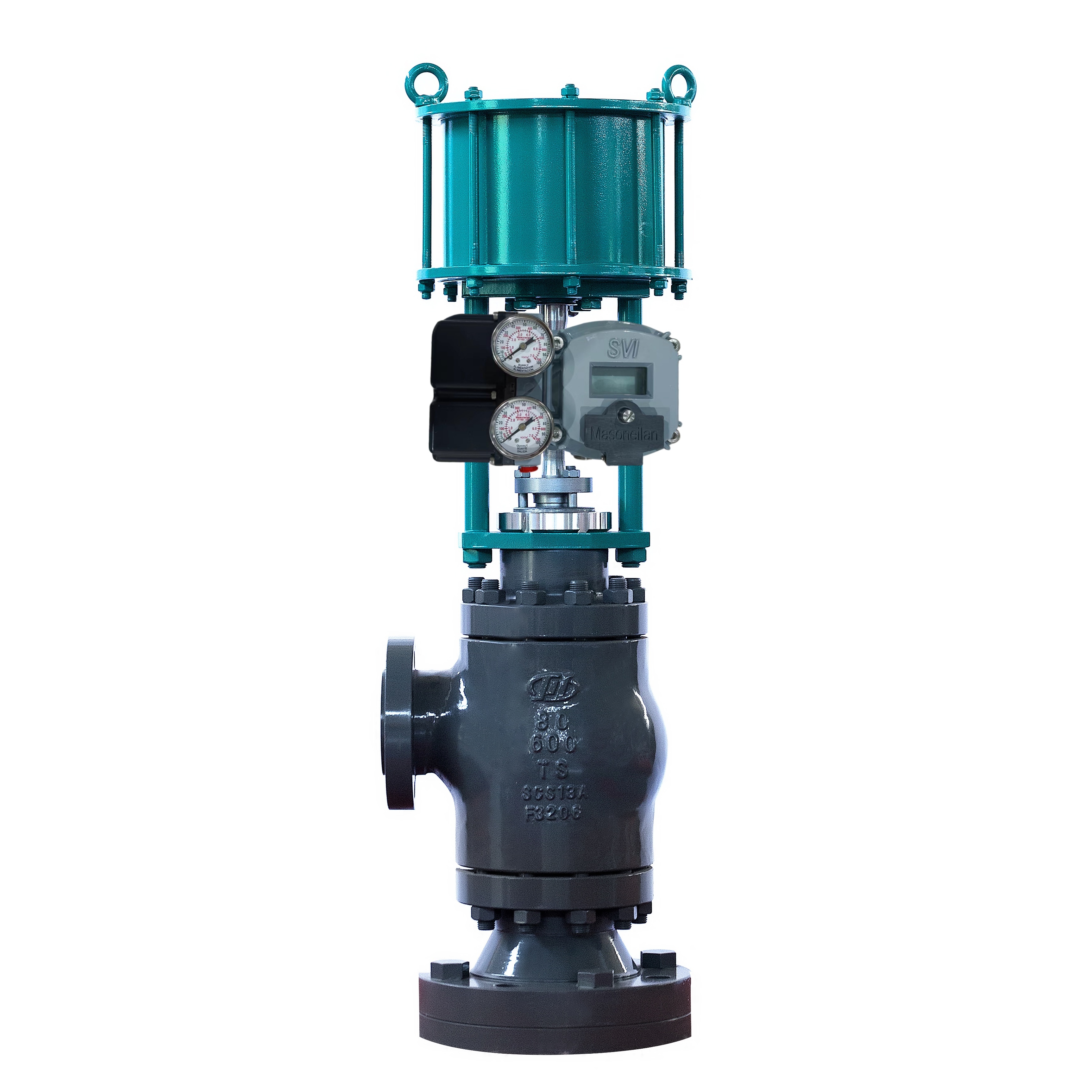

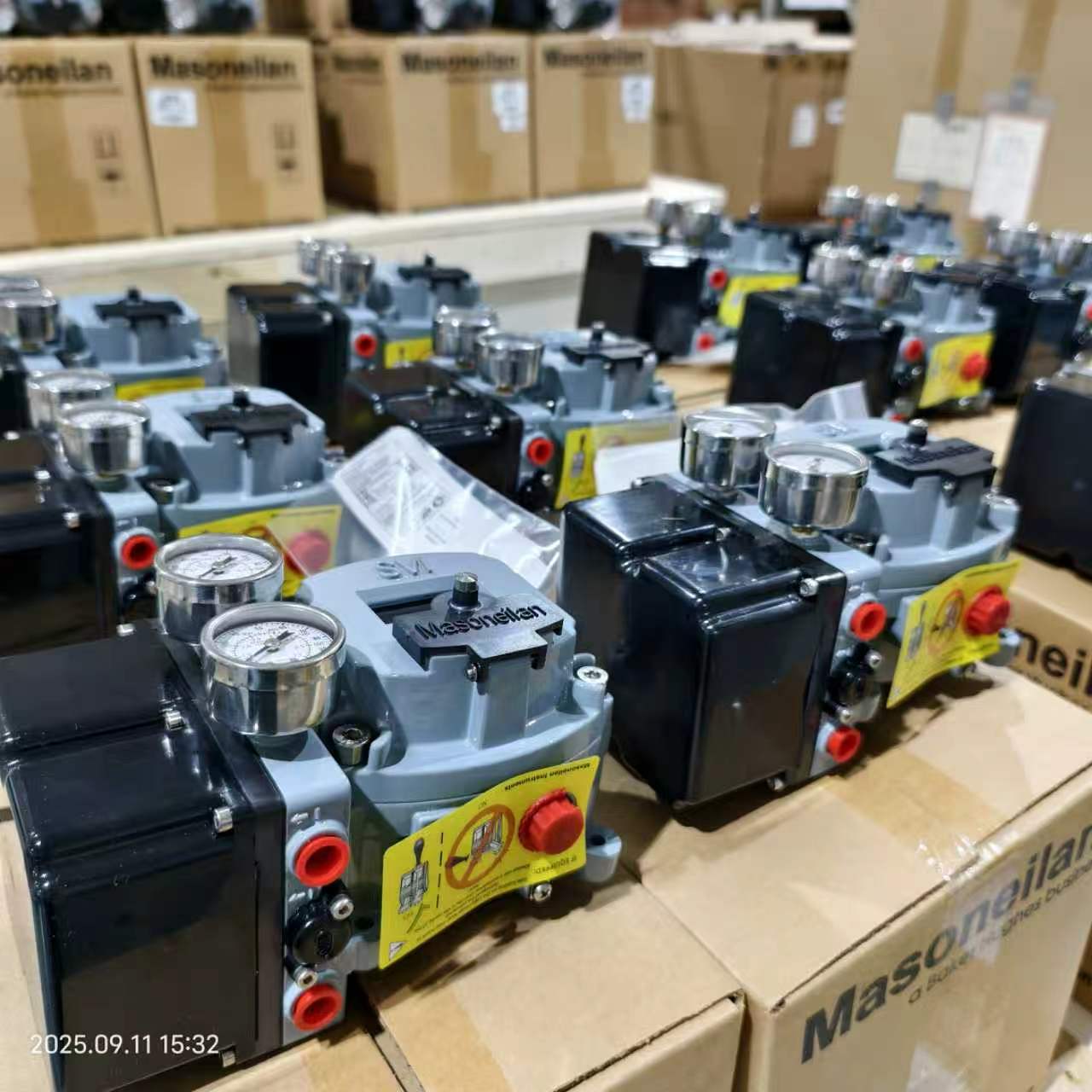

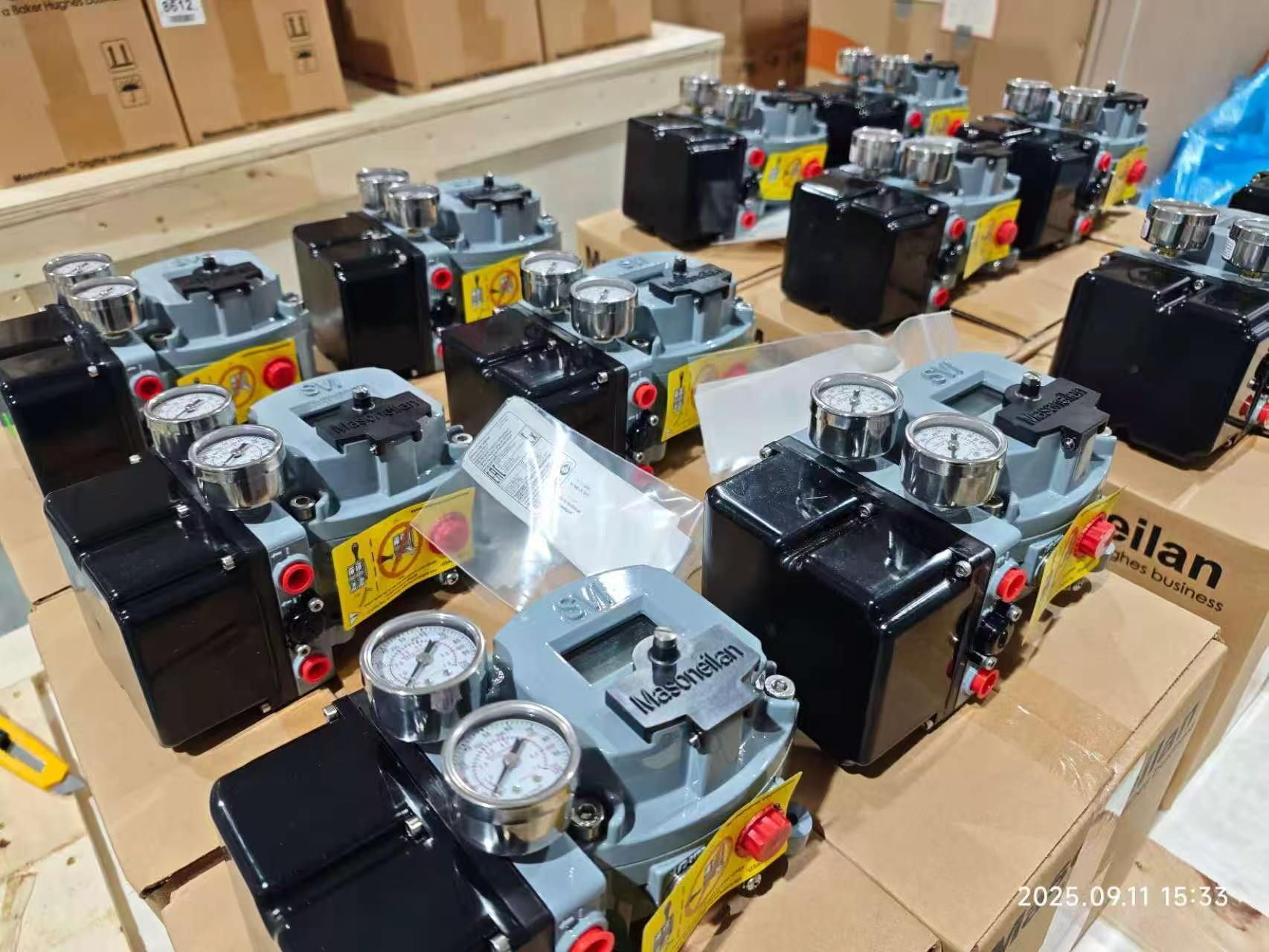

The Masoneilan SVI II AP (Advanced Performance) Digital Valve Positioner is a 32-bit microprocessor-based instrument designed for precise control of single-acting and double-acting pneumatic actuators. It receives a two-wire 4-20 mA control signal and delivers a proportional pneumatic output to position the valve, supporting accurate and responsive control for both linear and rotary applications. The SVI II AP uses proven non-contact position sensing technology that eliminates mechanical wear and simplifies installation on any actuator with NAMUR, IEC 60534-6-1, or IEC 60534-6-2 mounting capabilities. Its local LCD and pushbuttons allow full configuration, calibration, and tuning directly at the device, and they are operable in all certified hazardous environments. The instrument supports HART 5 or HART 7 communication over the 4-20 mA loop, enabling bi-directional remote access to valve condition data and diagnostic alerts. The automatic stops and auto-tune functions enable quick and accurate commissioning, with one design fitting many applications. Because the SVI II AP is loop-powered and requires only 9 VDC at 20 mA, it is compatible with existing controllers and electrical barriers.

The enclosure is constructed from copper-free aluminum housing with a gray polyurethane paint finish, providing protection in demanding industrial environments. The operating temperature range is -50°C to +85°C, making it suitable for extreme plant conditions. For single-acting actuators, the supply pressure range is 20 to 100 psi (1.4 to 6.9 bar); for double-acting actuators, it is 20 to 150 psi (1.4 to 10.3 bar). Air delivery reaches 280 SLPM at 30 psi. The SVI II AP carries a comprehensive certification portfolio including ATEX, IECEx, US, and Canada approvals for flameproof/explosion-proof, intrinsic safety, dust ignition-proof, and non-incendive applications, with regional approvals available for Russia, India, China, Brazil, Japan, South Korea, and other markets. Typical industries include power generation, refining, petrochemicals, midstream and upstream oil and gas. The non-contact travel sensor allows for accurate positioning and maintenance-free operation, and the positioner can be integrated with leading control systems via HART eDDL and FDT-DTM technologies. The combination of compact size, local configuration, digital communication, and advanced diagnostics makes the SVI II AP a dependable choice for valve automation and plant efficiency.

Technical Specifications

Application Industry

1. Power generation

2. Oil and gas refining

3. Petrochemical processing

4. Midstream and upstream oil and gas

5. Water and wastewater treatment

6. Chemical processing

7. Pulp and paper mills

8. General industrial process control

These industries require accurate valve positioning, reliable communication, and advanced diagnostic capability to maintain production efficiency and safety. The SVI II AP is particularly suited for applications where high flow capacity and optimized performance for different actuator sizes are important, such as steam turbine generator control, condenser and cooling tower systems, and reactor building applications. The non-contact position sensing technology prolongs service life and is ideal for both Masoneilan and non-Masoneilan pneumatic actuators. With HART communication, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and reducing exposure to dangerous environments.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify that the source can supply 20 mA, and confirm that the terminal voltage is at least 9 VDC at 20 mA.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument.

3. Local LCD display not functioning – check power supply and verify that the terminal connections are secure.

4. Autotune fails to complete – check actuator travel, supply pressure, and that the magnetic feedback is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – verify the solid-state switch actuation points and recalibrate the positioner using the local interface.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean.

7. Valve stuck or solenoid stuck – run diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify enclosure integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address.

Replacement Models

1. Masoneilan SVI3 AP

2. Masoneilan SVI1000

3. Masoneilan SVI II ESD

4. Fisher DVC2000

5. Fisher DVC6200

6. Neles ND9000 Series

7. Samson TROVIS 3730 Series

8. Flowserve Logix 520MD

9. Foxboro SRD911

10. Rotork YTC Series

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The SVI II AP is designed for single-acting or double-acting pneumatic actuators and can serve as a direct replacement for older analog positioners. The SVI3 AP offers fully backward-compatible mounting brackets with the SVI II AP and SVI1000.
