HART 7 Digital Valve Positioner and SIL3 Capable Valve Positioner with Stainless Steel Housing

Product Overview

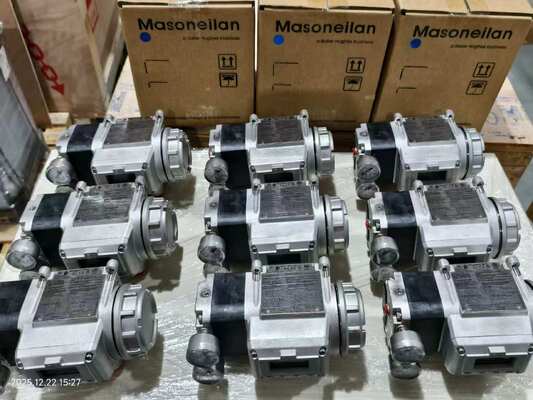

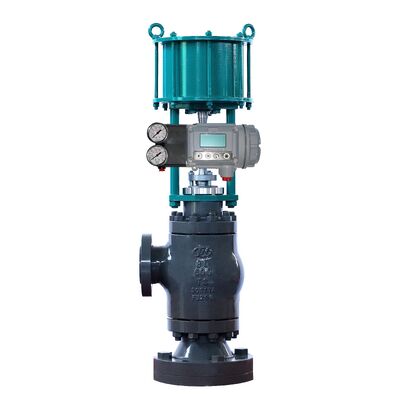

The Masoneilan SVI3 Digital Valve Positioner is the third-generation, HART 7 communicating instrument from Baker Hughes, engineered to deliver accurate, responsive, and reliable positioning performance for pneumatic control valves. It receives a two-wire 4-20 mA control signal and converts it into a proportional pneumatic output to drive either single-acting or double-acting actuators, supporting both linear and rotary valve applications. The SVI3 builds upon more than 20 years of field-proven valve position sensing technology, control algorithms, and advanced performance pneumatic design, ensuring dependable operation in the most demanding process environments. Its robust, non-contact, shielded magnetic-type travel sensor eliminates mechanical wear and simplifies installation on any actuator with NAMUR, IEC 60534-6-1, or IEC 60534-6-2 mounting capabilities. A high-contrast graphical display and pushbuttons, rated for hazardous locations, provide full local configuration, calibration, and tuning capabilities without requiring additional tools or handheld devices. The Smart Cal one-button setup and calibration feature automates stops, air-action, and autotuning, dramatically reducing commissioning time. The instrument also supports NAMUR NE 107 alerts, on-board valve position feedback, and integrated limit switches. Because the SVI3 is loop-powered and requires only 9 VDC at 20 mA, it is compatible with existing controllers and electrical barriers.

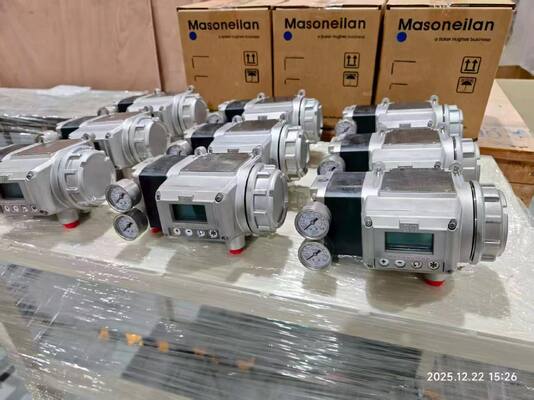

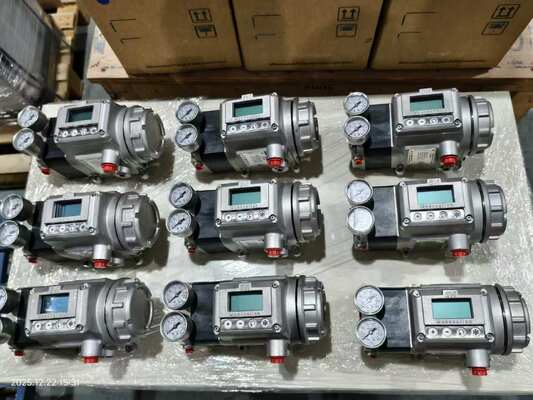

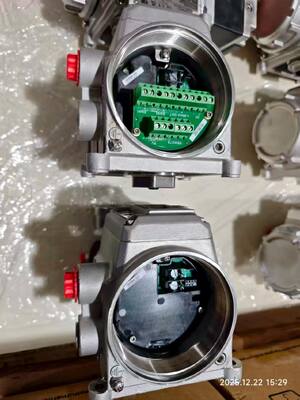

The enclosure is constructed from copper-free aluminum with a gray polyurethane paint finish over an epoxy primer, and an optional 316L stainless steel housing is available for highly corrosive environments. The standard operating temperature range is -40°C to +85°C, with an optional extreme temperature construction extending operation down to -55°C for arctic conditions. For single-acting actuators, the supply pressure range is 20 to 120 psi (1.4 to 8.3 bar), and air delivery reaches 410 SLPM at 30 psi, representing a 15% increase over previous generations. The SVI3 carries a comprehensive certification portfolio including ATEX, IECEx, US, and Canada approvals for flameproof/explosion-proof, intrinsic safety, dust ignition-proof, and increased safety applications, and it is SIL3 capable. The positioner integrates with all leading control systems and asset management software via HART 7, with full DTM and EDD support for Emerson DeltaV/AMS, Honeywell/FDM, Yokogawa/PRM, and GE MarkVIe ControlST. Typical industries include power generation, refining, petrochemicals, midstream oil and gas, and upstream oil and gas. The combination of modular architecture, online valve diagnostics with 19 new diagnostic parameters, and over one year of on-board data storage makes the SVI3 a dependable choice for valve automation, plant efficiency, and predictive maintenance.

Technical Specifications

Application Industry

1. Power generation

2. Oil and gas refining

3. Petrochemical processing

4. Midstream oil and gas

5. Upstream oil and gas

6. Water and wastewater treatment

7. Chemical processing

8. Pulp and paper mills

These industries require accurate valve positioning, reliable communication, and advanced diagnostic capability to maintain production efficiency and safety. The SVI3 is particularly suited for critical applications such as steam turbine generator control, condenser and cooling tower systems, reactor building applications, turbine building systems, heat recovery steam generators, balance of plant, distillation, hydroprocessing, reforming, cracking, blending, quenching, fractioning, charge gas compression, separation, pipeline integrity operations, dehydration, refrigeration, liquefaction, loading/shipping, and regasification. The non-contact position sensing technology prolongs service life and is ideal for both Masoneilan and non-Masoneilan pneumatic actuators. With HART 7 communication and online valve diagnostics, operators can access valve condition data, performance trends, and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify that the source can supply 20 mA, and confirm that the terminal voltage is at least 9 VDC at 20 mA or 11 VDC at 4 mA.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that the SMART CAL procedure has been completed.

3. Local graphical display not functioning – check power supply and verify that the terminal connections are secure; confirm the display is rated for the hazardous area classification.

4. SMART CAL fails to complete – check actuator travel, supply pressure, and that the magnetic feedback is properly positioned; verify there is no mechanical binding and that stroke range is within 0.25" to 8" (6.4 to 200 mm).

5. Position feedback incorrect – verify the solid-state switch actuation points and recalibrate the positioner using the local interface; check the optional 4-20 mA position retransmit configuration.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean, and confirm air delivery meets 410 SLPM at 30 psi requirement.

7. Valve stuck or solenoid stuck – run online valve diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems; review stored diagnostic trends.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition; review cycle count and signature data.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM/EDD integration with the control system.

Replacement Models

1. Masoneilan SVI II AP

2. Masoneilan SVI1000

3. Masoneilan SVI II ESD

4. Fisher DVC6200

5. Fisher DVC2000

6. Neles ND9000 Series

7. Samson TROVIS 3730 Series

8. Flowserve Logix 520MD

9. Foxboro SRD911

10. Rotork YTC Series

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The SVI3 is designed for single-acting or double-acting pneumatic actuators and offers fully backward-compatible stainless steel mounting brackets with the SVI II AP and SVI1000. Its modular architecture supports future digital upgrades, reducing spare parts inventory.
