HART 5/6/7 Aluminum Alloy Intrinsically Safe Digital Valve Positioner for Pneumatic Valve Control

Product Overview

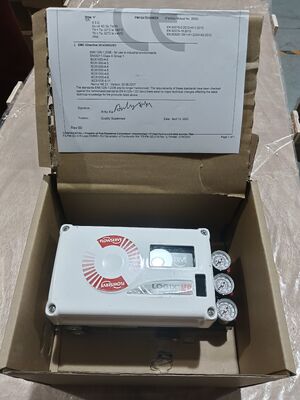

The Flowserve Logix 520MD Digital Valve Positioner is a "smart" HART-communicating instrument designed to deliver precise positioning and tuning performance for pneumatic control valves. It receives a 4-20 mA DC control signal and converts it into a proportional pneumatic output to drive the valve actuator, supporting both single-acting and double-acting configurations. The 520MD utilizes state-of-the-art piezo technology to provide superior performance and reliability, with a two-stage control design that enables faster response times and tighter control. Its multi-variable gain tuning algorithm allows the positioner to make large step changes with minimal overshoot while achieving high response resolution for very small step changes. The automatic tuning procedure measures the actuator response to cycles and selects optimal gain values to optimize actuator performance, and a gain selector allows the user to increase or decrease the calculated gain as needed. The positioner uses the industry-standard HART protocol for communication, with support for HART 5, 6, and 7, enabling easy and convenient access to status information, configurations, and diagnostic options. Because the 520MD is loop-powered and requires only 3.6 mA to operate, it is compatible with existing controllers and electrical barriers.

The enclosure is constructed from aluminum and is designed to withstand severe environments, with an operating temperature range of -52°C to +85°C (-62°F to +185°F). The positioner is equipped with over 130 helpful warning alarms that can warn against potential failure of the valve, actuator, and positioner, and when utilized with ValveSight DTM software, many diagnostic tools are available to quickly diagnose problems and potential issues. The 520MD is rated Intrinsically Safe Class 1 Division 1 Groups A-D and Non-Incendive Class 1 Division 2 Groups A-D, making it suitable for hazardous area installations. It carries a comprehensive certification portfolio including ATEX, IECEx, US, and Canada approvals. Typical industries include oil and gas, chemical processing, refining, power generation, water and wastewater treatment, and pulp and paper. The combination of compact modular design, local configuration, digital communication, and powerful diagnostic capability makes the 520MD a dependable choice for valve automation and plant efficiency.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. Mining and metals processing

These industries require accurate valve positioning, reliable communication, and powerful diagnostic capability to maintain production efficiency and safety. The 520MD is particularly suited for applications where high air capacity and low air consumption are important, such as automated flow and pressure control on industrial valves, oil and gas upstream and midstream valve automation, chemical and petrochemical batch and continuous processes, steam and utility systems in power plants, and refining and pipeline pressure regulation. The piezo technology combined with inner-loop feedback procedures provides high-performance control with minimal air consumption. With HART communication and ValveSight software, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance.

Common Problems

1. Positioner does not respond to analog commands – check the 4-20 mA loop for continuity, verify that the source can supply at least 3.6 mA, and confirm that the terminal voltage meets the required compliance voltage.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that calibration has been completed.

3. Local status LED not functioning – check power supply and verify that the terminal connections are secure.

4. Quick-Cal fails to complete – check actuator travel, supply pressure, and that the magnetic feedback is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – verify the solid-state switch actuation points and recalibrate the positioner using the local interface or ValveSight software.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean.

7. Valve stuck or solenoid stuck – run diagnostic tests via ValveSight to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM integration with the control system.

Replacement Models

1. Flowserve Logix 3200MD

2. Flowserve Logix 3800MD

3. Flowserve Logix 510+

4. Fisher DVC6200

5. Fisher DVC2000

6. Neles ND9000 Series

7. Samson TROVIS 3730 Series

8. Masoneilan SVI II AP

9. Foxboro SRD911

10. Rotork YTC Series

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The 520MD is designed for single-acting or double-acting pneumatic actuators and shares a common housing and actuating system with other Logix 500 series models, allowing most optional accessories to be used across the family.
