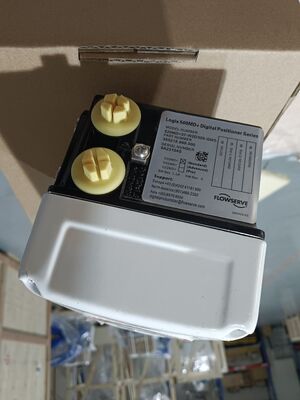

HART Aluminum Alloy Pneumatic Digital Valve Positioner for Smart Valve Control

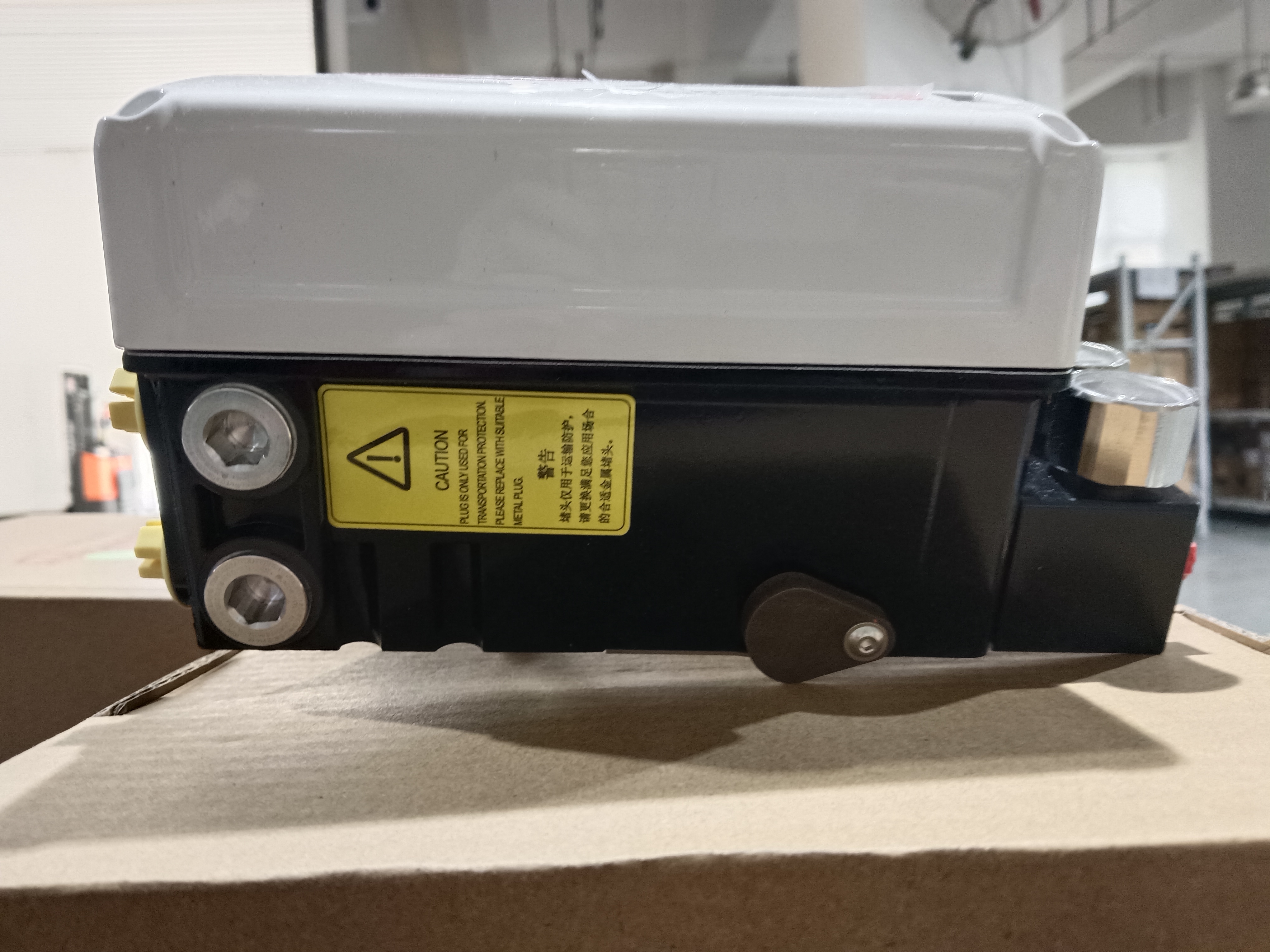

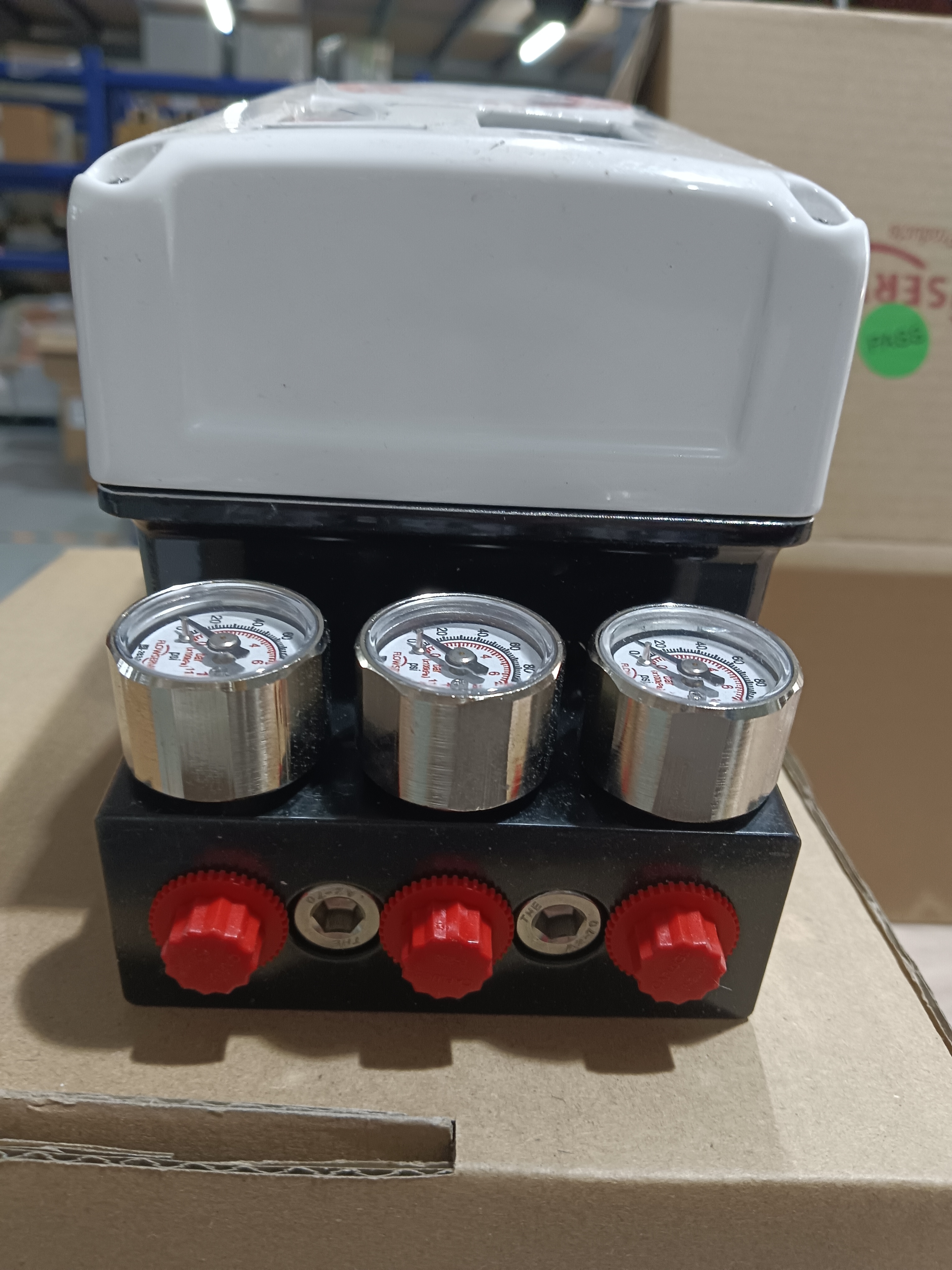

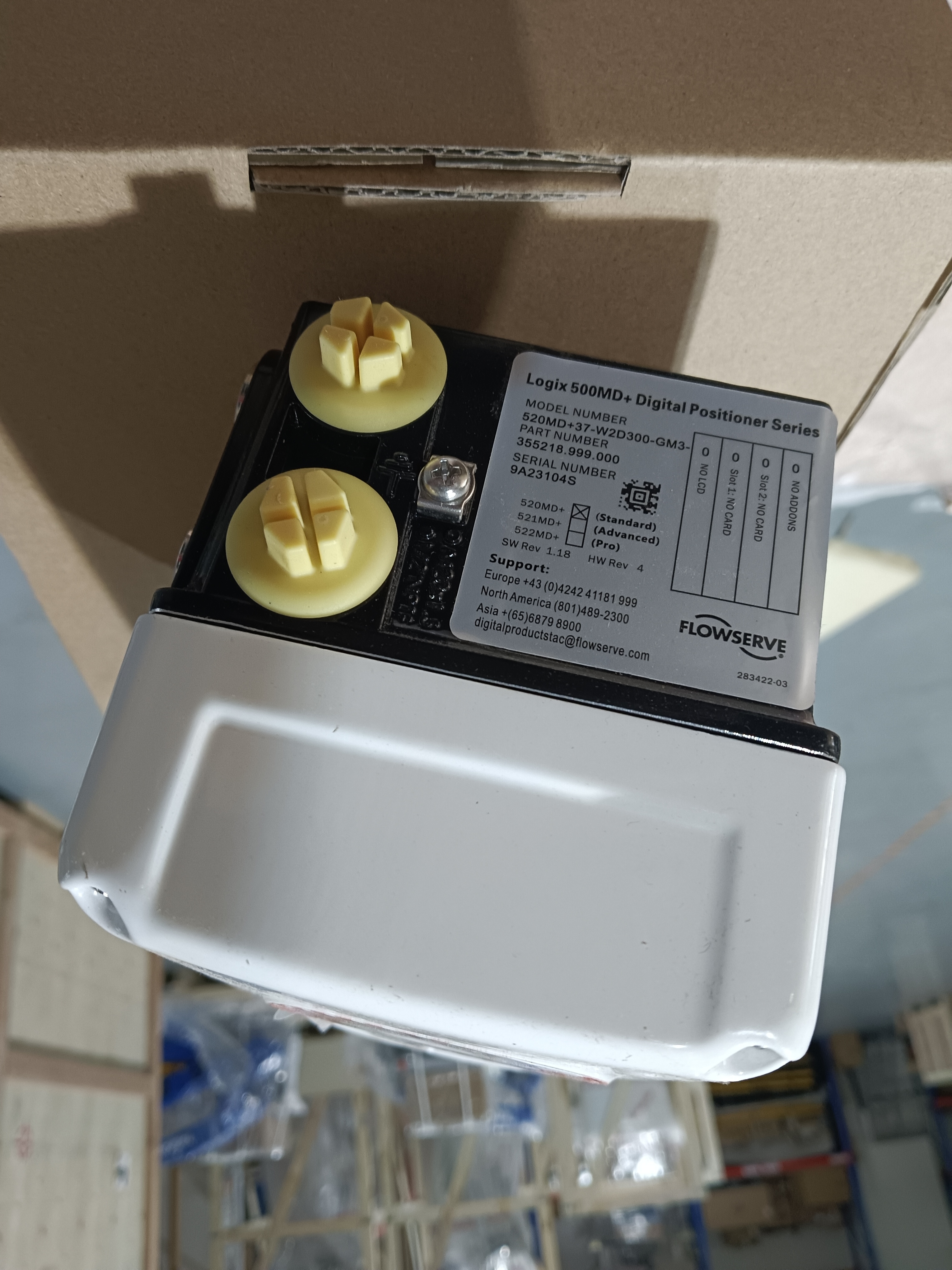

Product Overview

The Flowserve Logix 520MD Digital Valve Positioner is a smart, HART-communicating instrument built to deliver accurate and stable positioning for pneumatic control valves. It accepts a two-wire 4-20 mA DC command signal and produces a proportional pneumatic output that drives the actuator, supporting both single-acting and double-acting valve configurations. The 520MD uses advanced piezo technology and a two-stage control architecture to achieve fast response, tight shutoff, and minimal overshoot. Its multi-variable gain tuning algorithm enables the positioner to handle large step changes smoothly while still resolving very small setpoint adjustments with high precision. An automatic tuning routine measures actuator behavior and selects optimal gain values, and a gain selector lets users fine-tune performance when needed. HART 5, 6, and 7 communication is supported over the 4-20 mA loop, giving access to status, configuration, and diagnostic information. Because the 520MD is loop-powered and operates with as little as 3.6 mA, it works with existing controllers and electrical barriers.

The housing is made of aluminum and is designed for severe industrial environments, with an operating temperature range of -52°C to +85°C (-62°F to +185°F). More than 130 warning alarms help identify potential valve, actuator, and positioner problems before they cause downtime. When combined with ValveSight DTM software, the 520MD provides powerful diagnostic tools for fast troubleshooting and predictive maintenance. It is rated Intrinsically Safe Class 1 Division 1 Groups A-D and Non-Incendive Class 1 Division 2 Groups A-D, making it suitable for hazardous area installation. The positioner carries ATEX, IECEx, US, and Canada approvals. Typical industries include oil and gas, chemical processing, refining, power generation, water and wastewater treatment, and pulp and paper. The compact modular design, local configuration options, digital communication, and diagnostic capability make the 520MD a dependable choice for valve automation and plant efficiency.

Technical Specifications

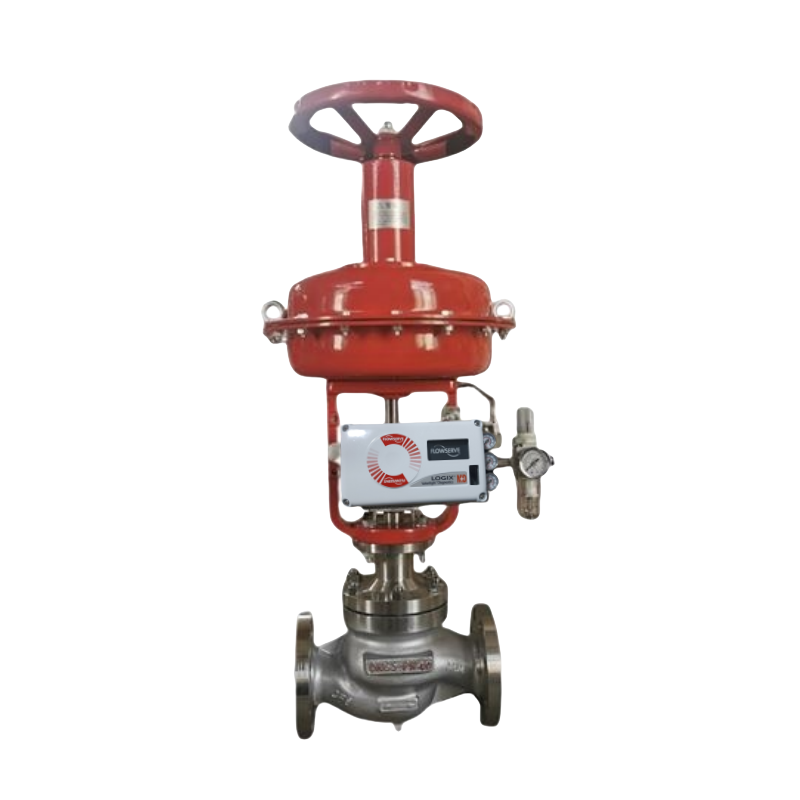

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. Mining and metals processing

These industries require accurate valve positioning, reliable communication, and strong diagnostic capability to maintain production efficiency and safety. The 520MD is particularly suited for applications where high air capacity and low air consumption are important, such as automated flow and pressure control on industrial valves, oil and gas upstream and midstream valve automation, chemical and petrochemical batch and continuous processes, steam and utility systems in power plants, and refining and pipeline pressure regulation. Piezo technology combined with inner-loop feedback provides high-performance control with minimal air consumption. With HART communication and ValveSight software, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance.

Common Problems

1. Positioner does not respond to analog commands – check the 4-20 mA loop for continuity, verify that the source can supply at least 3.6 mA, and confirm that the terminal voltage meets the required compliance voltage.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that calibration has been completed.

3. Local status LED not functioning – check power supply and verify that the terminal connections are secure.

4. Quick-Cal fails to complete – check actuator travel, supply pressure, and magnetic feedback position; verify there is no mechanical binding.

5. Position feedback incorrect – verify the solid-state switch actuation points and recalibrate the positioner using the local interface or ValveSight software.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is adequate and clean.

7. Valve stuck or solenoid stuck – run diagnostic tests via ValveSight to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM integration with the control system.

Replacement Models

1. Flowserve Logix 3200MD

2. Flowserve Logix 3800MD

3. Flowserve Logix 510+

4. Fisher DVC6200

5. Fisher DVC2000

6. Neles ND9000 Series

7. Samson TROVIS 3730 Series

8. Masoneilan SVI II AP

9. Foxboro SRD911

10. Rotork YTC Series

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The 520MD is designed for single-acting or double-acting pneumatic actuators and shares a common housing and actuating system with other Logix 500 series models, allowing most optional accessories to be used across the family.
