High-Performance SIL 2 Tuning Valve Positioner Intelligent Valve Positioner for Smart Control

Product Overview

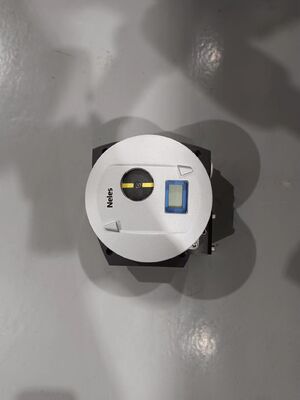

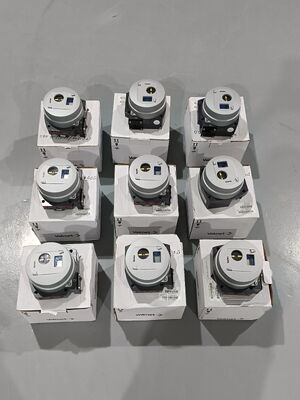

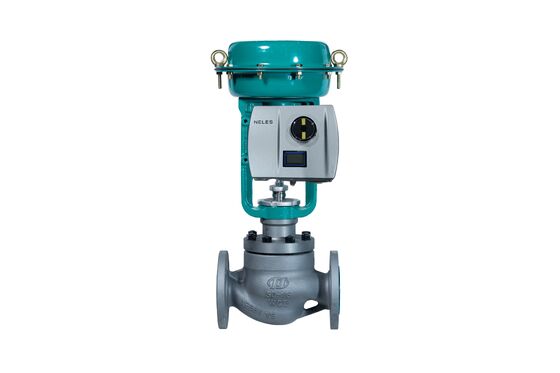

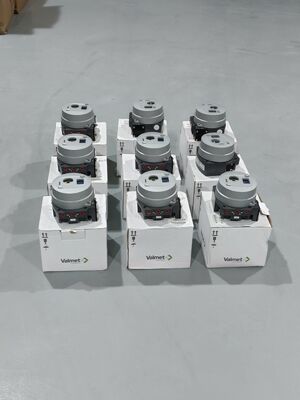

The Neles ND9000 Intelligent Valve Positioner is a microcontroller-based valve controller that receives a 4-20 mA DC control signal or fieldbus communication and converts it into a proportional pneumatic output to drive either single-acting or double-acting actuators, supporting both linear and rotary valve applications. Its non-contact position measurement system eliminates mechanical wear and simplifies installation on any actuator with VDI/VDE 3845 or IEC 60534-6 mounting capabilities. A local user interface with language selection allows quick setup and calibration, and the same device can be used for linear and rotary valves, double and single-acting actuators, reducing spare part inventory. The instrument supports interchangeable communication options including HART 6 or 7, FOUNDATION Fieldbus, and Profibus PA, enabling easy upgrade by replacing the communication board. Optional limit switches and a position transmitter (in HART only) provide valve position feedback without additional hardware. The ND9000 is SIL 2 certified by TÜV according to IEC 61508, making it suitable for safety-related applications. Because the ND9000 is loop-powered and operates with as little as 3.6 mA, it is compatible with existing controllers and electrical barriers. The local user interface, combined with DTM/EDD support, enables fast commissioning and configuration either locally or from a remote location using DCS asset management tools.

The enclosure is constructed from anodized aluminum alloy and polymer composite, or optional full stainless steel, providing IP66 and NEMA 4X protection against dust, water ingress, and corrosive atmospheres. The standard operating temperature range is -40°C to +85°C, with an arctic version extending operation down to -53°C. The supply pressure range is 0.14 to 0.8 MPa (1.4 to 8 bar), and the ND9000 offers low energy and air consumption for reduced total cost of ownership. The positioner carries a comprehensive certification portfolio including ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO, KOSHA, GOST R, and NEPSI approvals for intrinsically safe and explosion-proof applications. It is widely deployed in oil and gas, chemical processing, refining, power generation, water treatment, pulp and paper, and general industrial process control. The ND9000 can be integrated with all major DCS systems, and its open architecture allows free interfacing with software and hardware from a variety of manufacturers via FDT and EDD technologies. The combination of benchmark control performance, superior diagnostics, and future-proof modular design makes the ND9000 a dependable choice for valve automation, plant efficiency, and predictive maintenance.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. Mining and metals processing

These industries require accurate valve positioning, reliable communication, and advanced diagnostic capability to maintain production efficiency and safety. The ND9000 is particularly suited for applications where benchmark control performance on rotary and linear valves is important, such as automated flow and pressure control, oil and gas upstream and midstream valve automation, chemical and petrochemical batch and continuous processes, steam and utility systems in power plants, and refining operations. The non-contact position measurement technology prolongs service life and is ideal for both Neles and third-party pneumatic actuators. With HART or fieldbus communication and online valve diagnostics, operators can access valve condition data, performance trends, and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify that the source can supply at least 3.6 mA, and confirm that the terminal voltage meets the required compliance voltage.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that calibration has been completed.

3. Local display not functioning – check power supply and verify that the terminal connections are secure.

4. Auto calibration fails to complete – check actuator travel, supply pressure, and that the non-contact position sensor is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – verify the limit switch or position transmitter configuration and recalibrate the positioner using the local interface or DTM/EDD software.

6. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply pressure is between 1.4 and 8 bar and that air quality is adequate.

7. Valve stuck or solenoid stuck – run online valve diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems; review stored diagnostic trends.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition; review cycle count and signature data.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. Communication intermittent – check loop wiring, shielding, termination, and device address; verify DTM/EDD integration with the control system.

Replacement Models

1. Neles ND7000 Series

2. Neles ND9100 Series

3. Neles ND9200 Series

4. Neles ND9300 Series

5. Neles ND9400 Series

6. Fisher DVC6200

7. Fisher DVC2000

8. Samson TROVIS 3730 Series

9. Masoneilan SVI II AP

10. Flowserve Logix 520MD

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The ND9000 is designed for single-acting or double-acting pneumatic actuators and offers fully backward-compatible mounting kits with previous Neles positioner generations.
