HART Electropneumatic Valve Positioner for Precise Control - Samson 3730-3 Pneumatic Valve Positioner

Product Overview

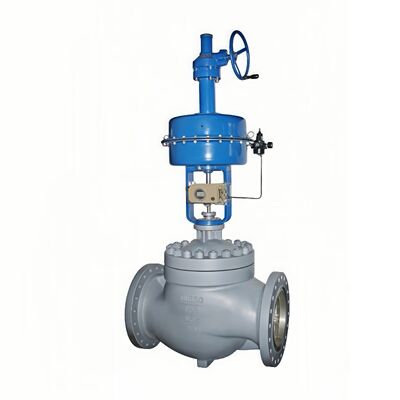

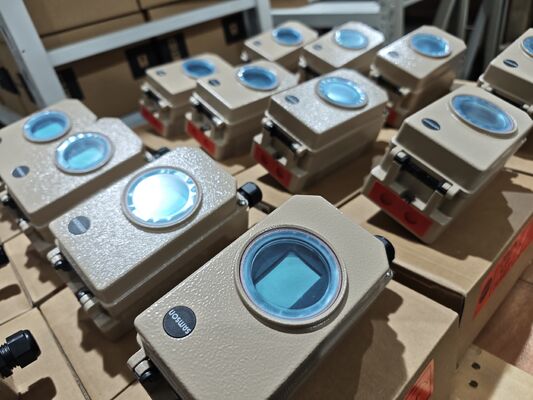

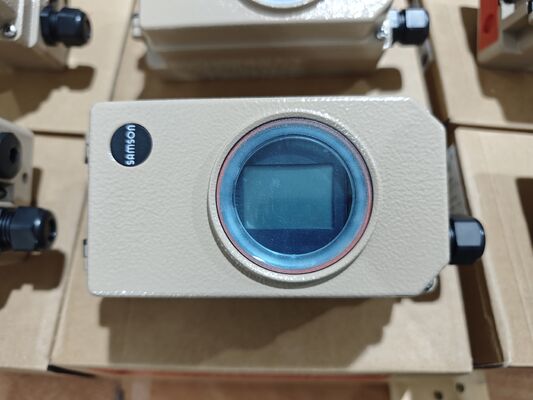

The Samson 3730-3 Electropneumatic Valve Positioner is a smart, HART-communicating instrument designed for precise assignment of valve position to a 4-20 mA control signal on pneumatic control valves. It is available as a single-acting or double-acting positioner for attachment to linear and rotary actuators, supporting travel ranges from 3.6 to 300 mm and opening angles from 24° to 100°. The 3730-3 uses a non-contact travel sensing system that eliminates mechanical wear and simplifies installation on actuators with IEC 60534-6-1, VDI/VDE 3847, VDI/VDE 3845, or SAMSON integral attachment. A plain-text display with NAMUR Recommendation NE 107 states and messages provides clear device status at a glance, and the simple one-knob, menu-driven operation with rotatable reading direction allows quick setup and calibration in any mounting position. The instrument supports HART 7 communication and is SAM DIGITAL ready, enabling integration with modern asset management systems. Integrated EXPERTplus diagnostics for control valves provides real-time data for predictive maintenance, and all parameters are saved in non-volatile EEPROM to protect settings during power loss. The positioner is a two-wire system with a small electrical load of 465 Ω, making it compatible with existing controllers and electrical barriers. The substitution initialization mode allows the positioner to be started up in case of emergency while the plant is running without changing the valve position.

The housing is constructed from die-cast aluminum or stainless steel, providing IP66 and NEMA 4X protection against dust, water ingress, and corrosive atmospheres. The supply air range is 1.4 to 7 bar (20 to 105 psi), and the positioner offers high air capacity for fast and stable control. The 3730-3 carries explosion protection certifications including intrinsic safety, protection by enclosure, and increased safety. The integrated temperature sensor and operating hours counter provide additional diagnostic insight, and continuous zero monitoring ensures long-term accuracy. Typical industries include oil and gas, chemical processing, refining, power generation, water treatment, and general industrial process control. The combination of benchmark control performance, EXPERTplus diagnostics, and a future-proof modular design makes the 3730-3 a dependable choice for valve automation, plant efficiency, and predictive maintenance.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. General industrial process control

These industries require accurate valve positioning, reliable communication, and advanced diagnostic capability to maintain production efficiency and safety. The 3730-3 is particularly suited for applications with challenging transit time requirements, challenging ambient conditions, and throttling service. The non-contact travel sensing technology prolongs service life and is ideal for both Samson and third-party pneumatic actuators. With HART communication and EXPERTplus diagnostics, operators can access valve condition data, performance trends, and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify that the source can supply sufficient current, and confirm that the electrical connections are correct; check for damaged magnetoelectric components, incorrect supply pressure, or blocked air paths.

2. Valve position overshoots or lags the setpoint – verify that the feedback lever pivot position is correct, check range and zero adjustments, and confirm that the magnet has not lost magnetism.

3. Positioner oscillates or hunts – check the amplifier balance screw adjustment, reduce the output throttle needle valve opening, and verify that all feedback connections are secure and tight.

4. Poor linearity or large error – verify installation and adjustment, check for air leaks in the pneumatic system, inspect the magnetoelectric assembly, and ensure that all screws are tight and nozzle/flapper positions are correct.

5. Slow response or sluggish operation – clean the restrictor in the diaphragm chamber, inspect the nozzle/flapper for damage, check for air leaks, verify feedback spring installation, and confirm that supply pressure is adequate and the pressure regulator flow is sufficient.

6. Unstable feedback signal – check the travel sensor and connecting cables for loose or damaged connections, and verify that supply air pressure is stable.

7. Auto calibration fails to complete – check actuator travel, supply pressure, and that the non-contact travel sensor is properly positioned; verify there is no mechanical binding.

8. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply air pressure is between 1.4 and 7 bar.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM/EDD integration with the control system.

Replacement Models

1. Samson TROVIS 3730-3

2. Samson 3730-6 (upgrade with pressure sensors)

3. Samson 3730-2

4. Samson 3730-4 (PROFIBUS)

5. Samson 3730-5 (FOUNDATION Fieldbus)

6. Samson 3725

7. Samson 4763

8. Fisher DVC6200

9. Fisher DVC2000

10. Masoneilan SVI II AP

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The 3730-3 is designed for single-acting or double-acting pneumatic actuators and can serve as a direct replacement for older analog positioners. The TROVIS 3730-3 is the designated replacement device as the 3730-3 will be discontinued in the near future.
