HART 7 Valve Positioner with EXPERTplus Diagnostics and Non-Contact Travel Sensing for Pneumatic Valve Positioner Systems

Product Overview

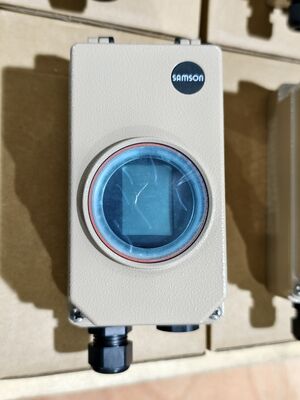

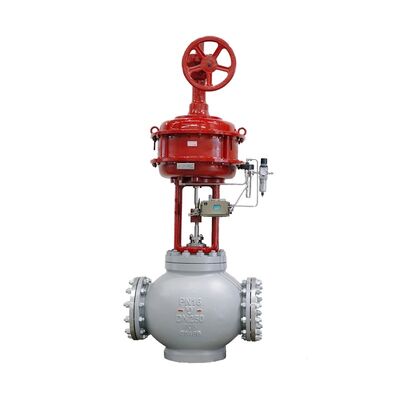

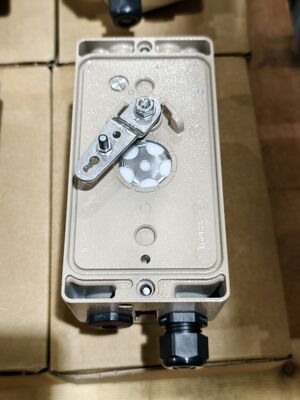

The Samson 3730-3 Electropneumatic Valve Positioner is a smart, HART-communicating instrument that establishes a reliable and repeatable relationship between the valve position and the 4-20 mA control signal on pneumatic control valves. It is offered in single-acting and double-acting versions for mounting on linear and rotary actuators, covering travel ranges from 3.6 to 300 mm and opening angles from 24° to 100°. The non-contact travel sensing system removes mechanical wear points and makes installation straightforward on actuators with IEC 60534-6-1, VDI/VDE 3847, VDI/VDE 3845, or SAMSON integral attachment. A plain-text display with NAMUR NE 107 states and messages gives operators an immediate view of device condition, while the one-knob, menu-driven interface with rotatable reading direction supports quick setup and calibration in any mounting orientation. HART 7 communication and SAM DIGITAL readiness allow the positioner to fit into modern asset management architectures. EXPERTplus valve diagnostics continuously record valve condition during operation and issue messages about required maintenance work. Parameters are held in non-volatile EEPROM so settings survive power interruptions. As a two-wire device with a low electrical load of 410 Ω, the 3730-3 works with existing controllers and barriers. The substitution initialization mode permits emergency startup while the plant is running, without disturbing the valve position. Adjustable tight-closing, output pressure limitation, and automatic zero monitoring round out the control functions.

The housing is available in die-cast aluminum or stainless steel and delivers IP66 and NEMA 4X protection against dust, water, and corrosive atmospheres. Supply air can range from 1.4 to 7 bar (20 to 105 psi), and the positioner provides high air capacity for fast and stable control. Explosion protection options include intrinsic safety, protection by enclosure, and increased safety. An integrated temperature sensor and operating hours counter add diagnostic depth, and two standard programmable position alarms plus self-diagnostics can report over a fault alarm contact or optional analog position transmitter. Typical industries include oil and gas, chemical processing, refining, power generation, water treatment, and general industrial process control. The mix of solid control performance, EXPERTplus diagnostics, and a future-proof modular platform makes the 3730-3 a strong candidate for valve automation, plant efficiency, and predictive maintenance programs.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. General industrial process control

These industries demand accurate valve positioning, dependable communication, and meaningful diagnostics to keep production efficient and safe. The 3730-3 is well matched to duties with demanding transit time requirements, harsh ambient conditions, and throttling service. Non-contact travel sensing extends service life and suits both Samson and third-party pneumatic actuators. With HART communication and EXPERTplus diagnostics, maintenance teams can review valve condition data, performance trends, and diagnostic alerts from outside hazardous areas, improving safety and supporting predictive maintenance.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, confirm the source can supply sufficient current, and verify electrical connections; inspect magnetoelectric components, supply pressure, and air paths for damage, incorrect settings, or blockage.

2. Valve position overshoots or lags the setpoint – confirm the feedback lever pivot position, review range and zero adjustments, and check that the magnet has not lost magnetism.

3. Positioner oscillates or hunts – adjust the amplifier balance screw, reduce the output throttle needle valve opening, and verify all feedback connections are tight and secure.

4. Poor linearity or large error – check installation and adjustment, look for air leaks in the pneumatic system, inspect the magnetoelectric assembly, and confirm tight screws and correct nozzle/flapper positions.

5. Slow response or sluggish operation – clean the restrictor in the diaphragm chamber, inspect the nozzle/flapper for damage, check for leaks, verify feedback spring installation, and confirm adequate supply pressure and regulator flow.

6. Unstable feedback signal – inspect the travel sensor and connecting cables for loose or damaged connections, and verify that supply air pressure is stable.

7. Auto calibration fails to complete – check actuator travel, supply pressure, and non-contact travel sensor position; verify there is no mechanical binding.

8. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing for leaks; verify supply air pressure is between 1.4 and 7 bar.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 / NEMA 4X integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM/EDD integration with the control system.

Replacement Models

1. Samson TROVIS 3730-3

2. Samson 3730-6 (upgrade with pressure sensors)

3. Samson 3730-2

4. Samson 3730-4 (PROFIBUS)

5. Samson 3730-5 (FOUNDATION Fieldbus)

6. Samson 3725

7. Samson 4763

8. Fisher DVC6200

9. Fisher DVC2000

10. Masoneilan SVI II AP

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The 3730-3 fits single-acting or double-acting pneumatic actuators and can directly replace older analog positioners. The TROVIS 3730-3 is the designated replacement device because the 3730-3 will be discontinued in the near future.
