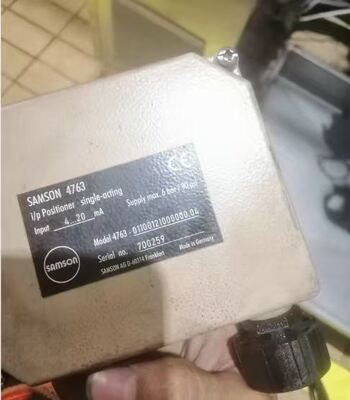

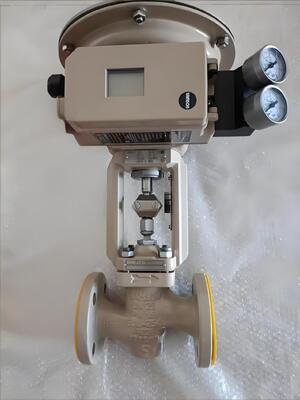

Samson 4763 4-20 mA Electropneumatic Valve Positioner with Force-Balance and Field-Reversible Action

Product Overview

The Samson 4763 Electropneumatic Valve Positioner is a compact, single-acting instrument designed for precise assignment of valve stem position to a standardized electrical control signal on pneumatic control valves. It receives a 4(0) to 20 mA or 1 to 5 mA DC input signal and converts it into a proportional pneumatic output pressure of 0 to 6 bar (0 to 90 psi) to drive the valve actuator, ensuring accurate and repeatable positioning. The 4763 uses a proven flapper-nozzle system operating on the force-balance principle, a design that has been field-proven across decades of industrial service. Its compact, low-maintenance construction makes it suitable for any mounting position and insensitive to mechanical vibrations, which is critical for reliable performance in demanding plant environments. The operating direction is field-reversible between direct and reverse action by simply turning the nozzle assembly 180 degrees, and the proportional band (P-band) and air output capacity are both adjustable to match the actuator characteristics. The positioner supports normal and split-range operation, giving users flexibility in control loop design. An existing Type 4765 pneumatic positioner can be upgraded to the electropneumatic Type 4763 by adding the i/p converter module. The instrument is available in versions without explosion protection (Type 4763-0), with ATEX intrinsic safety approval (Type 4763-1), and in EEx nA non-sparking construction (Type 4763-8).

The enclosure is a die-cast aluminum housing with a corrosion-resistant epoxy coating and stainless steel hardware, providing IP54 protection as standard, with IP65 and NEMA 4X options available through the filter check valve accessory. The supply air range is 1.4 to 6 bar (20 to 90 psi), and the positioner delivers low air consumption for efficient operation. The 4763 carries a comprehensive certification portfolio including ATEX, CSA, FM, and PTB approvals for hazardous area installations, with intrinsically safe versions rated EEx ia IIC T6. The device is available with optional pressure gauges for monitoring supply air and signal pressure, with either nickel-plated or stainless steel gauge housings. A low-temperature version is available for operation down to -50°C. Typical industries include oil and gas, chemical and petrochemical, power generation, water treatment, and general industrial process control. The combination of compact size, force-balance reliability, reversible action, and broad certification coverage makes the 4763 a dependable choice for valve automation, particularly in applications where a proven, straightforward electropneumatic positioner is preferred. Note that the product will be discontinued in the near future, with the TROVIS 3730-1 and Type 3767 designated as replacement devices.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. General industrial process control

These industries require accurate valve positioning and dependable operation in demanding environments. The 4763 is particularly suited for throttling service on single-acting linear actuators, where its force-balance design and vibration insensitivity ensure stable control. The optional low-temperature version down to -50°C makes it suitable for cold-climate installations. With its broad certification portfolio, the 4763 can be deployed in hazardous areas as well as ordinary plant locations. The positioner is designed for use with Samson and third-party pneumatic control valves that comply with IEC 60534-6 and NAMUR mounting standards.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA or 1-5 mA loop for continuity, verify that the source can supply sufficient current, and confirm that the terminal connections are correct; inspect the i/p converter module, supply pressure, and air paths for damage or blockage.

2. Valve position overshoots or lags the setpoint – verify that the feedback lever and spring are correctly connected, check the proportional band adjustment, and confirm that the nozzle assembly is in the correct operating direction position.

3. Positioner oscillates or hunts – adjust the proportional band (P-band) to a wider setting, reduce the air output capacity using the adjustable throttle, and verify that all feedback connections are secure and free of backlash.

4. Poor linearity or large error – verify the feedback linkage geometry and range adjustment, check for air leaks in the pneumatic system, and inspect the flapper-nozzle assembly for contamination or wear.

5. Slow response or sluggish operation – clean the restrictor and nozzle, inspect the flapper for damage, check for air leaks in the supply and output lines, and confirm that supply pressure is adequate (1.4 to 6 bar).

6. Unstable output pressure – check the supply air pressure for fluctuations, inspect the flapper-nozzle gap for contamination, and verify that the force-balance feedback spring is correctly installed and tensioned.

7. Auto calibration does not complete – the 4763 uses manual calibration; verify that the valve stem travel is within the rated range of 7.5 to 90 mm, check the feedback lever position, and confirm that the nozzle assembly is correctly oriented.

8. Air leaks or pressure droop – inspect air supply connections, the i/p converter, and actuator tubing for leaks; verify supply air pressure is between 1.4 and 6 bar and that air quality meets ISO 8573-1 requirements.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP54 integrity and consider upgrading to IP65 with the filter check valve accessory for washdown or outdoor installations.

10. Erratic operation in high-vibration environments – verify that the positioner is securely mounted with all fasteners tightened, check for loose feedback linkage connections, and confirm that the mounting position is rigid.

Replacement Models

1. Samson TROVIS 3730-1 (digital replacement, HART communication)

2. Samson Type 3767 (electropneumatic replacement)

3. Samson Type 3766 (electropneumatic replacement)

4. Samson 3730-3 (HART, EXPERTplus diagnostics)

5. Samson 3725 (electropneumatic positioner)

6. Samson 4765 (pneumatic positioner, same platform)

7. Fisher DVC2000

8. Fisher DVC6200

9. Masoneilan SVI II AP

10. Flowserve Logix 520MD

Selection note: verify mounting flange compatibility, actuator travel range, input signal type, supply pressure, and enclosure protection before substituting models. The 4763 fits single-acting pneumatic actuators with cast yokes or rod-type yokes according to IEC 60534-6. Note that the 4763 will be discontinued in the near future; the TROVIS 3730-1 and Type 3767 are the designated replacement devices, offering digital communication and diagnostic capabilities not available on the analog 4763.
