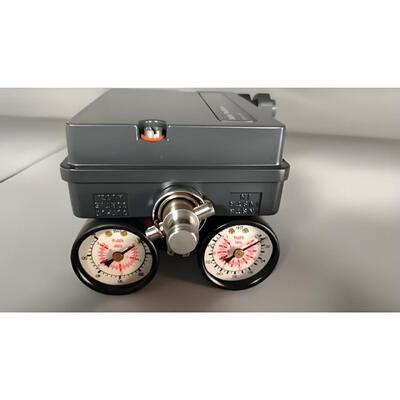

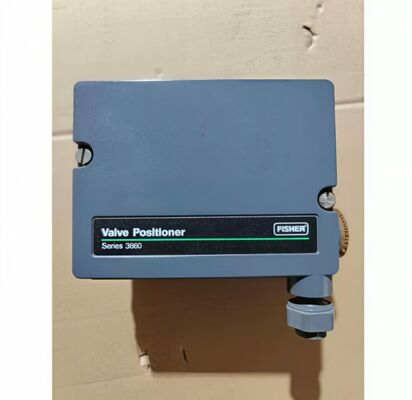

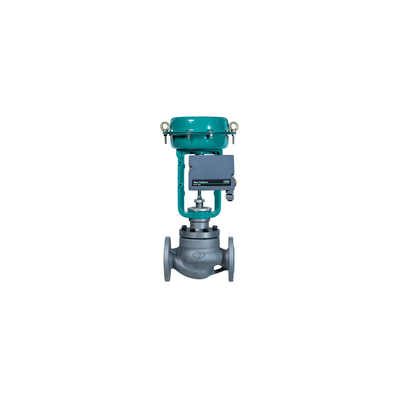

Fisher 3661 Electro-Pneumatic Valve Positioner with Integral Bypass and Force-Balance Design for 4-20 mA DC Control

Product Overview

The Fisher 3661 Electro-Pneumatic Valve Positioner is a field-proven, force-balance instrument designed to position diaphragm-actuated sliding-stem control valves using a 4-20 mA DC electrical input signal. It converts the electrical control signal into a proportional pneumatic output pressure to the actuator, ensuring accurate and repeatable valve positioning for throttling and on/off service. The 3661 uses a nozzle/flapper and relay mechanism together with an integral I/P converter module, providing fast response and high-frequency stability. Its compact, rugged construction allows mounting in any position and provides excellent resistance to vibration, which is critical for reliable performance in harsh plant environments. The positioner features an integral bypass valve that allows manual operation of the valve during maintenance without removing the instrument from service. Zero and span adjustments are accessible for easy calibration, and the action can be field-reversed between direct and reverse without additional parts. The 3661 is compatible with a wide range of Fisher and third-party pneumatic actuators that comply with standard mounting interfaces. Because the pneumatic section remains field-proven and straightforward, maintenance and troubleshooting are simple for instrument technicians.

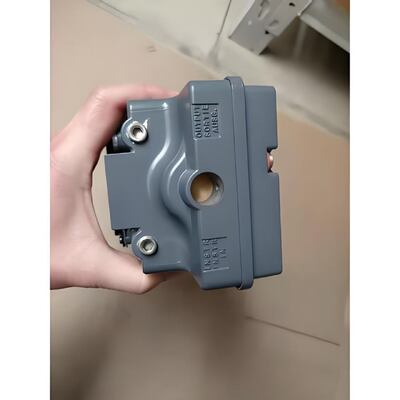

The housing is a die-cast aluminum case with a corrosion-resistant finish, providing IP54 protection as standard. The supply pressure range is up to 100 psi (6.9 bar), and the output pressure can reach 95% of supply. Steady-state air consumption is low, contributing to energy efficiency. The operating temperature range is -40 to +71°C (-40 to +160°F). The 3661 carries certifications including ATEX, CSA, and FM for hazardous area installations, with intrinsically safe and explosion-proof versions available. Typical industries include oil and gas, chemical processing, refining, power generation, water treatment, and general industrial process control. The combination of force-balance reliability, integral bypass, electro-pneumatic input, and broad certification coverage makes the 3661 a dependable choice for valve automation, particularly in applications where a proven, straightforward electro-pneumatic positioner is preferred.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Refining and pipeline pressure regulation

7. Pharmaceutical manufacturing

8. General industrial process control

These industries require accurate valve positioning and dependable operation in demanding environments. The 3661 is particularly suited for throttling service on diaphragm-actuated sliding-stem valves, where its force-balance design and vibration insensitivity ensure stable control. The integral bypass valve simplifies maintenance by allowing manual operation without removing the positioner from service. With its broad certification portfolio, the 3661 can be deployed in hazardous areas as well as ordinary plant locations. The positioner is designed for use with Fisher and third-party pneumatic actuators that comply with standard mounting interfaces.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify input impedance, confirm supply pressure is adequate, and inspect the I/P converter and nozzle/flapper assembly for contamination.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that the bypass valve is closed.

3. Positioner oscillates or hunts – adjust the relay and nozzle adjustments, verify feedback linkage is secure, and confirm actuator is not oversized.

4. Poor linearity or large error – verify feedback linkage geometry and range adjustment, check for air leaks, and inspect the nozzle/flapper for wear.

5. Slow response – clean the restrictor and nozzle, inspect the relay and I/P converter, check for leaks, and confirm supply pressure is adequate.

6. Unstable output pressure – check supply air pressure stability, inspect nozzle/flapper gap, and verify force-balance feedback spring tension.

7. Calibration does not complete – the 3661 uses manual calibration; verify valve travel is within rated range, check feedback lever position, and confirm nozzle orientation.

8. Air leaks or pressure droop – inspect air supply connections, relay, and actuator tubing; verify supply pressure is up to 100 psi.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP54 integrity and consider IP65 upgrade if needed.

10. Erratic operation in high-vibration environments – verify secure mounting, check for loose feedback linkage connections, and confirm rigid mounting position.

Replacement Models

1. Fisher 3582 Pneumatic Valve Positioner

2. Fisher 3610J Electro-Pneumatic Valve Positioner

3. Fisher 3620J Electro-Pneumatic Valve Positioner

4. Fisher 3660 Valve Positioner

5. Fisher DVC2000 Digital Valve Positioner

6. Fisher DVC6200 Digital Valve Positioner

7. Masoneilan SVI II AP

8. Samson 3730-3

9. KOSO EP800

10. Flowserve Logix 520MD

Selection note: verify mounting flange compatibility, actuator type, stroke range, input signal type, supply pressure, and enclosure protection before substituting models. The 3661 fits single-acting diaphragm actuators with standard mounting interfaces. For digital communication and advanced diagnostics, consider upgrading to the Fisher DVC series.
