HART Communication Smart Valve Positioner with Auto-Calibration and Partial Stroke Test for Digital Valve Positioner Control

Product Overview

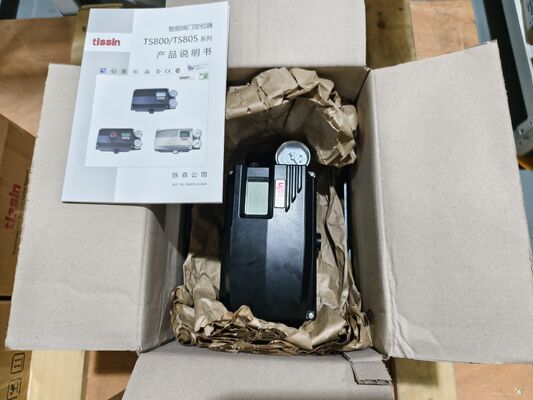

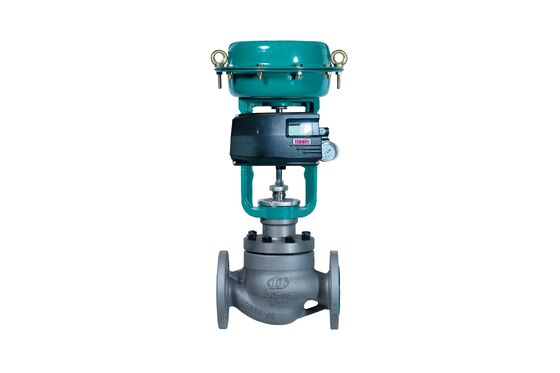

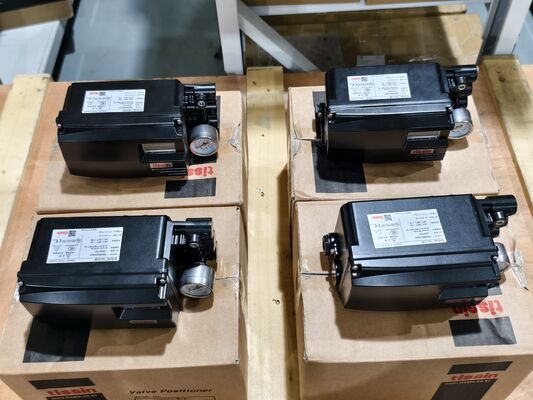

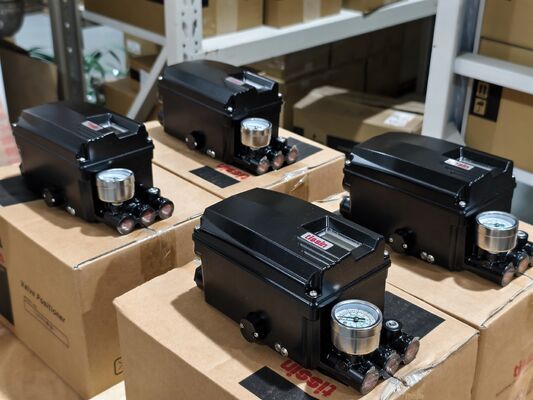

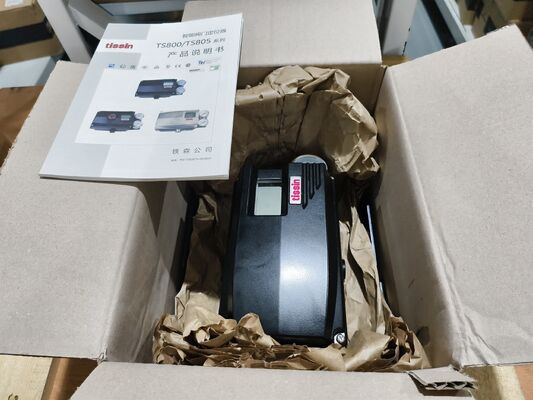

The Tissin TS800 Smart Valve Positioner is a compact, microprocessor-based electro-pneumatic instrument engineered to deliver precise and reliable valve positioning in process control loops. It receives a 4-20 mA DC input signal and converts it into a proportional pneumatic output pressure to drive either single-acting or double-acting valve actuators, supporting both linear and rotary valve applications. The TS800 uses a proven torque motor with nozzle/flapper technology that provides fast response, high repeatability, and low steady-state air consumption, contributing to energy savings and reduced operating costs. HART communication is supported over the 4-20 mA loop, enabling remote access to configuration parameters, calibration data, and diagnostic alerts from the control room or asset management system. The positioner features a linkage-less, non-contact position feedback sensor that eliminates mechanical wear and simplifies installation on actuators with NAMUR or IEC 60534-6 mounting interfaces. A local LCD display with four pushbuttons allows quick setup, auto-calibration, PID tuning, and manual adjustment without external tools. The auto-calibration function automatically determines actuator stroke and zero position, significantly reducing commissioning time. The TS800 also provides a 4-20 mA position transmitter output and optional limit switches for position feedback and alarm signaling. A Partial Stroke Test (PST) function is available for enhanced safety loop validation.

The enclosure is constructed from a die-cast aluminum housing with a corrosion-resistant coating, providing IP66 protection against dust, water ingress, and harsh industrial atmospheres. The supply pressure range is 1.4 to 7 bar (20 to 105 psi), and the operating temperature range is -30 to +85°C (standard) with a low-temperature version down to -40°C. The positioner is certified for use in hazardous areas with intrinsically safe approval Exia IIC T5/T6, along with ATEX, IECEx, and regional certifications. The torque motor design ensures reliable operation even with contaminated air, and self-diagnostic functions continuously monitor valve performance and alert operators to potential issues. Typical industries include oil and gas, chemical and petrochemical processing, power generation, water and wastewater treatment, pulp and paper, and general industrial automation. The combination of digital communication, auto-calibration, non-contact feedback, PID control, and rugged construction makes the TS800 a dependable choice for valve automation, plant efficiency, and predictive maintenance.

Technical Specifications

Application Industry

1. Oil and gas processing

2. Chemical and petrochemical plants

3. Power generation

4. Water and wastewater treatment

5. Pulp and paper mills

6. Pharmaceutical manufacturing

7. Food and beverage production

8. General industrial automation

These industries require accurate valve positioning, reliable communication, and low-maintenance operation to maintain production efficiency and safety. The TS800 is particularly suited for critical loops such as reactor temperature and column pressure control, where fast response and low air consumption are important. The non-contact position sensing technology prolongs service life and is compatible with both Tissin and third-party pneumatic actuators. With HART communication and self-diagnostics, operators can access valve condition data and diagnostic alerts without entering hazardous areas, improving safety and enabling predictive maintenance. The Partial Stroke Test function supports safety instrumented system validation.

Common Problems

1. Positioner does not respond to input signal – check the 4-20 mA loop for continuity, verify input impedance does not exceed 500 Ω at 20 mA, and confirm supply pressure is between 1.4 and 7 bar; inspect the torque motor and nozzle/flapper assembly for contamination.

2. Valve does not stroke with setpoint change – verify pneumatic connections and supply pressure; confirm that the correct input signal is reaching the instrument and that auto-calibration has been completed.

3. Local LCD display not functioning – check power supply and verify that the terminal connections are secure.

4. Auto-calibration fails to complete – check actuator stroke range (10-150 mm linear or 0-90° rotary), supply pressure, and that the non-contact feedback sensor is properly positioned; verify there is no mechanical binding.

5. Position feedback incorrect – verify the 4-20 mA position transmitter configuration and recalibrate the positioner using the local interface or HART communicator.

6. Air leaks or pressure droop – inspect air supply connections, torque motor, and actuator tubing for leaks; verify air quality and supply pressure.

7. Valve stuck or solenoid stuck – run diagnostic tests to identify valve assembly friction, actuator spring issues, or shaft problems.

8. Excessive valve assembly friction – perform diagnostic friction analysis and compare against baseline; inspect packing and stem condition.

9. Moisture ingress into enclosure – inspect cover seals, cable glands, and terminal box; verify IP66 integrity.

10. HART communication intermittent – check loop wiring, shielding, termination, and HART device address; verify DTM/EDD integration with the control system.

Replacement Models

1. Tissin TS900 Series

2. Tissin TS600 Series

3. Rotork YTC YT-3300

4. Rotork YTC YT-3350

5. Fisher DVC2000

6. Fisher DVC6200

7. Samson 3730-3

8. Masoneilan SVI II AP

9. Flowserve Logix 520MD

10. Neles ND9000 Series

Selection note: verify mounting flange compatibility, actuator type, stroke range, input signal type, communication protocol, supply pressure, and enclosure protection before substituting models. The TS800 is designed for single-acting or double-acting pneumatic actuators and can serve as a direct replacement for older analog positioners.
