HART Communication Digital Valve Positioner with 4-20 mA DC Input Signal and NEMA 4X IP66 Enclosure Valve Positioner

Product Overview

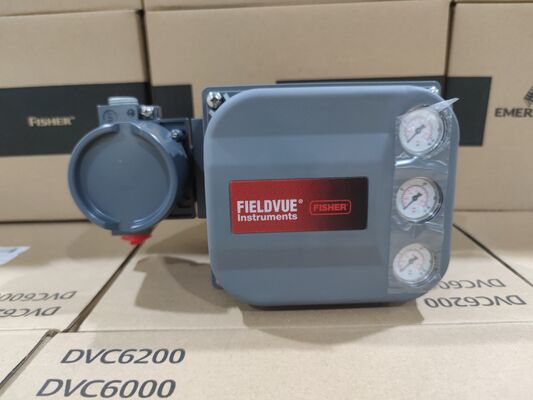

The Fisher DVC6200 Digital Valve Positioner Package is a complete control assembly that includes the positioner body, mounting bracket, feedback linkage, pressure gauges, filter regulator, tubing, fittings, terminal block, manual, calibration certificate, and a 12-month warranty. It is assembled and tested before shipment, so users spend less time on commissioning and do not need to source individual parts separately. The package accepts a 4-20 mA DC command signal and communicates through HART for configuration, calibration, and diagnostic access. It produces accurate pneumatic output for valve stroke control and uses travel feedback to confirm valve position. Local adjustment, automatic calibration, and diagnostic alarms help keep the valve loop stable during routine operation.
The enclosure is made for industrial service and protects the internal electronics from dust, water, and vibration. It works over a broad ambient temperature range and accepts standard instrument air supply pressures. Control features include local calibration, remote configuration, and diagnostic reporting. The package is suitable for chemical, petrochemical, oil and gas, power, water, and general process industries. Its modular layout reduces maintenance work and supports long-term reliability with simple spare parts planning. Each package is covered by a 12-month warranty.

Technical Specifications

Application Industry

1. Chemical processing

2. Petrochemical refining

3. Oil and gas production

4. Power generation

5. Water and wastewater treatment

6. Pharmaceutical manufacturing

7. Food and beverage processing

8. Pulp and paper
   These sectors require accurate valve positioning, stable HART communication, and dependable diagnostics. The package is suitable for humid, dusty, and vibrating plant environments when installed and maintained correctly. It supports flow, pressure, and level control loops that use pneumatic control valves.

Common Problems

1. Valve does not move: check 4-20 mA signal, air supply, and actuator linkage.

2. HART communication failure: verify loop wiring, power, and device address.

3. Valve hunting: inspect tuning, air supply stability, and actuator sizing.

4. Air leakage: check fittings, gaskets, and relay assembly.

5. Incorrect feedback: inspect feedback linkage, magnet, and calibration.

6. Diagnostic alarm: review ValveLink data, supply pressure, and valve friction.

7. Zero drift: confirm mounting stability and recalibrate.

8. Moisture in air line: service filter regulator and install dryer if needed.

9. Manual override issue: check bypass, linkage, and actuator spring.

10. Output pressure error: inspect I/P converter, nozzle, and relay.
    All units are backed by a 12-month warranty.

Replacement Models

1. Fisher DVC6000

2. Fisher DVC2000

3. Fisher DVC6010

4. Flowserve Logix 520MD

5. Masoneilan SVI1000

6. Neles ND9000

7. Samson 3730-3

8. Rotork YTC Series
   Selection note: confirm mounting standard, travel range, input signal, supply pressure, communication protocol, and actuator compatibility.
