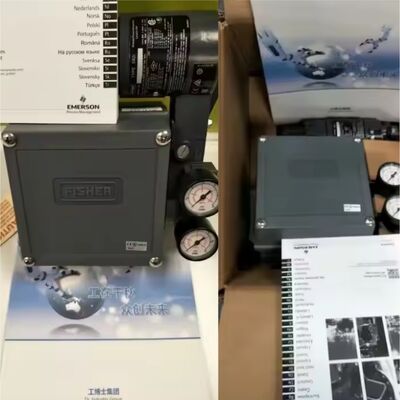

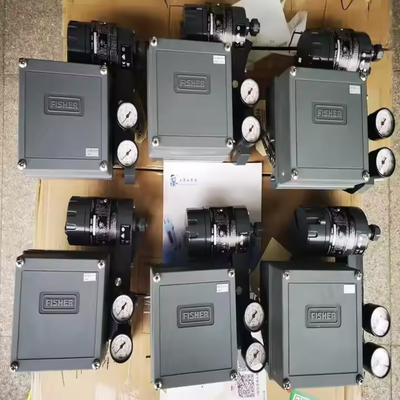

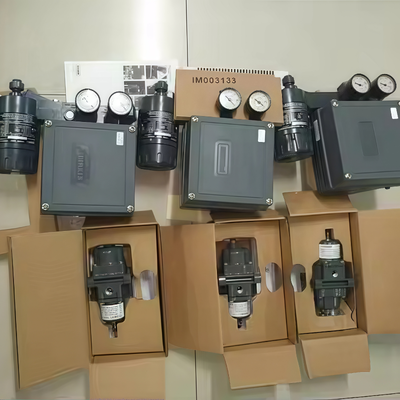

Calibrated Output Pre-Assembled Valve Positioner Package with 4-20 mA DC Input Pneumatic Valve Positioner

Product Overview
The Fisher 3582i Valve Positioner Package is a complete pneumatic control assembly that pairs the 3582i positioner with a valve actuator to create a fully operational control loop. It ships with the positioner body, mounting bracket, feedback linkage, pressure gauges, filter regulator, tubing, fittings, terminal block, manual, calibration certificate, and a 12-month warranty. Because the package is pre-assembled and pre-tested, plant personnel spend less time on installation and do not need to source individual components separately. The unit accepts a 4-20 mA DC input signal and converts it into a stable pneumatic output for precise valve stroke control. A mechanical travel feedback linkage provides continuous position verification, while local zero and span adjustments allow fine tuning without special tools.
The enclosure is built for industrial conditions and protects internal parts from dust, water, and vibration. It operates reliably over a broad ambient temperature range and works with common instrument air supply pressures. Control features include local calibration, remote signal input, and pneumatic output adjustment. The package is suitable for chemical, petrochemical, oil and gas, power, water, and general process industries. Its modular construction reduces maintenance effort and supports long-term reliability with predictable spare parts planning. Every package is covered by a 12-month warranty.

Technical Specifications

Application Industry

1. Chemical processing

2. Petrochemical refining

3. Oil and gas production

4. Power generation

5. Water and wastewater treatment

6. Pharmaceutical manufacturing

7. Food and beverage processing

8. Pulp and paper
   These sectors rely on accurate valve positioning, stable pneumatic output, and dependable mechanical feedback. The package performs well in humid, dusty, and vibrating plant environments when installed and maintained correctly. It supports flow, pressure, and level control loops that use pneumatic control valves.

Common Problems

1. Valve does not move: check 4-20 mA signal, air supply, and actuator linkage.

2. Positioner output unstable: verify supply pressure stability and nozzle condition.

3. Valve hunting: inspect tuning, actuator sizing, and feedback linkage.

4. Air leakage: check fittings, gaskets, and relay assembly.

5. Incorrect feedback: inspect feedback linkage, cam, and calibration.

6. Zero drift: confirm mounting stability and recalibrate zero and span.

7. Moisture in air line: service filter regulator and install dryer if needed.

8. Manual override issue: check bypass, linkage, and actuator spring.

9. Output pressure error: inspect I/P converter, nozzle, and relay.

10. Signal loss: verify loop wiring, power, and input signal range.
    All units are backed by a 12-month warranty.

Replacement Models

1. Fisher 3582

2. Fisher 3582G

3. Fisher 3582NS

4. Fisher 3610J

5. Fisher 3620J

6. Fisher 3660

7. Masoneilan SVI1000

8. Neles ND9000
   Selection note: confirm mounting standard, travel range, input signal, supply pressure, and actuator compatibility.
