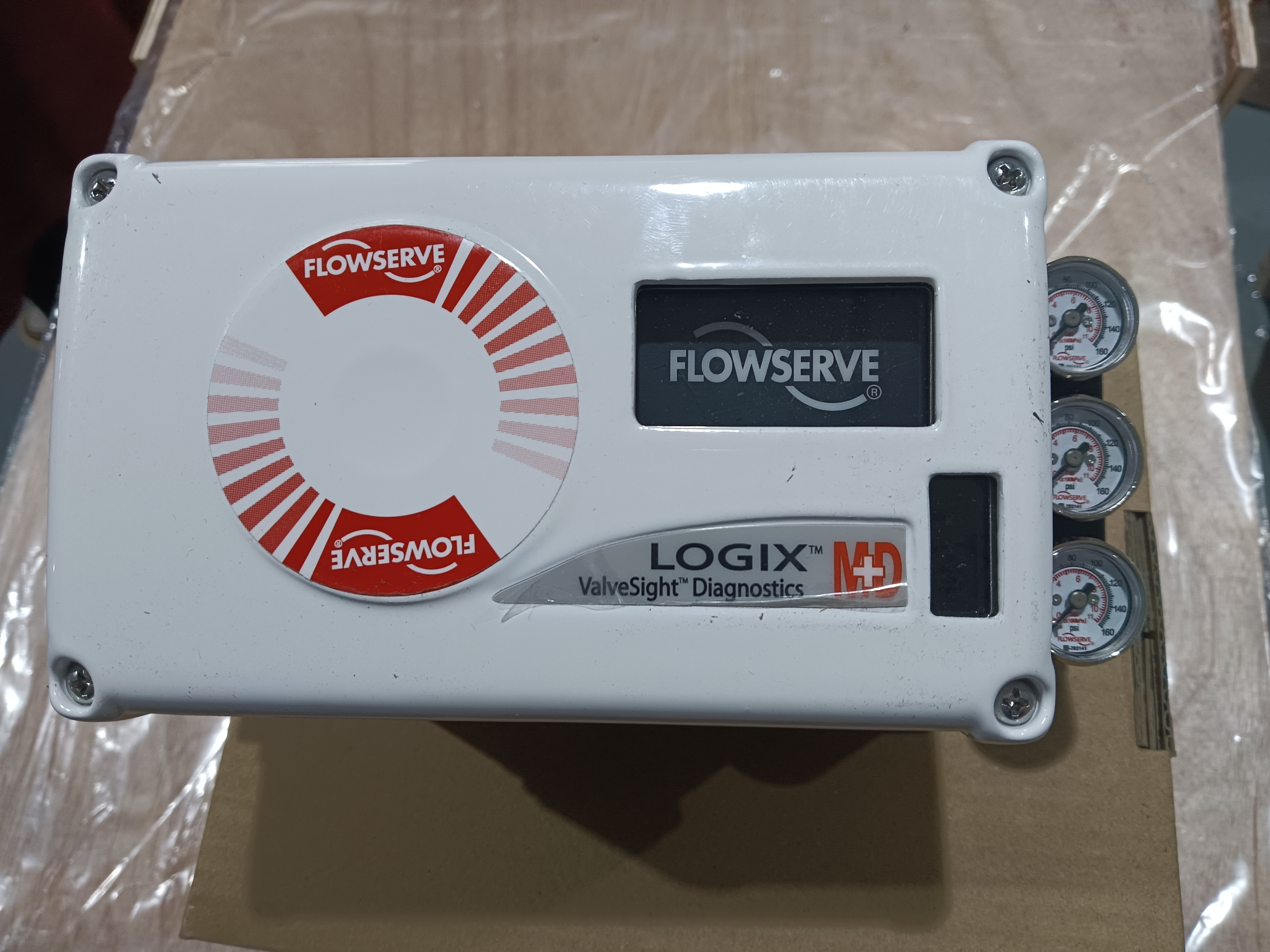

Flowserve Logix 520MD Valve Positioner Package with HART Communication

Product Overview
The Flowserve Logix 520MD Valve Positioner Package is a fully assembled valve control package that combines the 520MD positioner with a mounting bracket, feedback assembly, pressure gauges, filter regulator, tubing, fittings, terminal block, manual, calibration certificate, and a 12-month warranty. It is pre-built and pre-tested at the factory, helping plant teams reduce commissioning time and avoid the work of sourcing and matching separate parts. The package accepts a 4-20 mA DC input signal and supports HART communication for setup, calibration, and diagnostics. It provides accurate pneumatic output for valve stroke control and includes travel feedback for dependable position monitoring. Local adjustment, auto calibration, and diagnostic alarms help keep the valve loop stable during everyday operation. The package works well for new installations and retrofit projects, helping maintenance teams standardize spare parts and reduce downtime.
The enclosure is built for industrial service and protects internal electronics from dust, water, and vibration. It operates reliably over a wide ambient temperature range and accepts common instrument air supply pressures. Control options include local calibration, remote configuration, and diagnostic reporting. The package is suitable for chemical, petrochemical, oil and gas, power, water, and general process industries. Its modular design reduces maintenance effort and supports long-term reliability with predictable spare parts planning. Every package is backed by a 12-month warranty.

Technical Specifications

Application Industry

1. Chemical processing

2. Petrochemical refining

3. Oil and gas production

4. Power generation

5. Water and wastewater treatment

6. Pharmaceutical manufacturing

7. Food and beverage processing

8. Pulp and paper
   These industries require accurate valve positioning, stable HART communication, and dependable diagnostics. The package performs well in humid, dusty, and vibrating plant environments when installed and maintained correctly. It supports flow, pressure, and level control loops that use pneumatic control valves.

Common Problems

1. Valve does not move: check 4-20 mA signal, air supply, and actuator linkage.

2. HART communication failure: verify loop wiring, power, and device address.

3. Valve hunting: inspect tuning, air supply stability, and actuator sizing.

4. Air leakage: check fittings, gaskets, and relay assembly.

5. Incorrect feedback: inspect feedback linkage, magnet, and calibration.

6. Diagnostic alarm: review HART diagnostic data, supply pressure, and valve friction.

7. Zero drift: confirm mounting stability and recalibrate.

8. Moisture in air line: service filter regulator and install dryer if needed.

9. Manual override issue: check bypass, linkage, and actuator spring.

10. Output pressure error: inspect I/P converter, nozzle, and relay.
    All units are backed by a 12-month warranty.

Replacement Models

1. Flowserve Logix 3200MD

2. Flowserve Logix 510MD

3. Fisher DVC6200

4. Fisher DVC2000

5. Masoneilan SVI1000

6. Masoneilan SVI II

7. Neles ND9000

8. Samson 3730-3
   Selection note: confirm mounting standard, travel range, input signal, supply pressure, communication protocol, and actuator compatibility.
