Pre-Assembled 4-20 mA DC Valve Positioner Package with NEMA 4X IP66 Enclosure for Pneumatic Valve Positioner Control

Product Overview

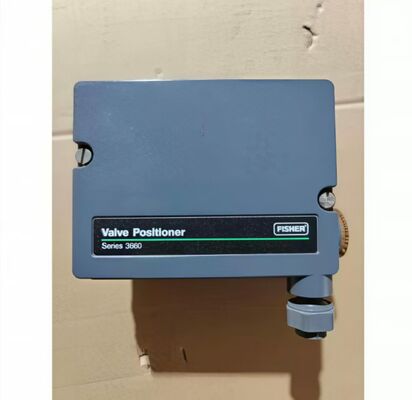

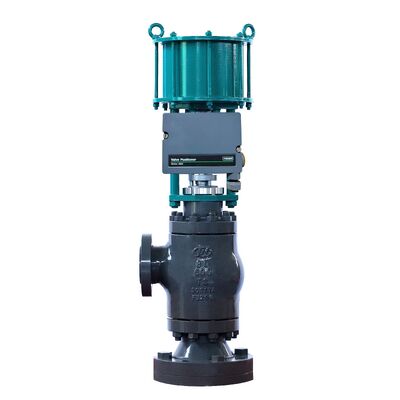

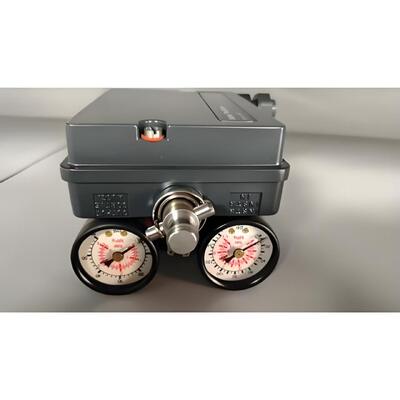

The Fisher 3661 Valve Positioner Package is a complete pneumatic valve control assembly supplied with the positioner body, mounting bracket, feedback linkage, pressure gauges, filter regulator, tubing, fittings, terminal block, manual, calibration certificate, and a 12-month warranty. It is factory pre-assembled and pre-tested, which helps plant teams reduce commissioning time and avoid the effort of sourcing and matching separate parts. The package accepts a 4-20 mA DC input signal and converts it into a stable pneumatic output for accurate valve stroke control. It includes mechanical travel feedback for dependable position monitoring and supports local zero and span adjustment for fine tuning. The design works well for both new installations and retrofit projects, helping maintenance teams standardize spare parts and reduce downtime.

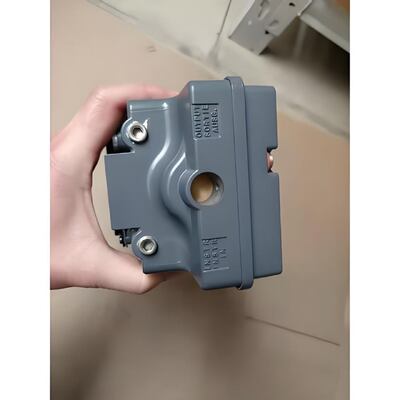

The enclosure is built for industrial environments and protects internal components from dust, water, and vibration. It operates reliably over a wide ambient temperature range and accepts common instrument air supply pressures. Control options include local calibration, pneumatic output adjustment, and mechanical indication. The package is suitable for chemical, petrochemical, oil and gas, power, water, and general process industries. Its modular construction reduces maintenance effort and supports long-term reliability with predictable spare parts planning. Every package is backed by a 12-month warranty.

Technical Specifications

Application Industry

1. Chemical processing

2. Petrochemical refining

3. Oil and gas production

4. Power generation

5. Water and wastewater treatment

6. Pharmaceutical manufacturing

7. Food and beverage processing

8. Pulp and paper
   These industries require accurate valve positioning, stable pneumatic output, and dependable mechanical feedback. The package performs well in humid, dusty, and vibrating plant environments when installed and maintained correctly. It supports flow, pressure, and level control loops that use pneumatic control valves.

Common Problems

1. Valve does not move: check 4-20 mA signal, air supply, and actuator linkage.

2. Positioner output unstable: verify supply pressure stability and nozzle condition.

3. Valve hunting: inspect tuning, actuator sizing, and feedback linkage.

4. Air leakage: check fittings, gaskets, and relay assembly.

5. Incorrect feedback: inspect feedback linkage, cam, and calibration.

6. Zero drift: confirm mounting stability and recalibrate zero and span.

7. Moisture in air line: service filter regulator and install dryer if needed.

8. Manual override issue: check bypass, linkage, and actuator spring.

9. Output pressure error: inspect I/P converter, nozzle, and relay.

10. Signal loss: verify loop wiring, power, and input signal range.
    All units are backed by a 12-month warranty.

Replacement Models

1. Fisher 3660

2. Fisher 3661-0

3. Fisher 3582i

4. Fisher 3610J

5. Fisher 3620J

6. Fisher 3720

7. Fisher DVC2000

8. Masoneilan SVI1000
   Selection note: confirm mounting standard, travel range, input signal, supply pressure, and actuator compatibility.
