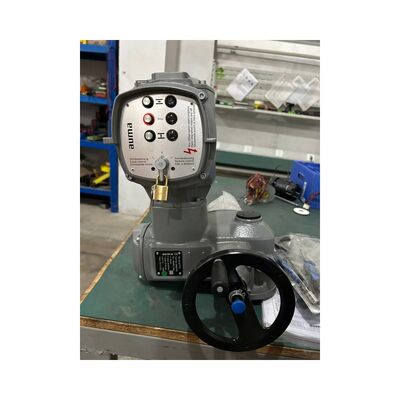

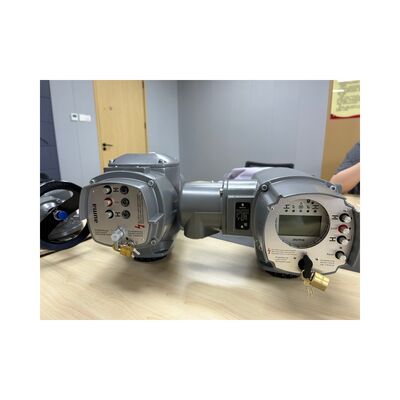

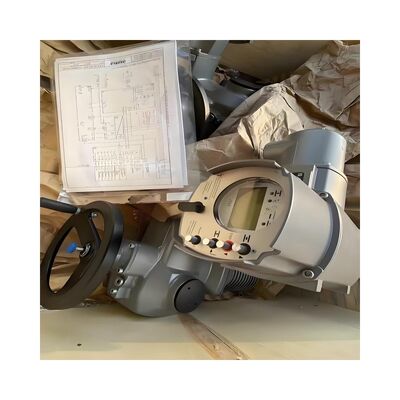

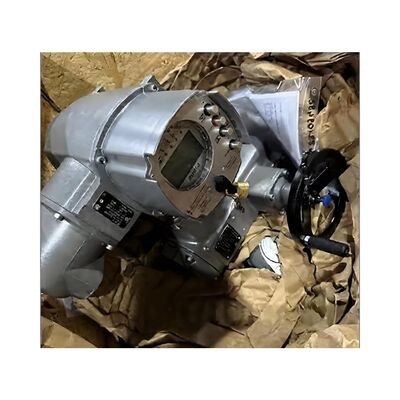

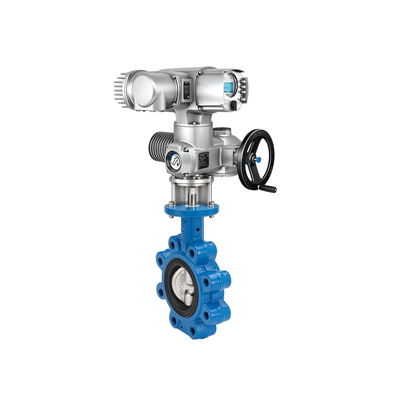

Industrial AUMA SA Series Multi-Turn Electric Actuator Package for Smart Control

Product Overview
The AUMA SA Series Multi-Turn Electric Actuator Package is a fully integrated valve automation package that comes with the actuator body, motor, gearbox, handwheel, limit switches, torque switches, control unit, mounting flange, terminal box, manual, calibration certificate, and a 12-month warranty. It is factory pre-assembled and pre-tested, which allows plant teams to reduce commissioning time and avoid the work of sourcing and matching separate components. The package delivers multi-turn electric operation for gate, globe, and other multi-turn valves, with adjustable torque and limit switching for reliable end-position control. It supports local and remote control, status feedback, and optional communication interfaces for plant integration. Manual override through the handwheel allows safe operation during power loss or maintenance. The design is suitable for both new installations and retrofit projects, helping maintenance teams standardize spare parts and reduce downtime.
The enclosure is built for industrial environments and protects internal electrical components from dust, water, and vibration. It operates reliably over a wide ambient temperature range and accepts common industrial power supplies. Control options include local pushbutton operation, remote electrical control, limit and torque protection, and diagnostic status reporting. The package is suitable for chemical, petrochemical, oil and gas, power, water, and general process industries. Its modular construction reduces maintenance effort and supports long-term reliability with predictable spare parts planning. Every package is backed by a 12-month warranty.

Technical Specifications

Application Industry

1. Chemical processing

2. Petrochemical refining

3. Oil and gas production

4. Power generation

5. Water and wastewater treatment

6. Pharmaceutical manufacturing

7. Food and beverage processing

8. Pulp and paper
   These industries require reliable valve automation, accurate torque control, and dependable position feedback. The package performs well in humid, dusty, and vibrating plant environments when installed and maintained correctly. It supports on-off, modulating, and isolation duty for multi-turn valves in continuous and batch processes.

Common Problems

1. Actuator does not run: check power supply, control signal, and motor protection.

2. Torque switch trips early: verify torque setting, valve friction, and stem alignment.

3. Limit switch fails to stop: inspect limit cam, switch wiring, and calibration.

4. Handwheel difficult to engage: check clutch mechanism and manual override lever.

5. Actuator runs but valve does not move: inspect stem coupling, valve stem, and gearbox.

6. Remote control failure: verify control wiring, relay contacts, and communication settings.

7. Excessive noise or vibration: check motor bearings, gearbox lubrication, and mounting.

8. Enclosure condensation: inspect breather, gasket, and heater operation.

9. Position feedback incorrect: calibrate limit switches and feedback potentiometer.

10. Motor overheating: check duty cycle, ambient temperature, and load torque.
    All units are backed by a 12-month warranty.

Replacement Models

1. AUMA SA 07.1

2. AUMA SA 10.1

3. AUMA SA 14.1

4. AUMA SAExC

5. AUMA SQ Series

6. Rotork IQ3 Series

7. SIPOS 7 Series

8. Limitorque MX Series
   Selection note: confirm torque, output speed, flange size, stem diameter, control signal, power supply, and communication protocol.
