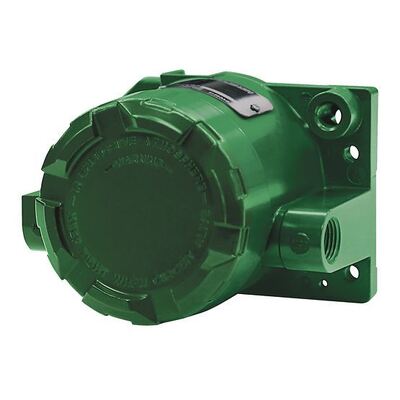

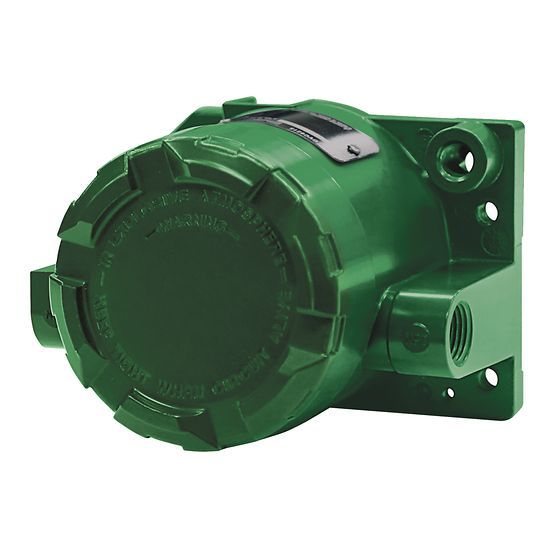

Fisher FIELDVUE 4400 Digital Position Transmitter Transmitter 4-20 mA Feedback with Valve

Fisher 4210, 4211 and FIELDVUE 4400 are valve position transmitters used to monitor the position of industrial valves and other moving equipment. They provide position feedback to help operators and control systems identify whether a valve is in the required position.

The Fisher 4210 and 4211 belong to the earlier 4200 series. These instruments use a mechanically connected potentiometer to detect movement. The FIELDVUE 4400 uses non-contact position sensing and provides digital communication and diagnostic functions.

The 4400 is the recommended replacement direction for most retired 4200 series models. However, replacement suitability depends on the existing installation, feedback requirements and selected configuration.

For maintenance teams working with older Fisher equipment, identifying the original model and checking the mounting arrangement are important steps before ordering a replacement.

The 4210 and 4211 specifications vary by configuration. Confirm the original nameplate and product documentation before ordering. The 4400's available functions also depend on the selected configuration.

Fisher position transmitters are used where valve position feedback is needed for monitoring, maintenance or process control.

Typical application areas include:

• Oil and gas processing

• Petrochemical and chemical plants

• Power generation

• Water and wastewater treatment

• Industrial process control

• Critical isolation valve applications

• Automated valve monitoring systems

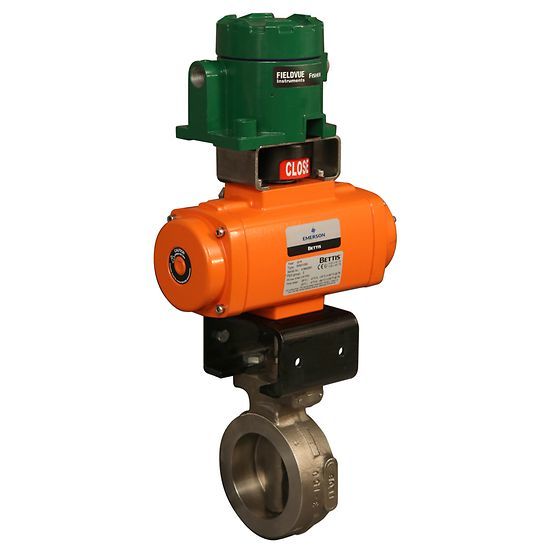

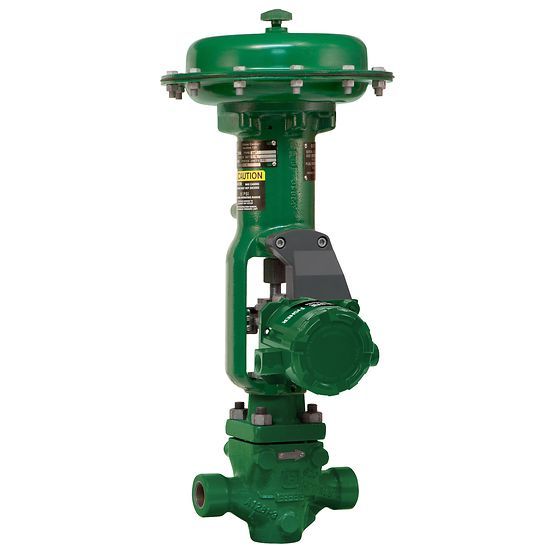

The FIELDVUE 4400 can be used with rotary and sliding-stem valves. It can also be applied to other equipment, including vents and dampers, where the installation is compatible.

Check the instrument wiring, signal loop and mechanical or magnetic feedback arrangement. For older 4210 and 4211 models, inspect the potentiometer coupling and related mechanical components.

Check the mounting, travel range and calibration. Incorrect mechanical alignment or an unsuitable feedback arrangement can cause the reported position to differ from the actual valve position.

Confirm whether the installed model includes the required limit alarm or switch function. Check the wiring and switching configuration before replacing the complete instrument.

Older instruments may use a different mounting arrangement or feedback mechanism from the 4400. Confirm the valve travel, mounting kit, output signal and required functions before selecting a replacement.

The 4400 provides diagnostic information such as cycle count, travel accumulation, dwell time and opening or closing time. These capabilities should not be assumed to be available on older 4210 or 4211 instruments.

The FIELDVUE 4400 is the recommended replacement direction for most Fisher 4200 series position transmitters, including the 4210 and 4211 families. The exact replacement configuration must still be checked.

• Fisher 4210: Retired for most orders. Consider the FIELDVUE 4400 for replacement after checking the installation.

• Fisher 4211: Supported for nuclear orders only under the published lifecycle status. Consult the appropriate nuclear product channel where applicable; for other replacement projects, evaluate the FIELDVUE 4400.

• Fisher FIELDVUE 4400: The current replacement option for compatible applications requiring position feedback and additional diagnostic functions.

Before ordering, confirm the existing model, mounting arrangement, valve travel, signal requirements, limit switch requirements and hazardous-area classification.

We can help identify the required model from the nameplate, existing instrument photos or equipment information.

For older Fisher position transmitters, we focus on checking the installation and required functions before recommending a replacement.

Our product range covers valve positioners, position transmitters, control valves, actuators and related process instrumentation.

We support product quotation, configuration confirmation, order coordination and international delivery arrangements.

We recommend confirming the model, output, mounting and optional functions before placing an order, particularly for legacy instruments.

Availability varies by model and configuration.

The Fisher 4210 is retired for most orders, while the 4211 has a restricted nuclear-order status. Availability of remaining units, spare parts and support should be confirmed individually.

The FIELDVUE 4400 is the recommended replacement direction for most compatible applications. Its availability and delivery time depend on the selected configuration and order quantity.

Please provide the model number and required quantity to check current supply options.

For replacement inquiries, please provide a clear nameplate photo and photos of the existing instrument and mounting arrangement.
