Brand: | FANUC | Product Name: | M-20iB 6-axis Industrial Robot For FANUC |
---|---|---|---|
Controlled Axes: | 6 | Max. Payload At Wrist: | 25kg |
Repeatability: | ±0.03mm | Installation: | Floor, Upside-down, Angle |
Mass: | 210kg | Matching Controller: | R-30iB/R-30iB Plus 12kVA |
Type: | Handing Robotic Arm, Automatic Control | Motion Range: | 1350mm, 500mm |
Other: | Intelligent Equipment | Port: | Shanghai Port |
High Light: | fanuc material handling robot,fanuc industrial robots |
FEATURE

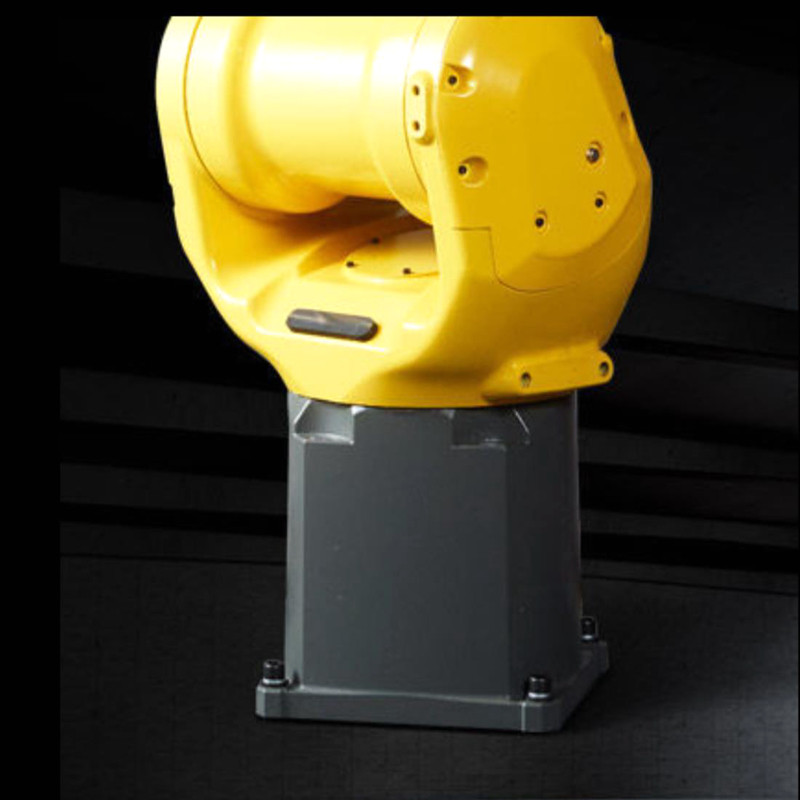

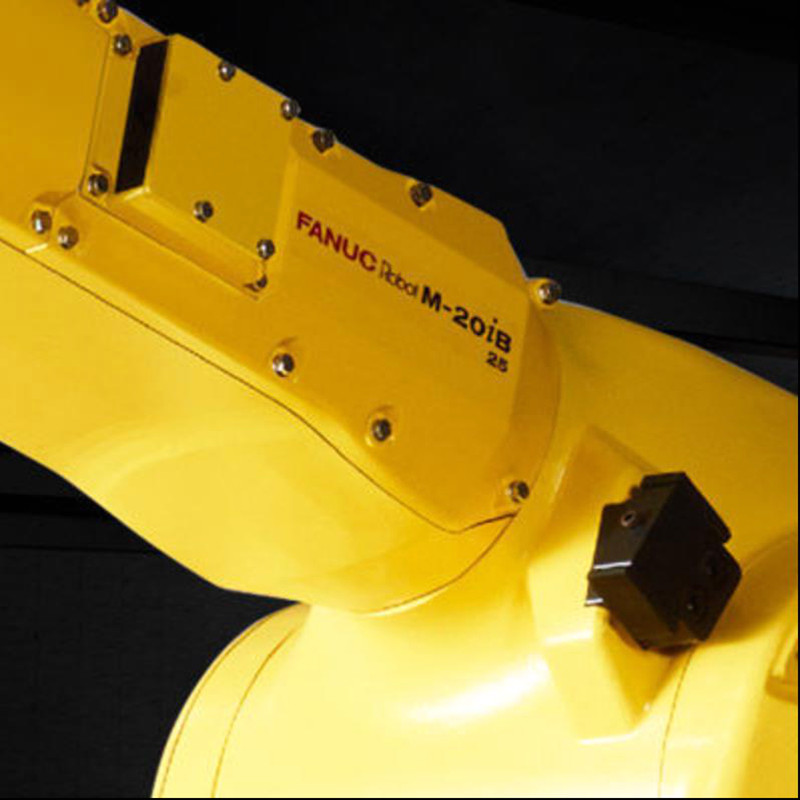

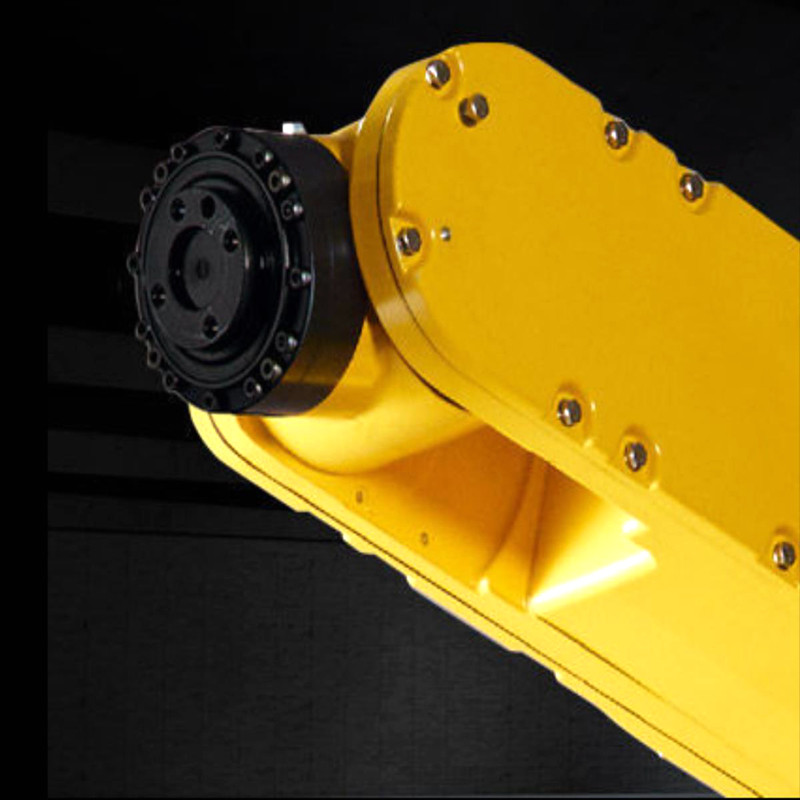

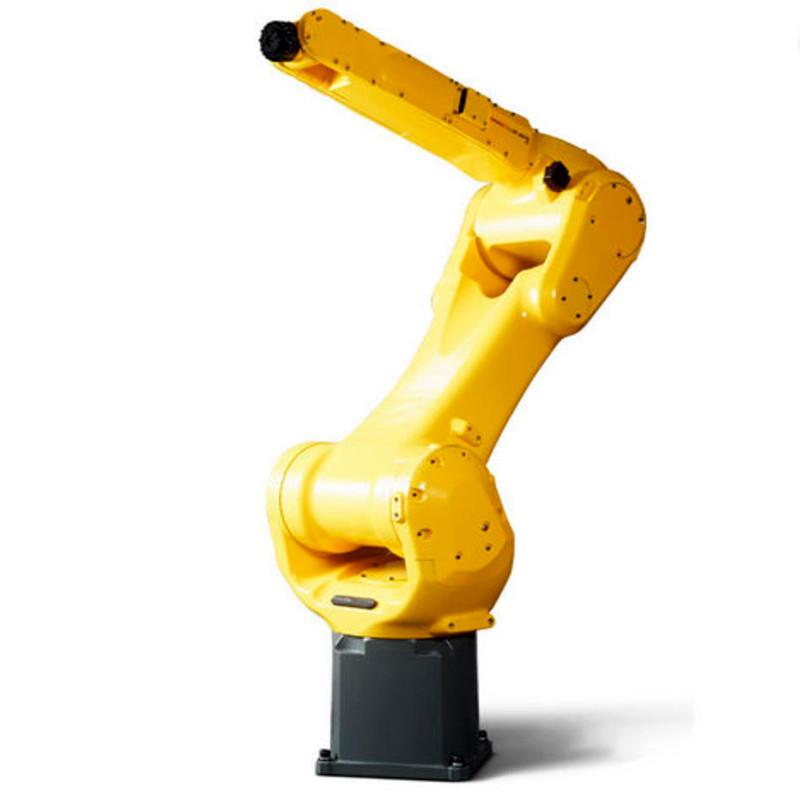

- FANUC Robot M-20iB/25
This is a high speed general-purpose robot suitable for various applications, such as handling, assembling, and de-burring.
Specifications
Controlled axes
|
6
|
Max. payload at wrist
|
25kg
|
Motion range (X, Y)
|
1853mm, 3345mm
|
Repeatability
|
±0.02mm
|
Mass
|
210kg
|
Installation
|
Floor, Upside-down, Angle
|
Application
|
Mold handling, Deburring
|
Matching controller / Input power capacity
|
R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 12kVA
|
