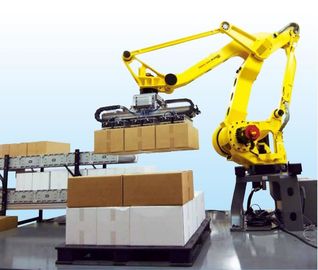

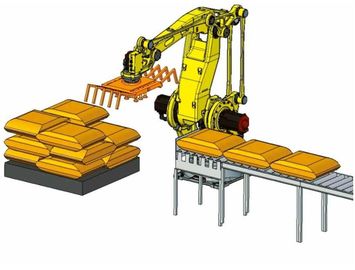

The M-410iC/500 palletising robot replaces the M-410iC/450. Stronger and faster than the 450, the M-410iC/500 improves throughput and will lift 500 kg. Designed specifically for the job by the company that built the world's first dedicated palletising robot, the M-410 series is the solution for palletising and handling applications.
1. The installation of gripper cables is done through, and not around, the robot. This makes the gripper cabling highly dependable, thanks to the shorter cabling without any interference with other elements (part or gripper). The programming becomes easier and the uptime is increased, giving a much superior performance at no extra cost.
2. The best model can be selected according to the workpiece to be transported: FANUC Robot M-410iC/500: can handle 500kg
|
SPECIFICATIONS
|
|
Product name
|
Hot selling 4 axis handling robot 3.1m reach Industrial robot arm M410 iC 500 palletizer robot
|
|
Controlled axes
|
4
|
|
Max. payload at wrist
|
500kg
|
|
Repeatability
|
±0.05mm
|
|
Reach
|
3143mm
|
|
Mass (without controller)
|
1600kg
|
|
Drive method
|
Electric servo drive by AC servo motor
|
|
Installation
|
Floor
|
|
Matching controller / Input power capacity
|
R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
|
|
Robot Motion Speed
|
|
|
J1
|
85 °/s (1.48 rad/s)
|
|
J2
|
85 °/s (1.48 rad/s)
|
|
J3
|
85 °/s (1.48 rad/s)
|
|
J4
|
200 °/s (3.49 rad/s)
|
|
Robot Motion Range
|
|
|
J1
|
±370°
|
|
J2
|
±144°
|
|
J3
|
±136°
|
|
J4
|
±720°
|
|
Application
|
Palletizing Robots
|
.
