Pressure Reducing Fisher Ezr Relief Valve , Stainless Steel Back Pressure Regulator

Basic Information
Place of Origin: Sichuan, China
Brand Name: Fisher
Model Number: EZR
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Stainless Steel
Temperature Of Media: Medium Temperature Pressure: Medium Pressure
Power: Pneumatic Media: Gas
Port Size: Standard Structure: Pressure Reducing
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

self operated regulator

,

fisher relief valve

Product Description

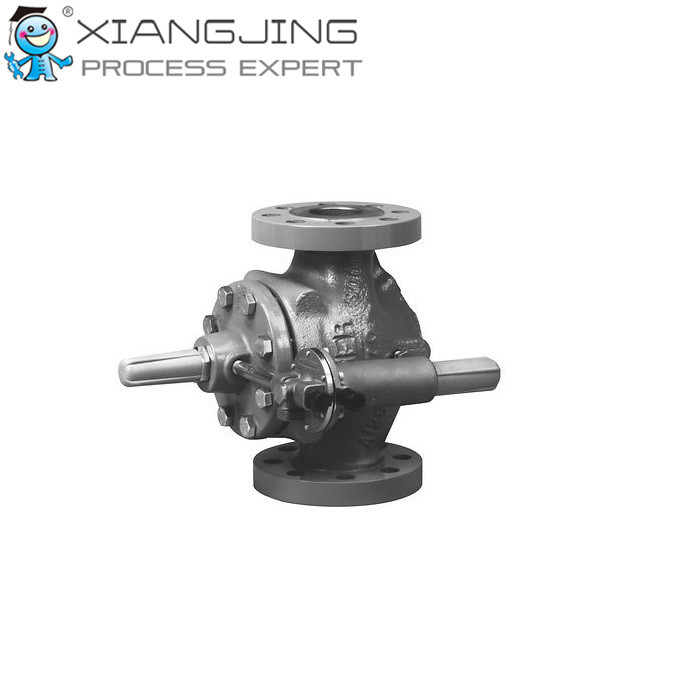

Fisher Type EZR Relief Valve or Backpressure Regulator

Fisher Type EZR pilot-operated, pressure relief valve or backpressure regulator is typically used in city gate and district stations as a relief valve for overpressure protection, or in commercial and industrial applications as a backpressure regulator. It provides smooth, quiet operation, tight shutoff, and long life, even in dirty service.



Specifications

Body Sizes and End Connection Styles Body Sizes: NPS 1, 2, 3, 4, 6, 8 / DN 25, 50, 80, 100, 150, 200
End Connections: CL150 RF, CL300 RF, CL600 RF, NPT, CL125 FF, CL250 RF, SWE, and BWE
Minimum Relief Set Pressure 20 psig / 1.4 bar
Maximum Relief (Inlet) Pressure 1050 psig / 72.4 bar
Temperature Capabilities 17E68 Nitrile (NBR): -20 to 150°F / -29 to 66°C
17E97 Nitrile (NBR): 0 to 150°F / -18 to 66°C
17E88 Fluorocarbon (FKM): 0 to 260°F / -18 to 127°C



Features

Quiet Operation—The standard cage provides best-in-class noise reduction, making the EZR Series 6-8 dBa quieter than comparable flexible element regulators.
High Capacity—The flow path of the EZR Series produces best-in-class capacity combined with the quietest operation. Fisher™ products are laboratory tested so 100% of the published flow capacity can be used with confidence.
Long Life—The field proven dipahragm design incorporates layered fabric, a raised bead edge and molded shape to increase strength, durability, and service life
Debris Protection—The revolutionary flow path of the EZR Series cage minimizes the damage from debris while the stainless steel inlet strainer prevents large particles from damaging the diaphragm.
Tight Shutoff—The metal plug is designed to deflect particles and debris away from the diaphragm, providing superior shutoff and increasing the time between maintenance intervals.
Travel Indicator—Simplifies in-service inspection and system troubleshooting
Versatility—By changing from a relief piloting system to a pressure reducing piloting system, a Type EZR relief valve or backpressure regulator easily becomes a pressure reducing regulator.
