Pneumatic Medium Pressure Reducing Valve Fisher Series Regulator Gas Media

Basic Information
Place of Origin: China
Brand Name: Fisher
Model Number: EZH and EZHSO Series
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Stainless Steel
Temperature Of Media: Medium Temperature Pressure: Medium Pressure
Power: Pneumatic Media: Gas
Port Size: Standard Structure: Pressure Reducing
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

back pressure regulator

,

self operated regulator

Product Description

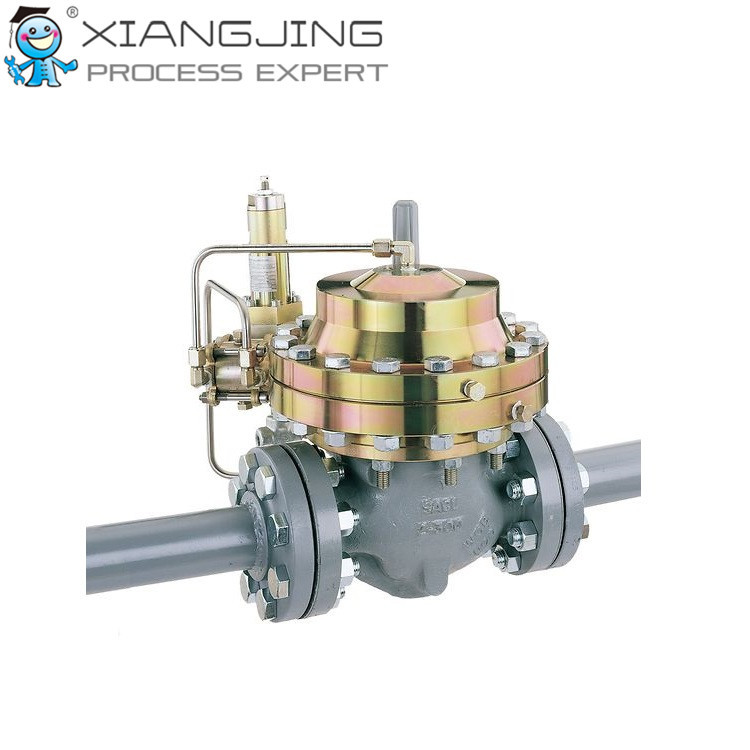

Fisher EZH EZHSO EZHSOX EZHSOX-OSX Series Regulator

EZH (Spring-to-Close) and EZHSO (Spring-to-Open) Series regulators are accurate pilot-operated, pressure balanced, soft-seated regulators. They are designed for use in high pressure natural gas transmission/city gate stations, large capacity distribution systems, and power plant feeds. They provide smooth, reliable operation, tight shutoff and long life.



Specifications

Available Configurations Type EZH (Spring-to-Close) and EZHSO (Spring-to-Open): Control range of 14.5 to 1160 psig / 1 to 80 bar
Type EZHOSX and EZHSO-OSX: Type EZH and EZHSO with integrated Type OS2 slam-shut device
Body Sizes and End Connection Styles Body Sizes: NPS 1, 2, 3, 4 / DN 25, 50, 80, 100
End Connections: NPT, CL150 RF, CL300 RF, CL600 RF, BWE, SWE
Maximum Allowable Pressures Inlet Pressure: 1500 psig / 103 bar
Outlet (Casing) Pressure: 1500 psig / 103 bar
Emergency Casing Pressure: 1500 psig / 103 bar
Outlet Pressure Range 14.5 to 1160 psig / 1.0 to 80.0 ba
Temperature Capabilities Nitrile (NBR) Version: -20 to 180°F / -29 to 82°C
Fluorocarbon (FKM) Version: 0 to 180°F / -18 to 82°C



Features

Absolutely No Atmospheric Bleed—Eliminates nuisance and wasteful bleed gas to atmosphere by utilizing a pilot-operated control system, which bleeds 100% of the gas to the downstream system.
Bubble-Tight Shutoff—A knife-edged metal plug and soft seat provide bubble tight shutoff for use in applications where positive shutoff is required such as dead-end systems.
Long Life in Severe Service Applications—The metal plug design deflects particles and debris away from the soft-seat, which gives excellent particle erosion resistance, prolonging service life.
Failure Mode Options—The Type EZHSO spring-to-open design can be utilized to maximize uptime while the Type EZH spring-to-close design can be utilized to protect downstream assets. For many customers, combining the two technologies with a Type EZHSO worker and Type EZH monitor incorporates the best of both worlds.
Precise Pressure Control—Provides stable and accurate downstream pressure control regardless of load changes or inlet pressure variations.
Quiet Operation—The Whisper Trim™ Cage option reduces noise by up to 8 dBa at the source, eliminating the need for expensive path treatments such as insulation, buried valves, and enclosures which only mask noise.
Full Pressure Rating—The equal inlet and outlet pressure rating of 1500 psig / 103 bar, which allows easier selection and requires no special startup or shutdown procedures.
Integral Slam Shut Configurations—Types EZHOSX and EZHSO-OSX discontinue gas service by shutting the gas off if there is an overpressure or underpressure condition.
