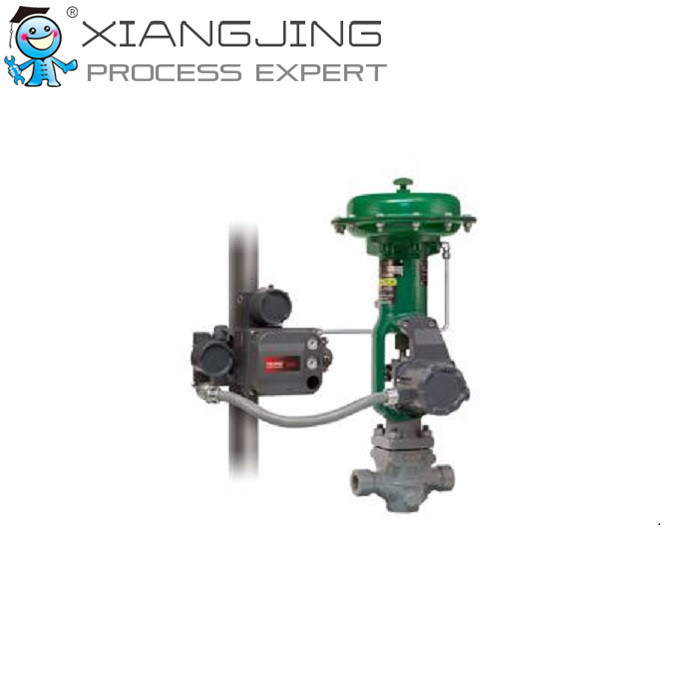

High Performance Pressure Reducing Valve DVC6205 Digital Valve Positioner

Fisher DVC6205 Digital Valve Positioner

The performance of the Fisher FIELDVUE DVC6205 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored 24/7 to evaluate performance and reliability.

Specifications

Area Classification: Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM

Certifications: CSA, FM, ATEX, IECEx, CUTR, Lloyd's Register, Peso, KGS, INMETRO, NEPSI, TIIS, Natural Gas Certified, Single Seal Device

Communication Protocol: FOUNDATION Fieldbus

Data Interface: Wired

Diagnostics: Yes

Input Signal: Electric

Max Outlet Pressure: 145 psig

Mounting Type: Integral Mounted

Operating Temperature: Standard Temperature, High Temperature

Position Control: Throttling Control, On/Off

Power Source: Local

Process Control: Flow, Pressure, Temperature, Level

Supply Media: Air, Natural Gas, Nitrogen

Other Configurations: Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.

                                                                                                   Features

• The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
• The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
• Provides quick responsiveness to large step changes and precise control for small setpoint changes.
• The DVC6200f is a FOUNDATION™ fieldbus communicating device, so information can be accessed anywhere along the segment. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.
• Create or delete function blocks in the device to customize the device for a specific application.
• When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
• The self-diagnostic capability provides valve performance and health evaluation.
• Improved maintenance decisions are possible due to easy access to the condition of the valve.
• Perform a Partial Stroke Test to detect valve failures without disrupting the process.

Supply Pressure
Minimum Recommended: 0.3 bar (5 psig) higher thanmaximum actuator requirements
Maximum: 10.0 bar (145 psig) or maximum pressure rating of the actuator, whichever is lower

Output Signal
Pneumatic signal, up to full supply pressure
Minimum Span: 0.4 bar (6 psig)
Maximum Span: 9.5 bar (140 psig)
Action: Double, Single Direct or Reverse

Weight
Aluminum: 3.5 kg (7.7 lbs)
Stainless Steel: 8.6 kg (19 lbs)

1. Swift delivery

 For common parts, we can deliver the goods within 3 days

2. Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3. Quality Assurance

4. Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.

5. Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.
