Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry

Basic Information
Place of Origin: Sichuan, China
Brand Name: Fisher
Model Number: 92B
Minimum Order Quantity: 1 Set/Sets
Price: Negotiation
Packaging Details: Packing type: cardboard box/non-fumigation wooden box
Supply Ability: 100 Set/Sets per Month
Application: General Material: Stainless Steel
Temperature Of Media: High Temperature Pressure: High Pressure
Power: Pneumatic Media: Gas
Port Size: Standard Structure: Pressure Reducing
Standard Or Nonstandard: Standard Port: Main Ports In China
High Light:

self operated regulator

,

fisher relief valve

Product Description

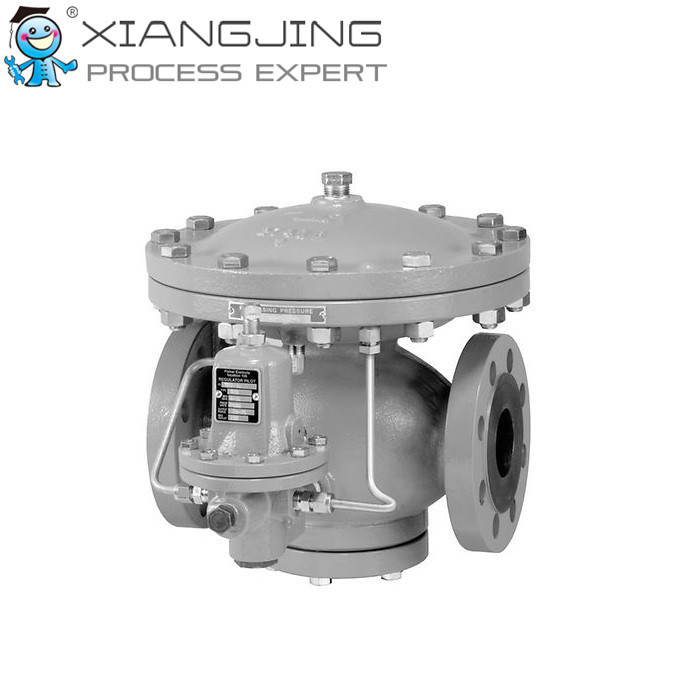

Fisher Type 92B Self-Powered Control Valve

Type 92B Pressure Reducing Valve (PRV) is the standard steam valve for the industry. It can withstand dirty operating environments while providing accurate and stable pressure control. Type 92B steam valve is designed to provide decades of continuous service. Type 92B steam valve is applied as a main pressure reducing valve in industrial process heating applications such as heat exchangers, evaporators, digesters, and reactors.



Specifications

Pressure Registration External
Maximum Temperature 353° to 600°F / 178° to 316°C
Body Sizes NPS 1 / 1.5 / 2 / 3 / 4 | DN 25 / 40 / 50 / 80 / 100
End Connections NPT / BSPT / CL125FF / CL150RF / CL250RF / CL300RF / PN 16/25/40
Maximum Inlet Pressure 300 PSIG / 20.7 bar
Maximum Outlet Pressure 250 PSIG / 17.2 bar
Spring Ranges 2 to 250 PSIG / 0.138 to 17.2 bar
Additional Technical Data For additional technical information, contact your local Sales Office or refer to technical documentation.



Features

Extended Diaphragm Service Life
Two-Path Control
Resilient Seats
Bellows Stem Guide

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 0

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 1

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 2

Packaging & Shipping

 We can delivery the cargo to transport company within 3 days upon receiving of the cargos from the plant
Any question, please do not hesitate to contact me.

Our Services

1. Swift delivery

 For common parts, we can deliver the goods within 3 days



2. Original products

 All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.



3. Quality Assurance



4. Technical Support

 Including inspection,repair and maintenance, we can give all kinds of technical support.



5. Quickly responce

 Our staffs will keep 24h online and answer your question very quickly.

Company Information

 Xiangjing(Shanghai)M&E Tech. Co., Ltd is a valve and instrument distributor for a series of world-wide famous brands just like Emerson,Fisher,Rosemount,Masoneilan,Flowserve,Rotork,etc.
We have many common models in stock, so that we can offer our service in very short time.
Our office is located in Shanghai, we welcome your visit!

Shanghai Office

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 3

Beijing Office

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 4

Hunan Office

Self Powered Control Pressure Reducing Valve Stainless Steel Material For Industry 5

FAQ

Q. How long will you need before delivery?

A: We have many common models in stock, so that we can deliver the goods very soon(less than 3 days).

Q. What is your payment term?

A: Normally T/T 30% in advance, balance to be paid before delivery, We also support the trade assurance,O/A.

Q: What is Trade Assurance?

A: Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

Q: Does Trade Assurance charge fees?

A: No. Trade Assurance is free for both buyers and suppliers.

Q: What kind of trade terms can you do?

A: EX-WORKS,FOB,CFR,CIF,etc.
