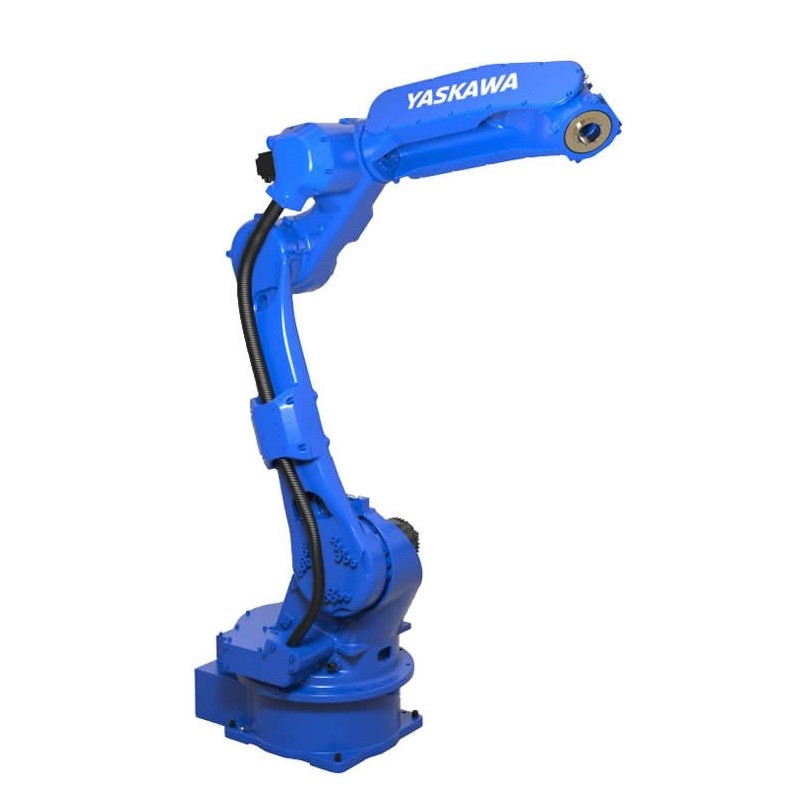

Material Cutting Trimming Lightweight Robotic Arm With 25kg Maximum Payload

Basic Information
Place of Origin: CHINA
Brand Name: YASKAWA
Model Number: GP25
Minimum Order Quantity: 1
Packaging Details: YASKAWA GP25 industrial robot arm standard wooden packing, WG:250 KG YRC1000 Controller standard packing, WG: 50 KG
Delivery Time: 4-6 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99+set+per month
Product Name: GP25 Material Cutting Trimming 6-axis Industrial Robot Number Of Axis: 6
Max Payload: 25 Kg Maximum Reach Range: 1730mm
Pose Repeatability(ISO 9283): ±0.06mm Controller: YRC1000 Controller
Mounting Position: Floor, Wall, Tilt, Ceiling Warranty: 1 Year
High Light:

universal robot arm

,

yaskawa welding robot

Yaskawa GP25 Die Cast, Dispensing, Material Cutting Trimming 6-axis industrial robot with YRC1000 controller

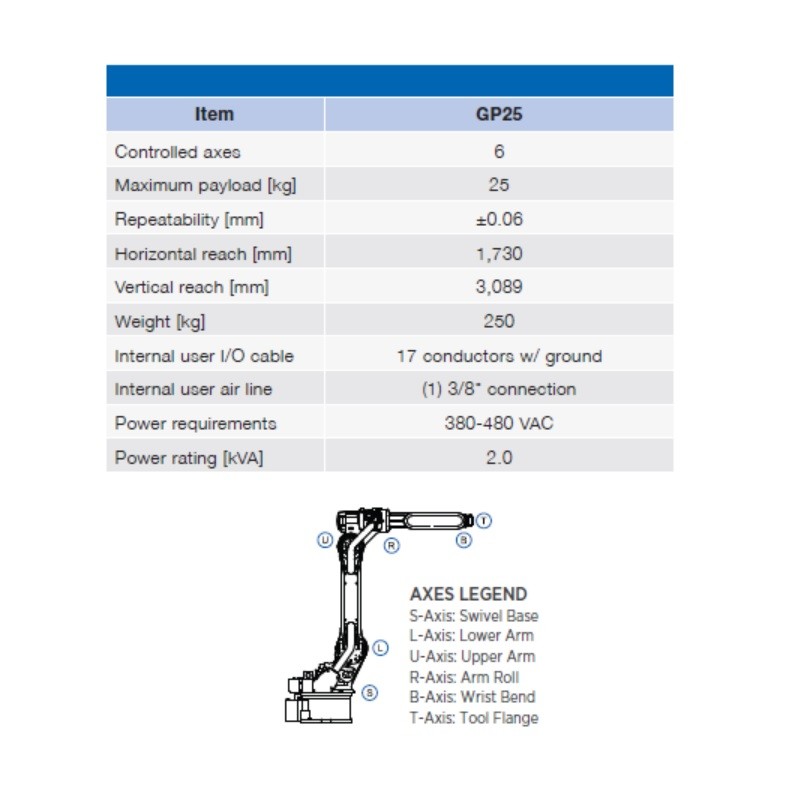

Main Specifications:

Model:GP25
Maximum reach:1730mm
Maximum payload:25kg
Pose repeatability:± 0.06mm
Number of axes:6
Weight:180 kg

Material Cutting Trimming Lightweight Robotic Arm With 25kg Maximum Payload 0



GP25 Introduction:

Key Benifits:

1. High payload, axis speed and wrist allowable moment ratings.

2. Space-efficient design

3. Engineered for easy installation, operation and maintenance.

Achieve high transfer capability with highest payload, speed and wrist allowable moment in its class. Ideal for high-volume handling and packaging applications. Reduced-interference design permits close proximity to other robots and process equipment.

The GP-series robots offer improved acceleration/deceleration control for all robot positions resulting in overall improved productivity. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient. A single cable is all that is needed to connect the manipulator to the controller, resulting in easy setup and reduced expenses for maintenance and spare parts inventory.



YASKAWA GP25 advantage:

· Increase your productivity with the fast and efficient GP25 robot.

. All axis speeds have been increased, some Over 40%, surpassing otherrobots in its class.

. Minimum acceleration/deceleration times provide high performance.

. Reduced interference design allows close proximity placement Of robots.

. Hollow upper arm provides optimal cable protection and longer life while simplifying programming. A 50 mm clearance through axes 4-6encloses the cable and protects it from wear, interference Or snagging.

. Patented double yoke upper arm design provides additional strength if the robot is crashed. Much stronger than other six-axis integrated cable designs.

· High wrist allowable moment for accurate and repeatable handling.

. Increased 25 kg payload, as well as increased moment and inertia ratings over previous models, allow larger and heavier loads to be carried by the robot.

. Single power and control cable reduces wiring time and increases work efficiency.

. New robot harness design for improved diagnostics and maintenance.

. Home position data can be saved without battery connection for easy maintenance.

. The GP25 has an lP67-rated wrist and an IP54 body standard. An XP (extra Protection) package that increases the body protection rating to IP65 is available.

. An anti-corrosive paint option is available for environments where harsh acidic Or alkaline cleaners are used, such as food processing facilities.

· The GP25 can be floor-, wall- or ceiling-mounted. Brakes are included on all axes.

· Compact YRC controller utilizes the light weight standard teach pendant with intuitive programming.



Applications:
Assembly, Die Cast, Dispensing, Material Removal, Material Cutting/Trimming, Material Handling, Pick and Place, IP65-67





Production Description



Product Name GP25 Die Cast, Dispensing, Material Cutting Trimming 6-axis industrial robot with YRC1000 controller for Yaskawa
Model GP25
Application Assembly, Die Cast, Dispensing, Material Removal, Material Cutting/Trimming, Material Handling, Pick and Place
Maximum reach 1730mm
Maximum payload 25kg
Pose repeatability (ISO 9283) ± 0.06mm
Number of axes 6
Mounting position Floor, Wall, Ceiling
Weight 180 kg
Protection rating IP65-IP67
Controller YRC1000 controller
Motion range
S 180° to -180°
L 155° to -105°
U 160° tp -86°
R 200° to -200°
B 150° to -150°
T 455° to -455°
