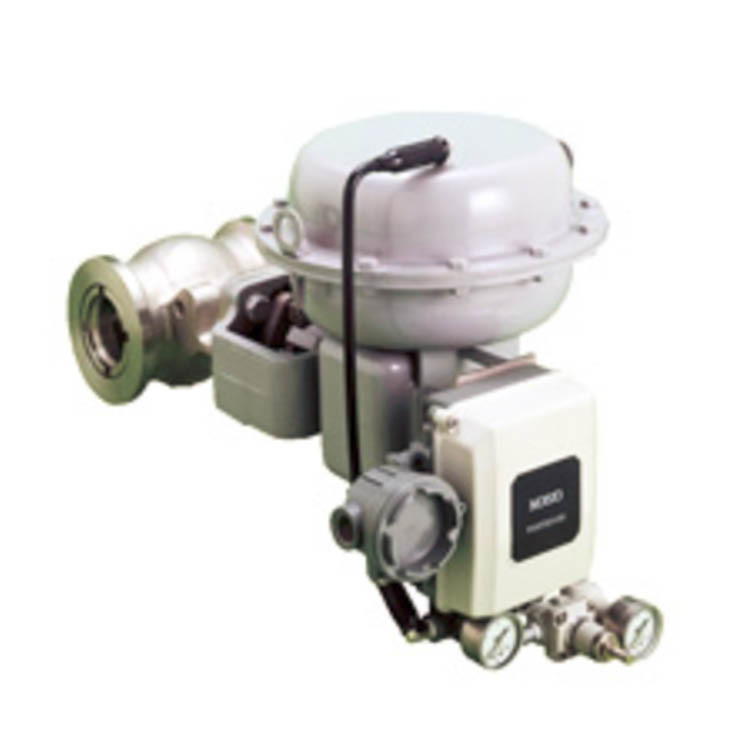

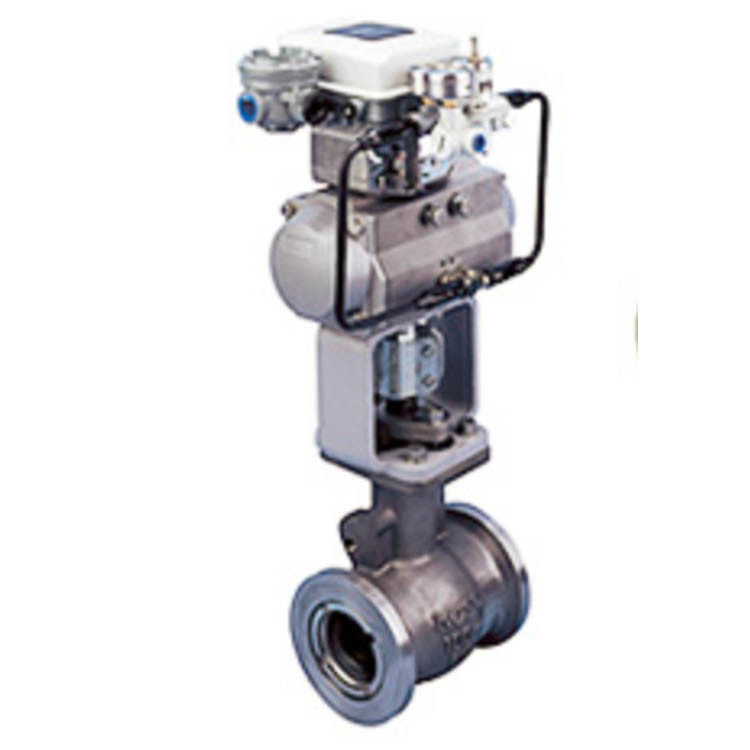

210E/220E eccentric segmental ball valve for control valve

Basic Information
Place of Origin: China
Brand Name: KOSO
Certification: CE
Model Number: 210E/220E
Minimum Order Quantity: 1 set
Price: USD 800/Set
Packaging Details: One 210E/220E eccentric segmental ball valve for KOSO control valve packed with one fumigation wooden box.
Delivery Time: 7 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/Month
Name: 210E/220E Eccentric Segmental Ball Valve For KOSO Control Valve With Flowserve Type: 210E/220E
Body Size: 1"(25A) To 12"(300A) Body Rating: ANSI Class 150 To 600, JIS 10K To 40K
Rangeability: 100:1 Fluid Temperature: -45 To +400°
Connections: Wafer Type Body Materials: SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. Etc.
Disc Treatment: Chrome Plated Or Stellited Seal Ring Materials: R.TFE, SUS316/Stellited, SUS630
High Light:

back pressure regulator

,

self operated regulator

 210E/220E eccentric segmental ball valve for KOSO

control valve





   SPECIFICATION



Body type 210E 220E
Body size 1"(25A) to 12"(300A) 1"(25A) to 16"(400A)
Body rating ANSI Class 150 to 600, JIS 10K to 40K ANSI Class 150 to 300, JIS 10K to 20K
Fluid temperature -45 to +400° -45 to +400°
Connections Wafer type Flanged (RF)
Body materials SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc.
Disc materials SCS14A
Disc treatment Chrome plated or Stellited
Seal ring materials R.TFE, SUS316/Stellited, SUS630
Rangeability 100:1
Flow characteristics Approximate Linear (Inherent Characteristic)
Leakage Metal seat Rated Cv × 0.01% ANSI Class IV
Soft seat Bubbletight ANSI Class VI
Actuator combination 6300RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator
5200RA: Pneumatic Diaphragm Actuator
3600RB: Solid State Electronic Actuator

     Product Description



210E: Eccentric Segmental Ball Valves (FLOWMAX E/Wafer)
220E: Eccentric Segmental Ball Valves (FLOWMAX E/Flanged)

This series is eccentric segmental ball valve for modulating application.

Comparing to globe valve, body is compact, ligh weight, and yet it has large Cv value, large rangeability,and can be

convertible to reduced bore type (60, 40% reduce ) by changing seal ring only.

210E/220E eccentric segmental ball valve for control valve 0210E/220E eccentric segmental ball valve for control valve 1
