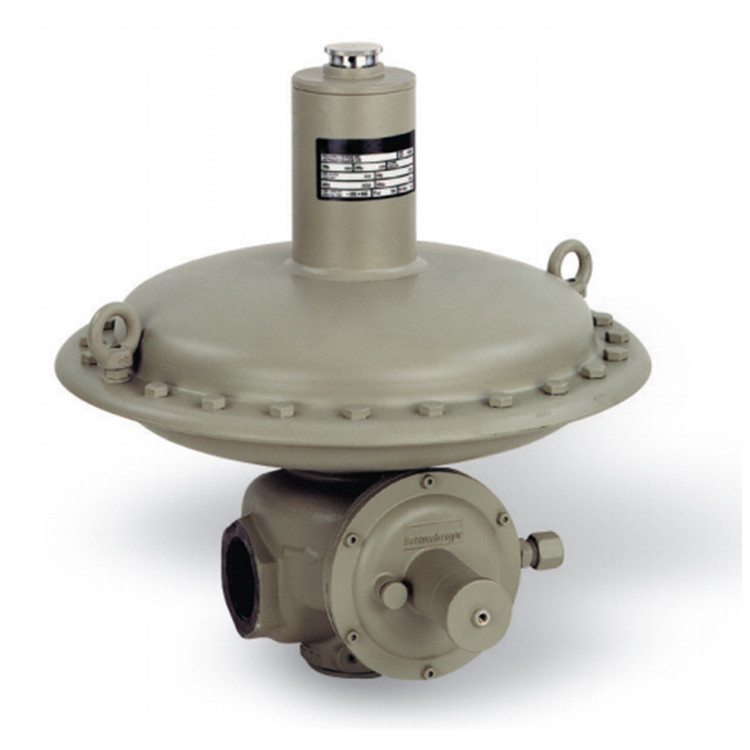

3/4" Pressure Reducing Valve RB1700/1800 19 Bar Inlet Pressure High Accuracy

Basic Information
Place of Origin: China
Brand Name: Itron
Certification: CE
Model Number: RB1700/1800
Minimum Order Quantity: 1 set
Packaging Details: One Itron Pressure Reducing Valve RB1700/1800 pressure regulator packed with fumigation wooden box.
Delivery Time: 7 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/Month
Name: Itron Pressure Reducing Valve RB1700/1800 Pressure Regulator Model: RB1700/1800
Inlet Pressure: 19 Bar Accuracy & Lock-up Pressure: Up To AC5 / Up To SG10
Outlet Pressure Range: 0.12 Bar - 2.5 Bar Operating Temperature: -20°C To +60°C
Ambient Temperature: -30°C To +60°C (body Material) Sizes: 3/4"
Body Materials: Spheroidal Graphite Cast Iron ISO 1083 Gr 500-7 Seals Material: Nitrile Rubber
High Light:

back pressure regulator

,

fisher relief valve

Pressure Reducing Valve RB1700/1800 pressure regulator





SPECIFICATION

Product name  RB1700/1800 pressure regulator with masoneilan SVI1000 control valve positioner
Inlet pressure 19 bar
Outlet pressure 0.12 bar - 2.5 bar
Accuracy & lock-up pressure Up to AC5 / up to SG10
Operating temperature -20°C to +60°C
Ambient temperature -30°C to +60°C (body material)
Diaphragm materials Synthetic rubber with fabric reinforcement
Body material Spheroidal graphite cast iron ISO 1083 gr 500-7
Internal parts materials Stainless steel and brass
Seals material Synthetic rubber with fabric reinforcement



Product  Description



The RB 1700 / RB 1800 series of regulators is designed for commercial applications, appliance pressure regulation, secondary regulation of plant distribution piping, and all installations with continuous consumption and rapid flow rate variations, such as burners, industrial ovens, boilers, etc.
