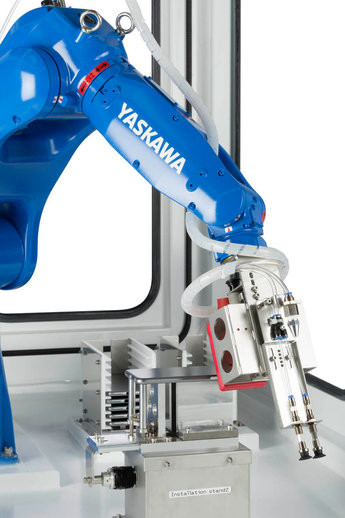

Yaskawa GP8 IP67 1.0KVA 727mm Six Axis Robot Arm

Basic Information
Place of Origin: China
Brand Name: Yaskawa
Model Number: MOTOMAN GP8 ACC
Minimum Order Quantity: 1 set
Packaging Details: ONE YASKAWA GP8 ACC industrial robot 6 Axis robot arm for pick and place in corrosive Environments machine packing with fumigation wooden frame, WG:205KG Controller and other parts packing with brown box, WG:75KG Total WG:280KG(>VG)
Delivery Time: 30 work days
Supply Ability: 5 sets per month
Product Name: Industrial Robot Arm GP8 ACC For Pick And Place Robots Function: Multifunctional
Controlled Axes: 6 Max. Payload: 8kg
Repeatability: ±0.02mm Max. Working Range R: 727mm
Temperature: 0-45 ℃ Humidity: 20%-80%
Weight: 32kg Power Supply, Average: 1.0KVA
High Light:

727mm Six Axis Robot Arm

,

1.0KVA Six Axis Robot Arm

,

Yaskawa GP8 Robot Arm

Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots



Main Specifications:

Model:GP8 ACC
Maximum reach:727mm
Maximum payload:8kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:32kg



Specification



Product Name Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots
Model GP8 ACC
Application Handling & General Application in corrosive Environments
Maximum reach 727mm
Maximum payload 8kg
Pose repeatability (ISO 9283) ± 0.02mm
Number of axes 6
Mounting position Floor, Wall, Ceiling
Weight 32kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller
Motion range
S 170° to -170°
L 145° to -65°
U 255° tp -113°
R 19 to -190°
B 135° to -135°
T 360° to -360°



Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots





GP8 ACC Introduction:

Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots

Increase Productivity

Highest payloads, speeds and wrist allowable moment in its class
• A variety of workpieces can be transferred and different grippers can be mounted with 8-kg payloads and 38 % greater allowable moment
• Speeds of all axes have been increased by 39 % (max)
• Acceleration/deceleration control has been improved to achieve maximum reduction of acceleration/deceleration times for all robot postures

Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots

Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots

Make Equipment compact

Slim and easy-to-use structure
• Slim robot body requires minimum installation space (minimizes L-U axis offset)
• The manipulator cable can be connected at the bottom section, which reduces interference with walls and requires far less installation space when compared with cable connections on the side of the robot
• Increased maximum reach and horizontal reach enables robots to operate in wider work areas
• The slim, straight, and symmetrical arm design minimize interference with peripheral devices even in small spaces

Industrial robot arm YASKAWA GP8 ACC for pick and place in corrosive Environments 8kg Payload 727mm Arm robots







KEY BENEFITS

• Anti-Corrosive painting allows robot to be used in environments with corrosive atmosphere such as acids, alkali and vapors
• Drip proof design assures smooth disposal of a liquid on the robot surface
• Excellent resistance to oil and chemicals
• Good abrasion resistance



Applications:
Handling & General Application in corrosive Environments, IP67
