Place of Origin:
China
Brand Name:
AUBO
Model Number:
i3
Contact Us

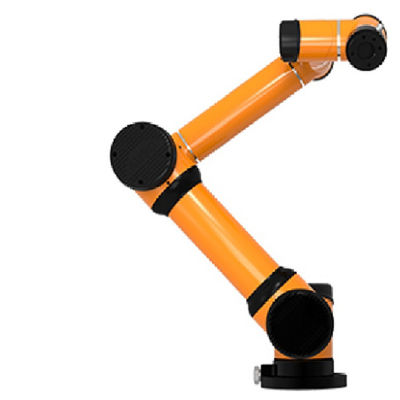

cobot of Aubo E3 collaborative robot arm 6 axis with low cost and flexible for mag welding robot
Robot arm | ||
Model | AUBO i3 | |
Maximum reach | 625mm | |
Maximum payload | 3 kg | |
Pose repeatability (ISO 9283) | ± 0.03mm | |
Number of axes | 6 | |
Mounting position | Any Angel | |
Lifetime | 30000H | |
Weight | 15.5 kg | |
Protection rating | IP54 | |
Power | DC48V | |
Communication Protocol | CAN Bus | |
Program | Operated on the AUBOPE graphical user interface of the 12.5-inch touch screen | |
Ambient temperature | 0-45℃ | |
environment humidity | 25-85%(No condensation) | |
Standard | CE/TUV/KCs | |

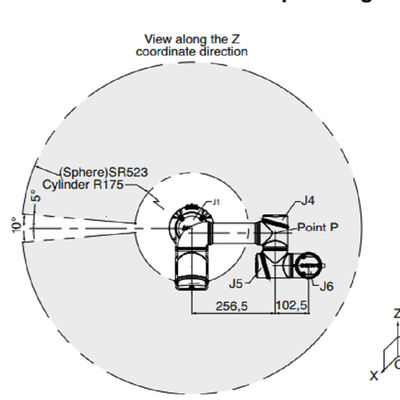

Motion range | ||
A1 | ±175° ; 180°/S | |
A2 | ±175° ; 180°/S | |
A3 | ±175° ; 180°/S | |
A4 | ±175° ; 180°/S | |
A5 | ±175° ; 180°/S | |
A6 | ±175° ; 180°/S | |
Controller Cabinet | ||
Size | 727mm*623mm*235mm | |
Weight | 20 Kg | |
length of cable | 5 M | |
Colour | Black | |
IP rating | IP54 | |
Power | 100-240VAC,50-60HZ | |
Digital input/output | 16/16 | |
Teach pendant | ||
Size | 355mm*235mm*54mm | |
Weight | 1.8 Kg | |
Screen | 12 inch resistive LCD touch screen | |
length of cable | 4 M | |
IP rating | IP54 | |
Colour | Black with orange |
Send your inquiry directly to us
