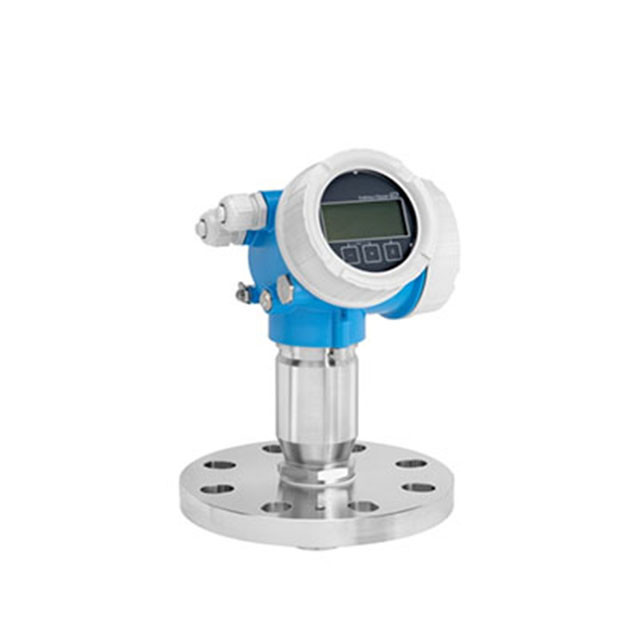

Radar measurement Micropilot FMR60 E+H level instrument

Basic Information
Place of Origin: Germany
Brand Name: E+H
Certification: ce eac
Model Number: FMR60 Radar measurement
Minimum Order Quantity: 1
Packaging Details: cartons
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 999 piece/month
Application: Level Instrument Model: Micropilot FMR60
Accuracy: +/- 1 Mm (0.04 In) Process Temperature: -40...+130 °C (-40...+266 °F)
Process Pressure: Absolute Vacuum ...16 Bar (Vacuum ... 232 Psi) Max. Measurement Distance: 50m (164 Ft)
Main Wetted Parts: PTFE Antenna PP Or 316L Process Connections Ambient Temperature: -40...+80 °C (-40...+176 °F)
Frequency: W-band (~80 GHz) Design Approvals: EN 10204-3.1
High Light:

50m Pressure Reducing Valve

,

PTFE Antenna Pressure Reducing Valve

,

232 Psi Pressure Reducing Valve

Radar measurement Micropilot FMR60 E+H level instrument



Specification



Product Name Radar measurement Micropilot FMR60 E+H level instrument
Model Micropilot FMR60
Application level instrument
Accuracy +/- 1 mm (0.04 in)
Process temperature -40...+130 °C (-40...+266 °F)
Process pressure absolute Vacuum ...16 bar (Vacuum ... 232 psi)
Max. measurement distance 50 m (164 ft)
Main wetted parts PTFE antenna PP or 316L process connections
Ambient temperature -40...+80 °C (-40...+176 °F)
Frequency W-band (~80 GHz)
OSafety approvals Overfill protection WHG SIL 2, SIL 3
Design approvals EN 10204-3.1

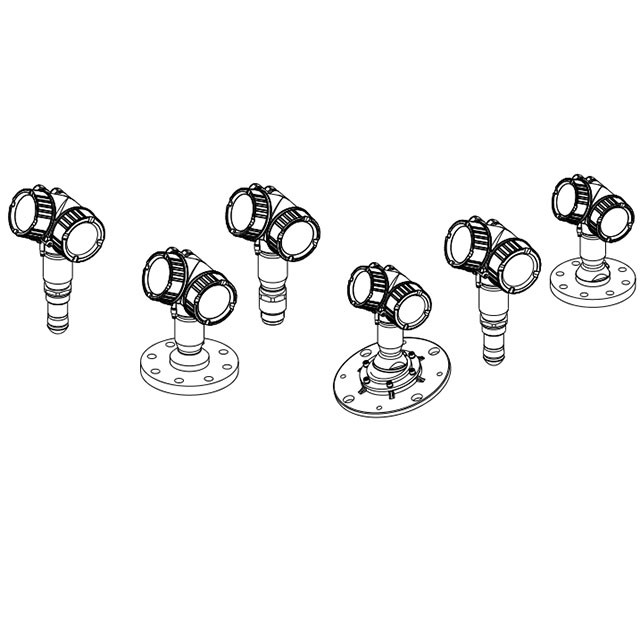

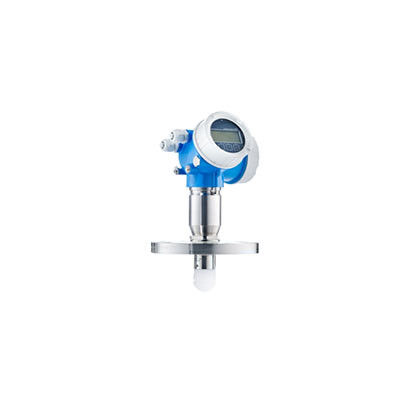

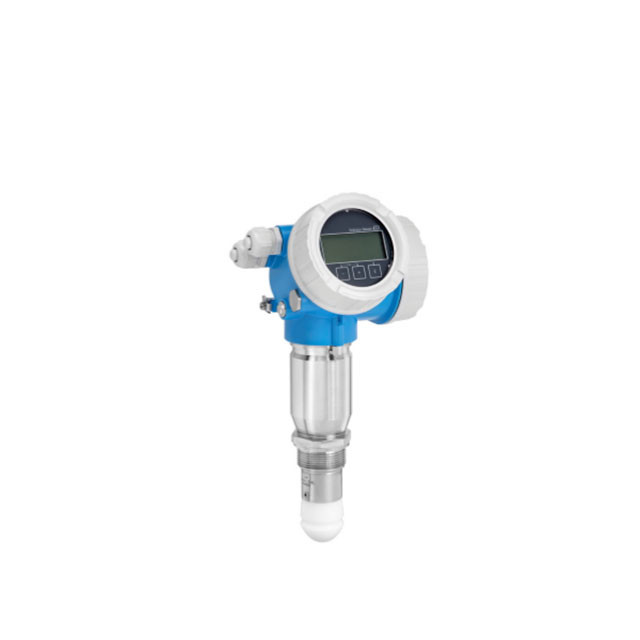

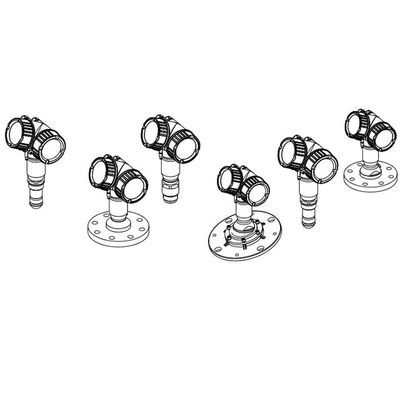

Detailed Images

Radar measurement Micropilot FMR60 E+H level instrument 0Radar measurement Micropilot FMR60  E+H level instrument Radar measurement Micropilot FMR60  E+H level instrument Radar measurement Micropilot FMR60  E+H level instrument Radar measurement Micropilot FMR60  E+H level instrument
