Golden Rain Welding Torches Clean Device For Welding Robot Arm Mig Mag Tig ARC

Basic Information
Place of Origin: China
Brand Name: Golden rain
Model Number: 2000S
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 4-10 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Name: Golden Rain Welding Torches Clean Device For Welding Robot Arm Mig Mag Tig ARC Brand: Golden Rain
Model: 2000S Compressed Air Sourcel: Oil-free Dry Air 6bar
The Required Air Volume: About 10L Per Second Program Control: Pneumatic
Voltage: U = 24V DC Gun Clearing Time: About 4-5 Seconds
Anti-splash Agent Capacity: 500ML Anti-splash Spray Volume: Adjustable
Supply: Electric
High Light:

Robot Welding Torches Clean Device

,

Mig Welding Torches Clean Device

,

Mag Welding Torches Clean Device

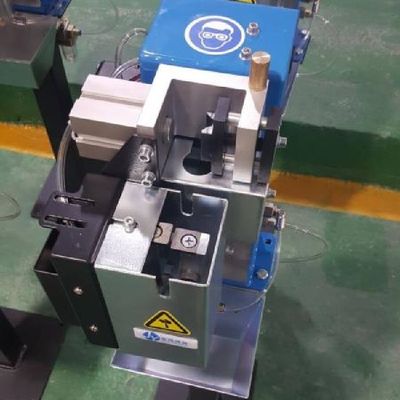

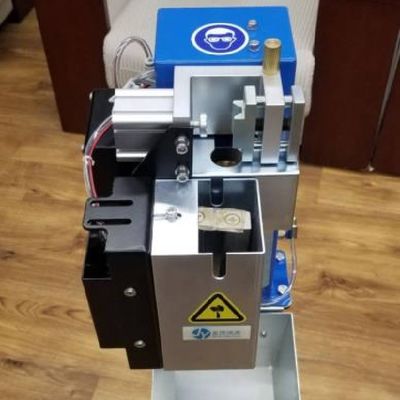

Golden rain welding torches clean device for welding robot arm mig mag tig ARC






Brand Golden Rain
Device model Gbs-2000s
Compressed air source Oil-free dry air 6bar
The required air volume about 10L per second
Program control Pneumatic
Voltage U = 24V DC
Gun clearing time about 4-5 seconds
Anti-splash agent capacity 500ml
Anti-splash spray volume adjustable
Weight about 14kg (without base)
1. The gun cleaning and spraying design at the same position of the gun cleaning and cutting mechanism, the robot only needs-a signal to complete the gun cleaning and fuel injection actions.
2. The whole process of cleaning the gun only takes 6-7 seconds, while other similar products require 12 seconds, which greatly saves the time for the robot to clean the gun and improves the working efficiency of the robot.
3. Please ensure that the important components of the gun's wire-cutting mechanism are protected by a high-quality casing to avoid the impact of collision, splash and dust.
1. Clear the gun
It can effectively remove welding spatter attached to the nozzle for various robot welding.
For severe "splash" paste, cleaning also has good results.
The position of the welding nozzle during the work process is provided by the V-shaped block for precise positioning.
2. Spray
The device can spray fine anti-spatter liquid in the nozzle to form a protective film, which effectively reduces the adhesion of welding spatter and prolongs the use time and accessories life.
The clean environment benefits from the sealed spray space and the remaining oil collection device
3. Shearing
The wire cutting device provides accurate and high-quality wire cutting work, removes the residual molten ball at the end of the welding wire, and ensures that the welding has a good starting Arc capability.
Long service life and high degree of automation.
