6 Axis Robot Arm GP225 Payload 225kg Reach 2702mm Material Handing Robot

Basic Information
Place of Origin: China
Brand Name: YASKAWA
Model Number: GP225
Minimum Order Quantity: 1set
Packaging Details: WOODEN BOX
Delivery Time: 30-60 Work days
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Controlled Axes: 6 Contoller: YRC1000
Repeatability: ±0.05mm Max. Payload: 225kg

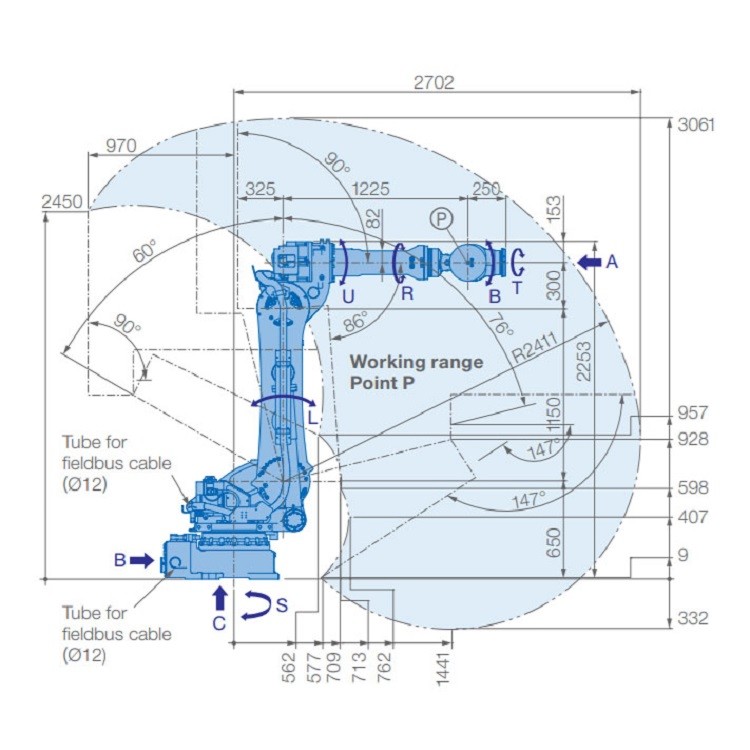

Max. Working Range R: 2702mm Weight: 1080kg
Temperature: 0 To +45℃ Humidity: 20 - 80%
Power Supply, Average: 5.0KVA Mounting Option: Floor
High Light:

Payload 225kg Yaskawa Robot Arm

,

Reach 2702mm Yaskawa Robot Arm

,

Floor Mounting Yaskawa Robot Arm

6 Axis Robot Arm GP225 Payload 225kg Reach 2702mm for Material Handing Fast and Accurate Material Handing Robot

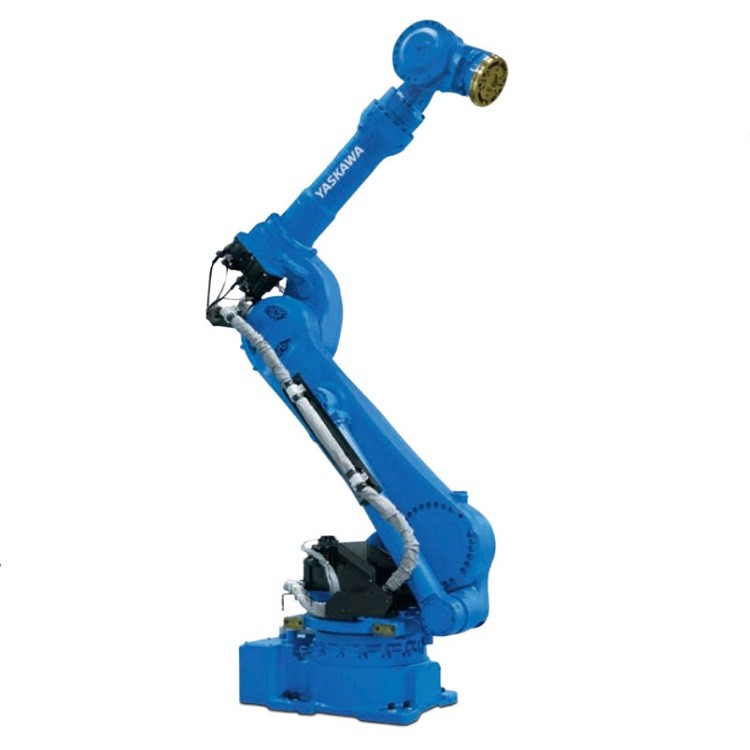

The 6-axis MOTOMAN MH225 is a versatile, high speed robot offering superior performance for a variety of applications, like material handling, machine and press tending. Despite of providing a high payload of 225 kg and the wide motion range of 2702 mm, the MOTOMAN GP225 was designed with a width of 625 mm, therefore valuable floor space can be saved. With the higher axis operation speed and speed reducer rigidity, a special vibration control system was developed. By reducing cycle times, this system realises high increases in productivity.



KEY BENEFITS

• Fast, flexible and powerful

• High payload: 225 kg

• Wide motion range: 2702 mm

• Maximum performance using minimal floor space



Protection class version YR-1-06VX225-A00 Standard: Main axes (S, L, U) IP54, wrist IP67 Protection class version YR-1-06VX225-C00: Main axes (S, L, U) IP65, wrist IP67
