Name: YF003N 4 Axis Payload 3kg High Speed Pick And Place Robotic Arm
Brand: Kawasaki
SKU: YF003N
Rating: 4.8 (191 reviews)

Home > products > Chinese Robot Arm >

YF003N 4 Axis Payload 3kg High Speed Pick And Place Robotic Arm

4 Axis Pick And Place Robotic Arm

Tending Pick And Place Robot Arm

5.0kVA Pick And Place Robotic Arm

Place of Origin:

China

Brand Name:

Kawasaki

Model Number:

YF003N

Request A Quote

Product Details

Type:

Parallel Link Type

Degrees Of Freedom:

4 Axes

Payload:

3kg

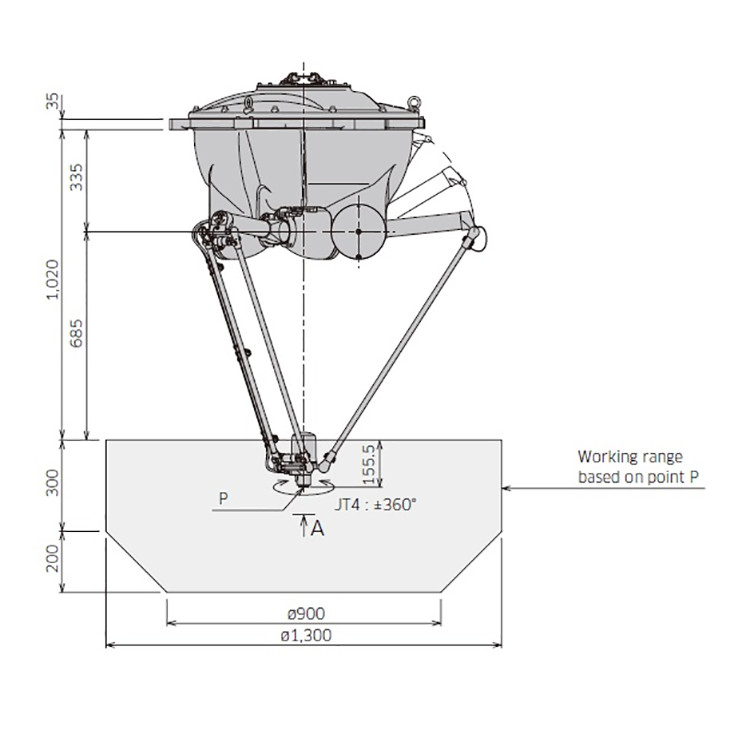

Motion Range:

ø1,300 × H500 Mm

Positional Repeatability:

±0.1 (mm) *1

Applications:

Assembly/Material Handling/Machine Tending

Mass:

145kg

Mounting:

Ceiling

Proection:

Standard:IP65 Equivalent /Option:IP67 Equivalent

Power Requirements:

5.0kVA

Robot Palletizer ER180-3100-PL Arms Robotic 4 Axis With CNGBS Robot Gripper As Palletizing Robot

Get Best Price

Video

Handling Robot China QJRB30-1 Robotic Arm 6 Axis With CNGBS Robot Changer As Industrial Robot

Get Best Price

Video

Handling Robot ER50-2100 With CNGBS Welding Positioner For Automation As Universal Robot

Get Best Price

Video

Robot Palletizer ER60-2000-PL With Industrial Robotic Arm And CNGBS Purifier Palletizing Robot

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

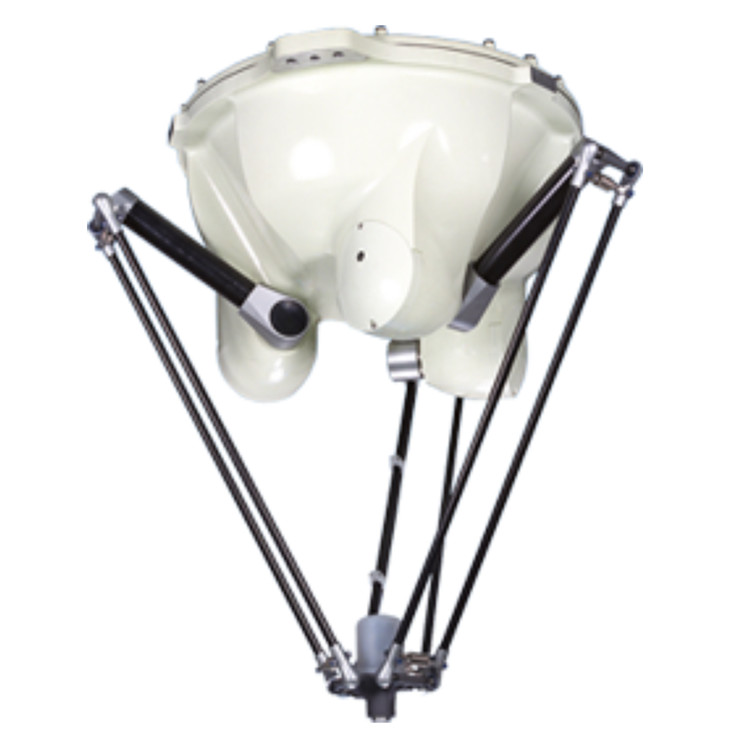

YF003N 4 Axis Payload 3kg High Speed Pick & Place Robot Arm Small

The YF003N pick & place robot has a maximum payload capacity of 3 kg and it offers the wider motion range of the Y series models. The high-speed Y series pick & place robots can be used for material handling and assembly applications in a variety of industries, including food, pharmaceutical, cosmetics, electronics, machinery, and solar panels.

Product Description

Specification

item	value
Place of Origin	China
	Shanghai
Brand Name	Kawasaki
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC
Warranty	1 Year
	Video technical support, Online support
After Warranty Service	Online support
Local Service Location	Egypt, Italy, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Malaysia, Australia, Argentina, South Korea, Chile, Sri Lanka, Ukraine
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location	Egypt, Germany, Brazil, Peru, Indonesia, India, Mexico, Spain, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh
Type	Parallel Link Type
Degrees of Freedom	4 axes
Payload	3kg
Max. Reach	1,300 * H500 mm
Positional Repeatability	± 0.1 (mm) *1
Applications	Spot Welding/Assembly/Material Handling/Machine Tending
Mass	145kg
Mounting	Ceiling
Protection	Standard:IP65 equivalent /Option:IP67 equivalent
Power Requirements	5.0kVA

Packing & Delivery

Small Size Robot Arm For Industrial YF003N 4 Axis Payload 3kg High Speed Pick & Place Robot Arm Small Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)
