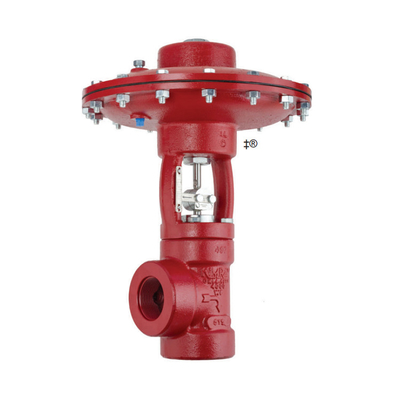

KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator

KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator

Control Valve High Pressure Regulators

Alloy Steel High Pressure Regulators

IP66 High Pressure Regulators

Brand Name:

KIMRAY

Model Number:

CV

Contact Us

Request A Quote
Product Details
Product Name:
KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator
Brand:
KIMRAY
Model:
CV
Matrial:
Alloy/Steel
Valve Style:
High Pressure Regulators
Body:
" LINE SIZE 1/2
Intrinsic Safety:
ATEX, STCC, GOST
Supply Air:
IP66
Weight:
Approx. 0.5 Kg
Application:
Gas, Oil Industry
Product Description
Product Description

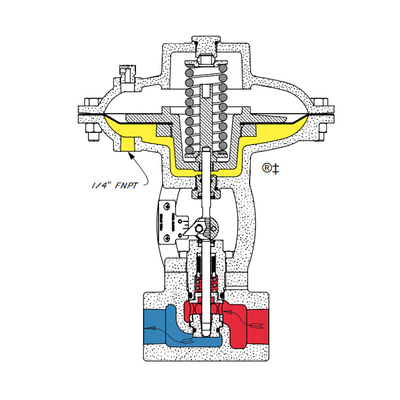

KIMRAY CV series high pressure regulators for control valve gas regulator

APPLICATIONS: For the discharge of liquid from vessels where freezing may occur due to high pressure drop. The inner valve is
located to utilize vessel heat to help prevent freezing. Recommended for use as a fail close valve only in nonfreeze
applications. Excessive diaphragm pressure would be required for fail open service. The -65 allows a wider spring adjustment range
for the discharge of liquid from vessels where freezing may occur due to high pressure drop. FEATURES: Compact design Carboloy
valve plug O-Ring-sealed seat Valve travel indicator Teflon-packed stuffing box Can be used as a standard 1" angle valve by
reversing the direction of flow. Easy removal of seat 1" NPT inlet and outlet 2" NPT vessel mounting
KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 0KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 1KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 2

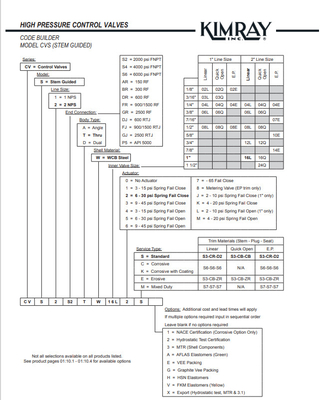

Specification

Series KIMRAY CV series high pressure regulators for control valve gas regulator
Model KIMRAY CV
Input signal 4~20mA analog signal or digit signal
Product high pressure regulators
Body LINE SIZE 1/2
Brand Name KIMRAY

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.


KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 3

KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 4



KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 5

KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 6

KIMRAY CV Series High Pressure Regulators For Control Valve Gas Regulator 7
