smart robot KR 70 R2100 PA pallets robotics gripper KUKA industrial robot
Product description
| Product name | smart robot KR 70 R2100 PA pallets robotics gripper KUKA industrial robot |
| Model | KR 70 |
| Max.reach | 2,100 mm |
| Rated payload | 70 kg |
| Rated suppl. load, arm/link arm/rot. column | 35 kg/–/– |
| Rated total load | 95 kg |
| Pose repeatability | ±0.06mm |
| Numberof axes | 6 |
| Mounting position | Floor |
| Variant | – |
| Robot footprint | 603 mm x 480 mm |
| Weight (excluding controller), approx. | 536 kg |
| Axis data / | Speed with rated |
| Range of motion | payload 30kg |
| Axis 1 (A1) | +/-185° |
| Axis 2 (A2) | +35°/-135° |
| Axis 3 (A3) | +158°/-120° |
| Axis 4 (A4) | +/-350° |
| Axis 5 (A5) | +/-119° |
| Axis 6 (A6) | +/-350° |
| Operating conditions | |
| Ambient temperature | +10°C to +55°C |
| Protection rating | |
| Protectionrating, robot | IP 65/IP 67 |
| Protection rating, in-line wrist | IP 64 |
| Controller | KR C4 |
| Teach pendant | KUKA smartPAD |

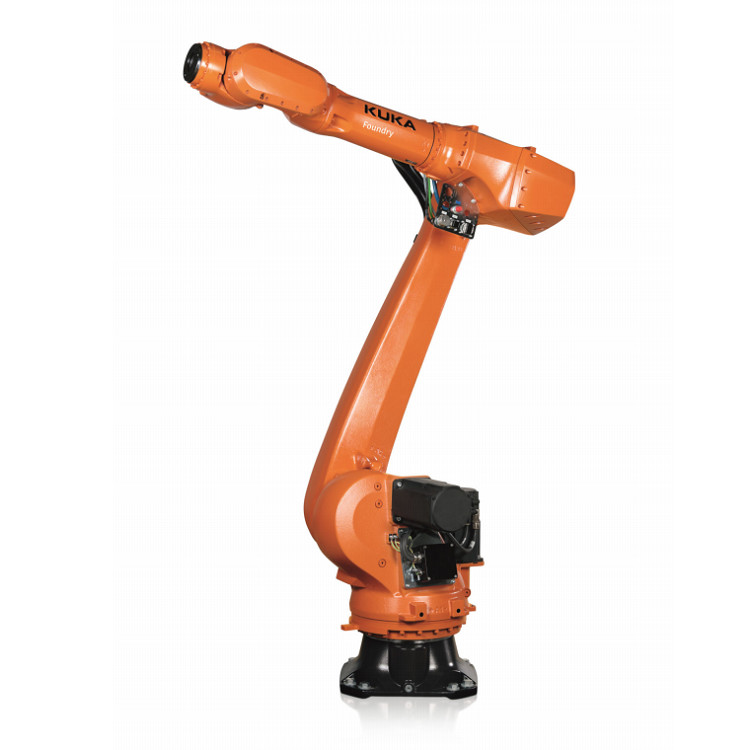

Product image
