Name: EMERSON TESCOM HV - 3500 Series Pressure Reducing Regulators
Brand: EMERSON TESCOM
SKU: HV-3500
Rating: 4.8 (167 reviews)

Home > products > Control Valve Accessories >

EMERSON TESCOM HV - 3500 Series Pressure Reducing Regulators

0.55MPa Valve Pressure Reducing Regulators

Stainless Steel Pressure Reducing Regulators 60HZ

Pressure Regulator HV-3500

Brand Name:

EMERSON TESCOM

Model Number:

HV-3500

Request A Quote

Product Details

Product Name:

EMERSON TESCOM HV-3500 Series Pressure Reducing Regulators

Model:

HV-3500

Temp. Range:

-30°C To +85°C

Brand:

EMERSON TESCOM

Shaft And Hardware:

Stainless Steel

Air Supply:

0.2MPa~0.55MPa

Voltage:

AC / DC 220V, AC 380V,etc

Frequency:

50HZ / 60HZ

Limit Of Intrinsic Error:

±1.0%

Weight Approximate:

10.5 Lbs / 4.8 Kg

Versatile Control Valve Accessories DVC6200 DVC2000 Positioner For Different Media Types

Get Best Price

FISHER 3582I DVC6200 And Masoneilan 78-40 Regulator With High Temperature Resistant 2/2-Way Diaphragm In Stock

Get Best Price

Mesto NELES Positioner ND7000 And 2/2 Running ASCO Brass Solenoid Valve With 24DVC High Temperature Resistant

Get Best Price

NELES Positioner ND7000 ND9000 And 2/2 Running ASCO Brass Solenoid Valve With 24DVC High Temperature Resistant

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

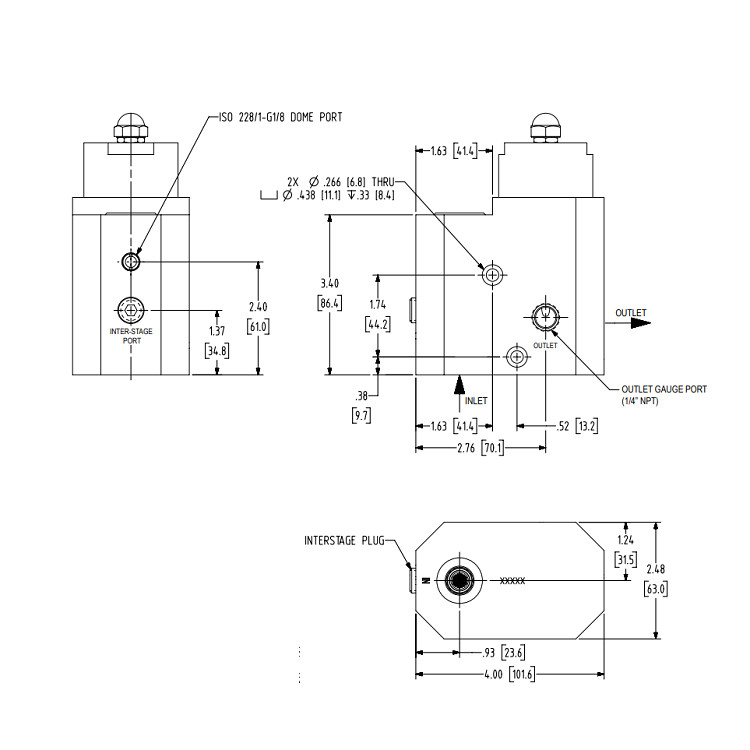

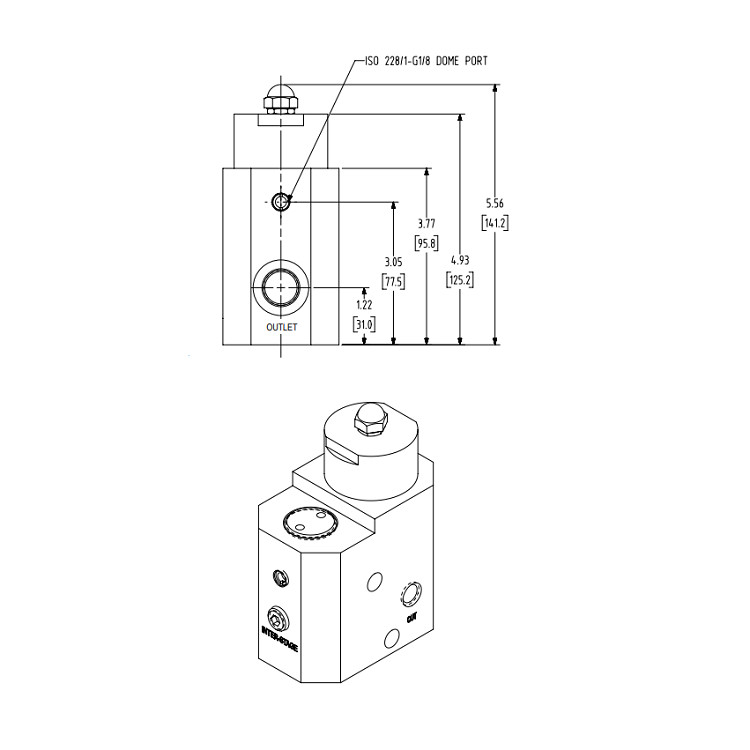

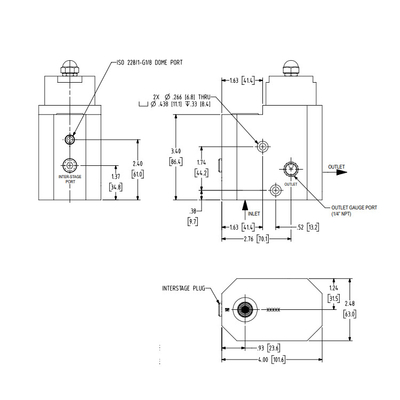

HV-3500 Series Pressure Reducing Regulators


Specifications

For other materials or modifications, please consult Emerson.

OPERATING PARAMETERS

Pressure rating per criteria of ANSI/ASME B31.3

Nominal Inlet Service Pressure

5076 psi / 35.0 MPa / 350 Bar

Maximum Inlet Pressure

6345 psi / 43.8 MPa / 438 Bar

Minimum Inlet Pressure

290 psi / 2.0 MPa / 20.0 Bar

Operating at pressures below this minimum pressure could limit the maximum

flow rate

Design Proof Pressure

150% of nominal inlet service pressure

Leakage

Bubble-tight

Operating Temperature

-40 °F TO +185 °F / -40 °C TO +85 °C

Flow Capacity

Cv = 0.17

Decaying Inlet Characteristic

0.05 psi / 3.4 mbar per 100 psi / 6.9 bar change in inlet pressure

Filter

10 µm

The 10 µm filter is for initial system assembly protection. The product is

designed to be used with particulate free hydrogen. Your system should

be designed with proper filtration before the regulator to protect against

contamination.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	1.7MPa(17bar)
outlet Pressure Rating	0.42MPa
Weight	1~3KG
Application	Gas& Oil industry

Special features

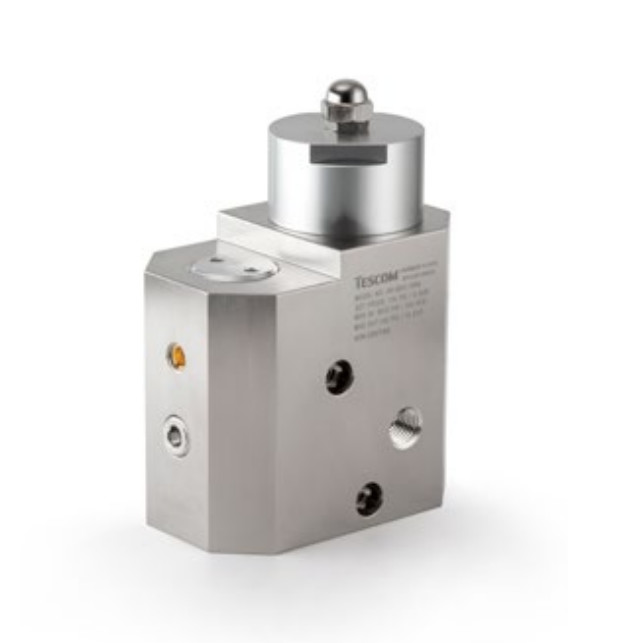

TESCOM HV-3500 Series Two Stage Pressure Reducing

Regulator is a reliable, low maintenance pressure

control solution. It is specially designed for use onboard

industrial and commercial hydrogen fuel cell vehicles

and allows manufacturers to maximize fuel efficiency

and keep their fleet on the road for a longer distance.

The HV-3500 also provides consistent pressure and

continuous flow in a full range of operating conditions.

It is suitable for nominal inlet pressures up to 35.0 MPa

and flow rates above 3.2 g H2/s.

Applications

*

Onboard industrial/commercial light and heavy-duty

hydrogen fuel cell vehicles like buses and trucks

Features and Benefits

*

Dual stage and active seal design that provides

consistent pressure and continuous hydrogen fuel

supply to fuel cells, decreasing downstream over

pressurization risk

*

Superior shutoff performance

*

Corrosion resistant, nickel-plated aluminum body

*

One design suitable for the full range of vehicle

operating conditions and various system pressure

settings

*

Compact and lightweight configuration

*

Specially designed shape and standard mounting

holes for ease of installation

*

Standard ports for sensor and pressure relief valve

integrations

*

Local manufacturing and support
