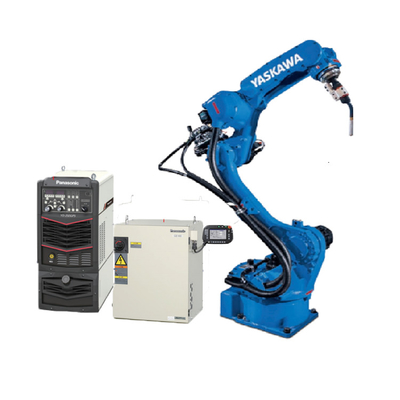

Name: YASKAWA AR1440 Mig Welding Robot 12Kg Payload 1440mm Reach Panasonic 350GL5 Welder Torch
Brand: YASKAWA
SKU: AR1440
Rating: 4.6 (114 reviews)

Home > products > Yaskawa Robot Arm >

YASKAWA AR1440 Mig Welding Robot 12Kg Payload 1440mm Reach Panasonic 350GL5 Welder Torch

Yaskawa Mig Welding Robot

Mig Welding Robot 12 Kg Payload

350GL5 Welder Yaskawa Robot Arm

Brand Name:

YASKAWA

Model Number:

AR1440

Request A Quote

Product Details

Product Name:

YASKAWA AR1440 Mig Welding Robot 12 Kg Payload 1440mm Reach And Panasonic 350GL5 Welder And Welding Torch

Model:

AR1440

Pose Repeatability:

± 0.06mm

Number Of Axes:

Mounting Position:

Floor/ Ceiling/Wall

Footprint:

179 Mm X 179 Mm

Weight:

150 Kg

Protection Rating:

IP67

Usage:

For Welding

Customs Tariff Number:

84795000

6 Axis Arm Robot Yaskawa AR1440 With CNGBS Welding Positioner For Mig Welding Robot Automation

Get Best Price

Video

Universal Robotic Arm 6 Axis GP25-12 With CNGBS Purifier For Palletizing As Industrial Robot

Get Best Price

Video

Small 6 Axis Robotic Arm VS-050/060 With CNGBS Customized Robot Gripper As Universal Robot

Get Best Price

Industrial Robot GP35L Of YASKAWA With 35KG Payload As Robotic Arm For Material Handling

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

YASKAWA AR1440 welding robot with 12 kg payload and 1440mm and wire feed system and welder source industrial robot arm 6 axis

Product Description

The six-axis MOTOMAN AR1440 robot provides fast and accurate performance to achieve optimal results in extremely

difficult conditions and especially for the high demands of arc welding applications. With a payload of up to 12 kg, it’s wire feed system, the maximum working range of 1440 mm and integrated media hose package, this robot enables simple machining of bulky and hard-to-access workpieces with high quality results. Further more, the slim design allows high-density robot placement in

confined spaces. The fast motion sequences of the MOTOMAN AR1440 robot reduce welding cycle times and the hollow wrist of 50 mm allow integrated torch cabling in the robot arm in order to avoid collisions with the workpiece or other robots. The integration of the power cable and the air connections in the base enable an enlarged turning range of more than 340°.

Specification
Product name	YASKAWA AR1440 welding robot with 12 kg payload and 1440mm and wire feed system and welder source industrial robot arm 6 axis
Model	AR1440
Maximum reach	1440mm
Maximum payload	12 kg
Pose repeatability (ISO 9283)	± 0.06 mm
Number of axes	6
Mounting position	Floor/ Ceiling/Wall
Footprint	179 mm x 179 mm
Weight	approx. 150 kg
Protection rating	IP67
Controller	YRC1000
Motion range
A1	±170°
A2	(+155/–90)
A3	(+155/–85)
A4	±200°
A5	±150°
A6	±450°

Product image

AR1440 2.png AR1440.png 1.png
