Home /Products/Other/Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform

Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform

1
MOQ
negatiation
Price
Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Chinese Brand Collaborative Robot CNGBS-G05 6 Axis Cobot Arm
Model: G05
Brand: CNGBS
Number Of Axes: 6
Mounting Position: Floor/ Ceiling/Wall
Payload: 5KG
Weight: 2.5kg
Protection Rating: IP65
Materials: Aluminium, PP Plastics
Reach: 800mm
Application: Industrial Automation
Control System: PC/PLC
Height: 300mm
Interface: USB/RS232
Length: 500mm
Material: Aluminum Alloy
Max Load: 3kg
Name: Chinese Robot Arm
Power: 50W
Repeatability: 0.02mm
Speed: 0.2s/60°
Voltage: 24V
Width: 400mm
Highlight:

Fanuc CR-4iA Chinese Robot Arm

,

Material Handling Platform Chinese Robot Arm

,

2 Finger Gripper 6 Axis Robot
Basic Infomation
Brand Name: Fanuc
Model Number: CR-4iA
Payment & Shipping Terms
Packaging Details: GBSCN mig welding robot GBS6-C1400 With Ehave CM350AR 6 axis robot china 6 axis robot china fumigation wooden box
Delivery Time: 4-12 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Description

robot arm for sale Fanuc CR-4iA 6 axis robot arm with onrobot 2 finger gripper and service platform for material handing

Product image

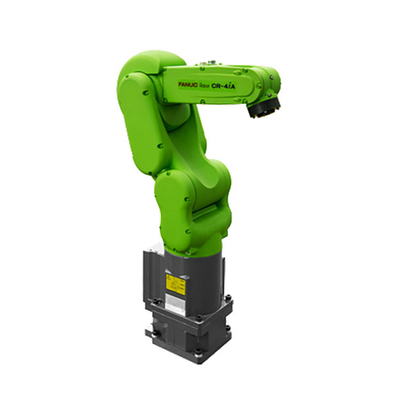

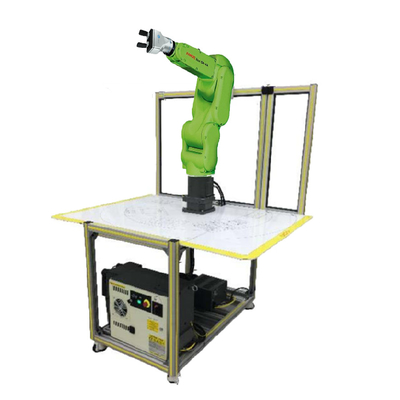

Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform 0

Product Description



DESCRIPTION
Product name
Model CR-4iA
Controlled axes 6
Reach 550mm
Installation Floor/Upside-down ,Angle mount
Motion range J1 340° 5.93rad
J2 150° 2.61rad
J3 354° 6.17rad
J4 380° 6.63rad
J5 200° 3.49rad
J6 720° 12.57rad
Max.load capacity at wrist 4kg
Maximun speed 1000mm/s
Allowable load moment at wrist J4 8.86N.m
J5 8.86N.m
J6 4.9N.m
Allowable load inertia at wrist J4 0.20kg.m2
J5 0.20kg.m2
J6 0.067kg.m2
Repeatability ±0.01mm
Mass 48kg

Company Information

Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform 1Fanuc CR-4iA 6 Axis Chinese Robot Arm With Onrobot 2 Finger Gripper And Material Handling Platform 2
