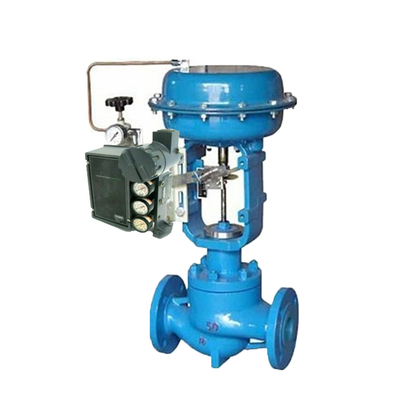

Name: Emerson Fisher Valve Positioner 3620J 3620JP With 67cfr 67CRSR Regulator For Chinese Brand Control Valve
Brand: Fisher Gulde
SKU: Fisher Gulde 5100
Rating: 4.6 (122 reviews)

Home > products > Pressure Reducing Valve >

Emerson Fisher Valve Positioner 3620J 3620JP With 67cfr 67CRSR Regulator For Chinese Brand Control Valve

Control Valve Positioner 3620JP

Stainless Steel Pneumatic Control Valve Positioner

Place of Origin:

China

Brand Name:

Fisher Gulde

Model Number:

Fisher Gulde 5100

Request A Quote

Product Details

Application:

General

Material:

Stainless Steel

Temperature Of Media:

High Temperature

Pressure:

Medium Pressure

Power:

Pneumatic

Media:

Acid

Port Size:

Standard

Structure:

Regulating

Standard Or Nonstandard:

Standard

Port:

Main Ports In China

Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe

Get Best Price

Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor

Get Best Price

Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package

Get Best Price

Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

emerson fisher valve positioner 3620J 3620JP with 67cfr 67CFSR Filter regulator for chinese brand pneumatic control valves

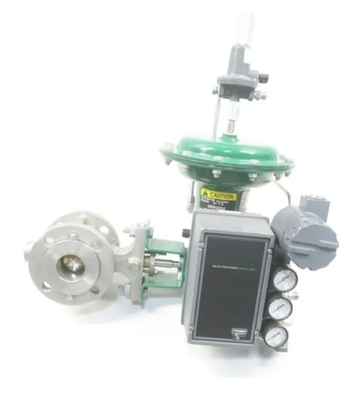

3610J or 3610JP pneumatic positioners and 3620J or 3620JP electro‐pneumatic positioners are used with diaphragm
rotary actuators and piston rotary actuators as shown in figure 1. 3611JP and 3621JP positioners are used with Fisher
585, 585R, 585C, or 585CR sliding stem actuators

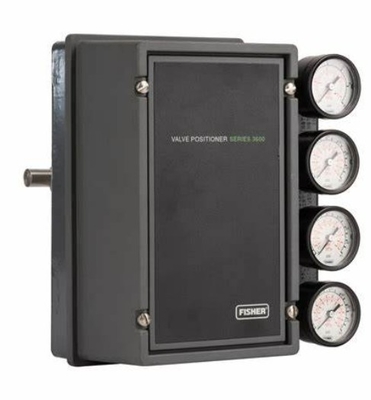

The positioner mounts integrally to the actuator housing and provides a valve ball, disk, or plug position for a specific
input signal. The positioner accepts either a pneumatic or milliampere input signal. Refer to the Type Number
Description for a detailed explanation of type numbers.

3610J, 3610JP, and 3611JP: Standard: 0.2 to 1.0
bar (3 to 15 psig), 0.4 to 2.0 bar (6 to 30 psig), or
split range, see table 8
Adjustable: Zero is adjustable from 0.07 to 1.5 bar
(1 to 22 psig) for standard valve rotations or valve
travels. Span is adjustable from 0.2 to 2.0 bar (3.2 to
28.8 psi) for standard valve rotations or valve travels.
Adjustment locations are shown in figure 13.
3620J, 3620JP, and 3621JP: 4 to 20 mA DC constant
current with 30 VDC maximum compliance voltage.
Minimum terminal voltage is 2.4 VDC at 20 mA.

Direct‐Acting 3610J and 3620J: ±1.5% of output span
Reverse‐Acting 3610J and 3620J: ±0.75% of output span
Direct‐Acting 3610JP and 3620JP: ±1.25% of output
span
Reverse‐Acting 3610JP and 3620JP: ±0.5% of output
span
Hysteresis
3610J: 1.0% of output span
3620J: 0.75% of output span
3610JP: 0.5% of output span
3620JP: 0.6% of output span
Deadband: 0.1% of input span

Specifications

Reference variable	4 to 20 mA
Trave	5 to 50 mm
Opening angles	24 to 100°
Operating Temperature	Standard Temperature
Explosion protection	Intrinsic safety: ATEX, STCC,
Application	Gas& Oil industry

Special features

Reasonably foreseeable misuse The device is not suitable for use outside the limits defined during sizing and by the technical
data. Furthermore, the following activities do not comply with the intended use:

− Use of non-original spare parts

− Performing
service and repair work not described in these instructions Qualifications of operating personnel The device must be mounted,
started up, serviced and repaired by fully trained and qualified personnel only; the accepted industry codes and practices are to
be observed. According to these mounting and operating instructions, trained personnel refers to individuals who are able to judge
the work they are assigned to and recognize possible hazards due to their specialized training, their knowledge and experience as
well as their knowledge of the applicable standards.

Detailed Images

Packing & Delivery

Our Service

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.

Our Company

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
