Emerson Fisher LS200 Industrial Natural Gas Self Operated Pressure Regulator

1
MOQ
US $450.00 - 600.00/ Set
Price
Emerson Fisher LS200 Industrial Natural Gas Self Operated Pressure Regulator
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Fisher LS200 Series Regulators
Maximum Emergency Outlet Pressure: Medium Pressure: 50 Psi / 3.44 Bar;High Pressure: 150 Psi / 10.34 Bar
Temperature Ratings: -20 To 150 F / -29 To 66 C (Non PED)
Spring Ranges LS220, LS224 (350mm): Light Green 4.35 To 5.1 Psi;Pink 4.35 To 10.6 Psi
Spring Ranges LS250, LS254 (255mm): Pink 20 To 30.3 Psi;Dark Blue 20 To 44.8 Psi;Orange 25 To 60 Psi
Pressure Registration: External
Maximum Emergency Inlet Pressure: 300 Psi / 20.7 Bar
Material: Ductile Iron, Gray Iron, Steel
Suitable Gas: Natural Gas
Highlight:

Self Operated Pressure Regulator

,

Natural Gas Self Operated Pressure Regulator

,

Fisher LS200 Self Operated Pressure Regulator
Basic Infomation
Brand Name: Fisher
Model Number: LS200
Payment & Shipping Terms
Delivery Time: 90 work days
Payment Terms: T/T
Product Description

Fisher LS200 Series Regulators: The Ideal Solution for High - Capacity Applications​

Product Overview

The Fisher LS200 Series Regulators stand out as a top - notch choice for various industrial and commercial needs. These regulators are specifically engineered for district stations or high - capacity industrial applications such as driers, furnaces, boilers, or burners.​

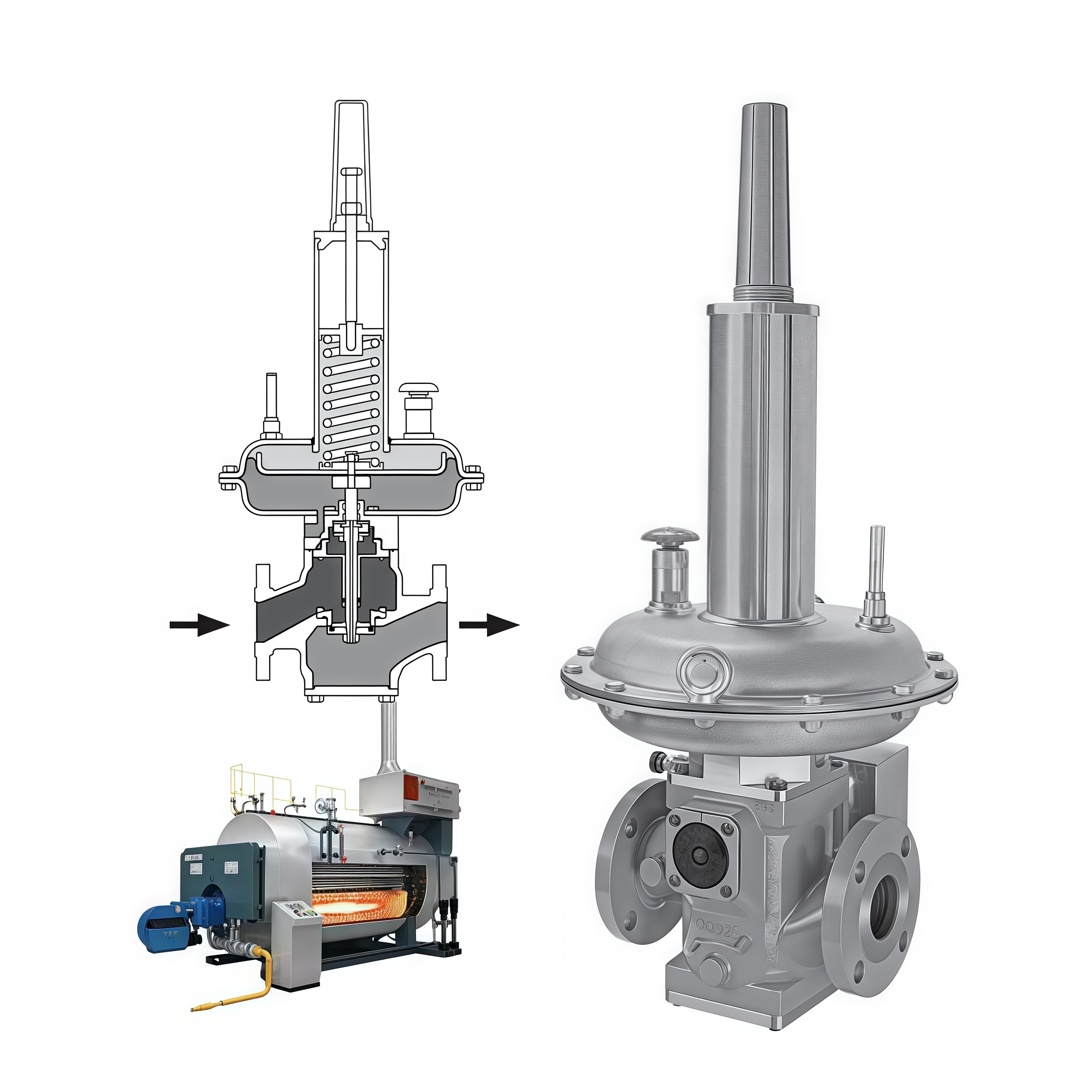

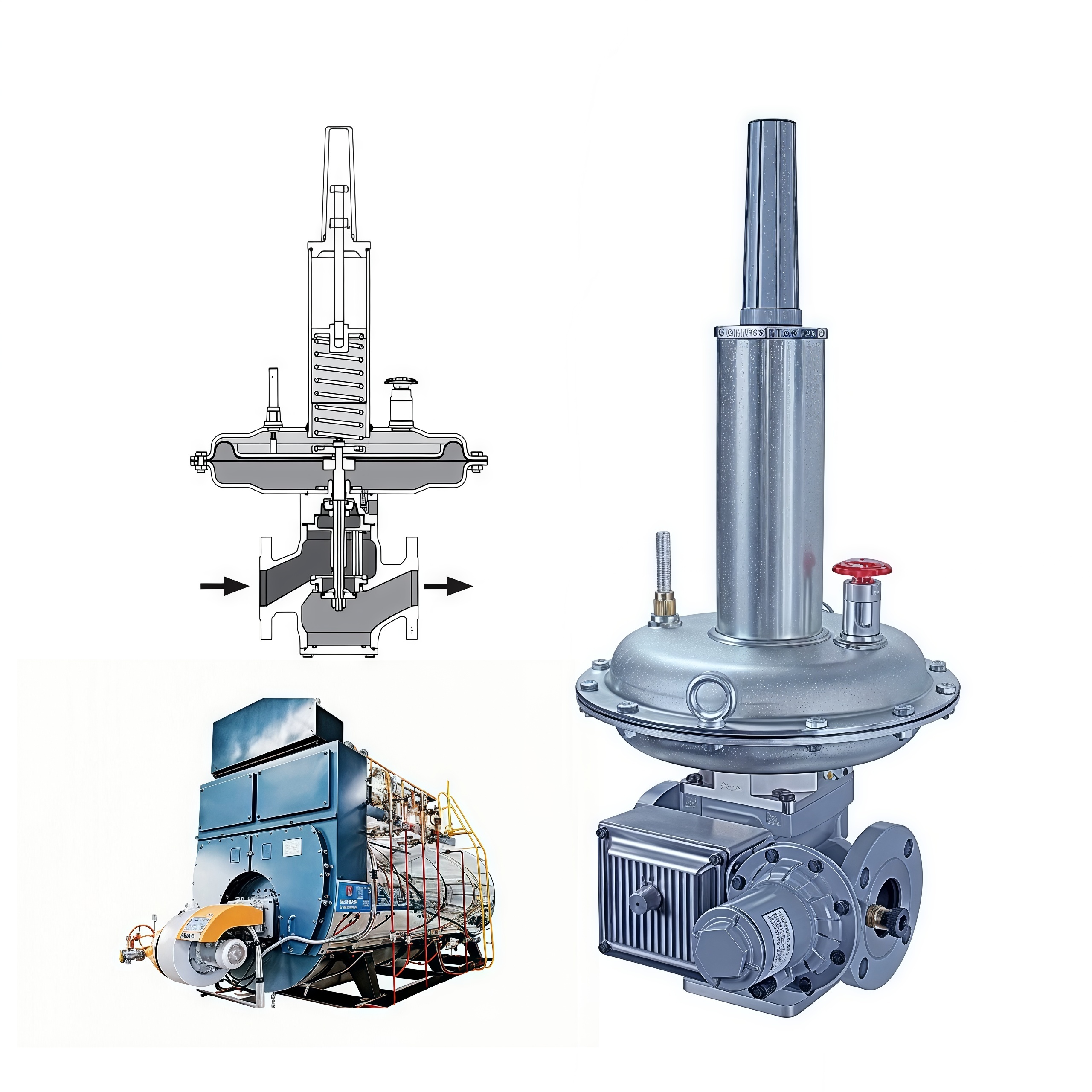

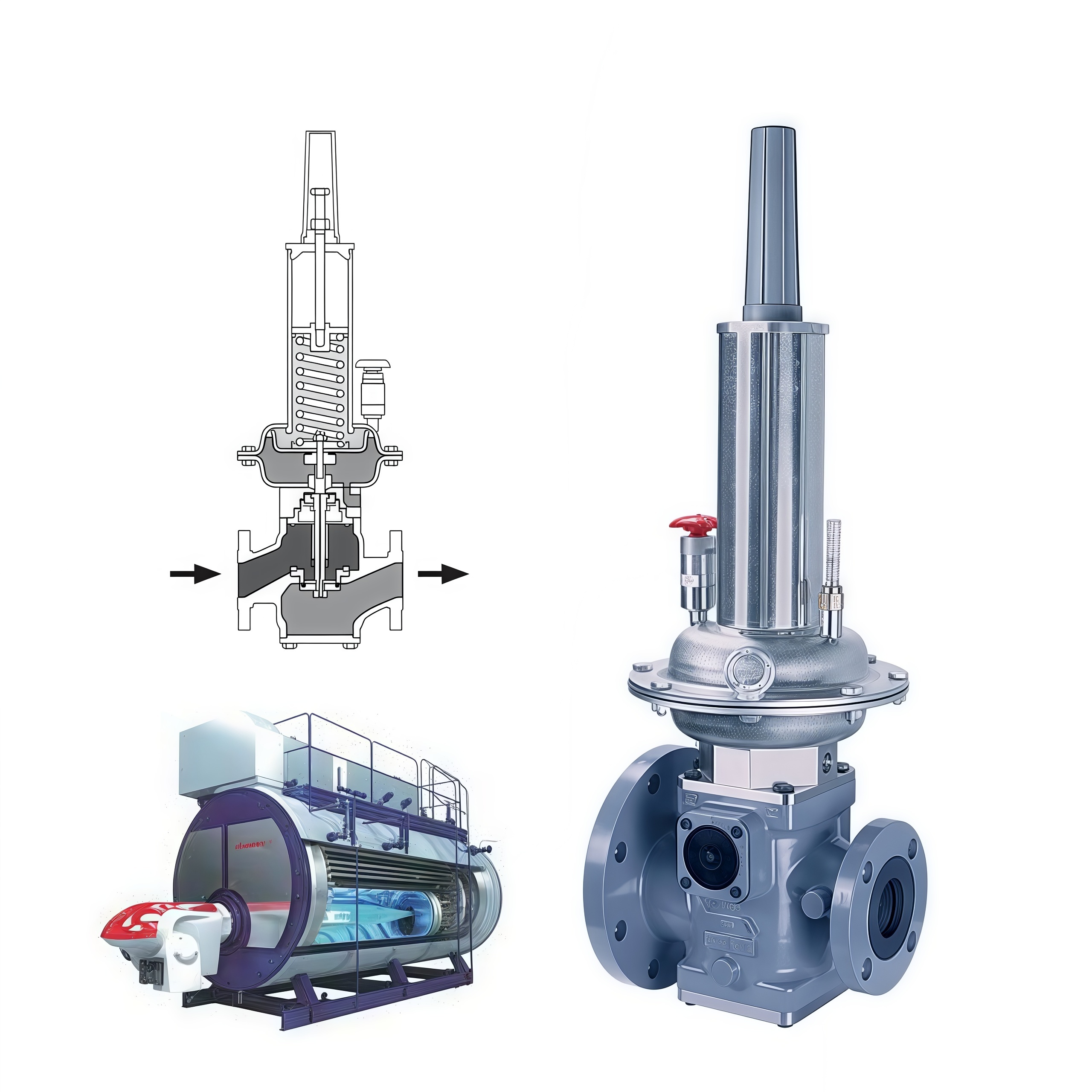

Emerson Fisher LS200 Industrial Natural Gas Self Operated Pressure Regulator 0

 Features​

  • High - Capacity Performance

    The LS200 features a large - capacity, balanced port design. This allows for maximizing the inlet pressure rating, which in turn enables high - volume gas output. It is well - equipped to handle large - scale gas distribution in low - pressure (150 - pound class) applications.​

  • Integral Safety Features

    With an optional integral slam - shut function, the LS200 provides an extra layer of safety. In case of overpressure or under - pressure situations, the integral slam - shut module promptly shuts off the gas flow to the downstream system. What's more, it is designed to be containment - based and emission - free during overpressure events.​

  • Ease of Maintenance

    Maintenance simplicity was a key focus during the product development. It takes less than 15 minutes to change the disc, and the slam - shut can be mounted on either side of the body, facilitating tight installations and ergonomic operations.​

Applications​

  • Industrial Settings

    In manufacturing plants, the LS200 is used to regulate gas pressure for processes like drying materials in industrial driers, maintaining stable combustion in furnaces for metalworking or glass - making, and ensuring efficient operation of boilers that power various production lines.​

  • Commercial Establishments

    In large - scale commercial kitchens, it helps in regulating the gas supply to high - capacity burners, guaranteeing consistent heat for cooking operations. It is also suitable for heating systems in commercial buildings where boilers are used for space heating.
