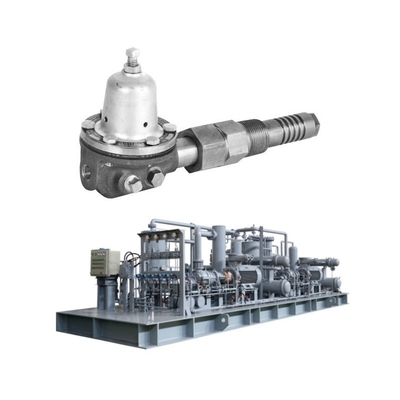

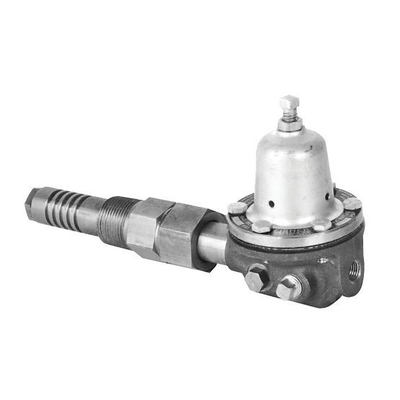

Direct Operated Regulators Fisher 1305 Series Pressure Reducing Regulators Natural Gas for Frozen Issues

1
MOQ
US $550.00 - 680.00/ Set
Price
Direct Operated Regulators Fisher 1305 Series Pressure Reducing Regulators Natural Gas for Frozen Issues
Features Gallery Product Description Request A Quote
Features
Specifications
Body Size And End Connection Style: Inlet: 1 NPT ;Outlet: 1/4 NPT
Maximum Outlet (Casing) Pressure: Type 1305C: 250 Psig / 17.2 Bar ;Type 1305D: 550 Psig / 37,. Bar
Temperature Capabilities: 20 To 200°F / -29 To 93°C
Approximate Weight: 6 Pounds / 3 Kg
Pressure Registration: Internal
Maximum Inlet Pressure: 4000 Psig / 276 Bar
Highlight:

Fisher 1305 natural gas regulator

,

pressure reducing valve for frozen issues

,

Direct operated natural gas regulator
Basic Infomation
Brand Name: Fisher
Model Number: 1305
Payment & Shipping Terms
Packaging Details: Cardboard box
Delivery Time: 90 working days
Payment Terms: T/T
Supply Ability: 500 sets per year
Product Description
Direct Operated Regulators Fisher 1305 Series Pressure Reducing Regulators Natural Gas for Frozen Issues
Product Specifications
Attribute Value
Body Size and End Connection Style Inlet: 1" NPT; Outlet: 1/4" NPT
Maximum Outlet (Casing) Pressure Type 1305C: 250 psig / 17.2 bar; Type 1305D: 550 psig / 37 bar
Temperature Capabilities 20 to 200°F / -29 to 93°C
Approximate Weight 6 Pounds / 3 kg
Pressure Registration Internal
Maximum Inlet Pressure 4000 psig / 276 bar
Product Overview

The Fisher 1305 Series Pressure Reducing Regulators are direct-operated regulators specifically designed to address frozen issues in natural gas applications. They are widely used in high-pressure pipelines such as wellheads and isolators. These regulators are suitable for a variety of gases including natural gas, air, propane, and other non-corrosive gases.

Key Features

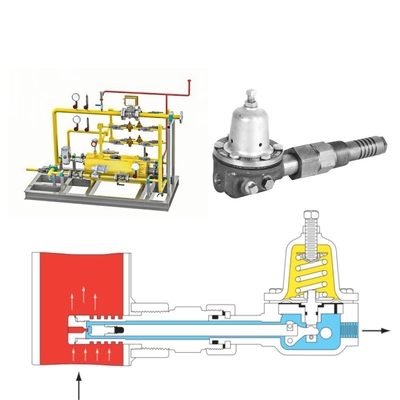

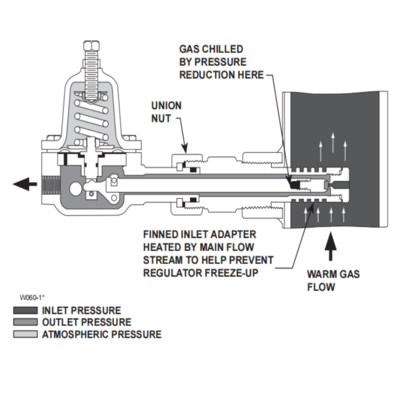

  • Anti-freezing Design: Effectively prevents the formation of hydrates and regulator freezing, ensuring stable operation in cold environments.
  • Durable Construction: Built with high-quality materials to withstand high-pressure conditions and harsh operating environments.
  • Easy Maintenance: Simple structure and design make maintenance and servicing straightforward, reducing downtime.
  • High-pressure Capability: Capable of handling high-pressure gas applications, providing reliable pressure control.
  • NACE Compliance: Available in structures that meet NACE standards for use in corrosive environments.
Technical Parameters
Parameter Specification
Valve Body Size Inlet: 1" NPT; Outlet: 1/4" NPT
Maximum Inlet Pressure 4000 psig (276 bar)
Maximum Outlet Pressure 1305C: 250 psig (17.2 bar); 1305D: 550 psig (37 bar)
Outlet Pressure Range 1305C: 1-75 psig (0.069-5.2 bar), 5-150 psig (0.34-10.3 bar), 10-225 psig (0.69-15.5 bar); 1305D: 200-500 psig (13.8-34.5 bar)
Pressure Sensing Method Internal Sensing
Temperature Range -29-93°C (-20-200°F)
Applications
  • Natural gas pipelines prone to freezing issues
  • High-pressure gas systems in wellheads and isolators
  • Industrial gas applications requiring precise pressure control
