Home /Products/Pressure Reducing Valve/High Pressure Fisher 1305 1305C 1305D Air Propane Pressure Reducing Regulators for Skid Mount

High Pressure Fisher 1305 1305C 1305D Air Propane Pressure Reducing Regulators for Skid Mount

1
MOQ
US $558.00 - 688.00/ Set
Price
High Pressure Fisher 1305 1305C 1305D Air Propane Pressure Reducing Regulators for Skid Mount
Features Gallery Product Description Request A Quote
Features
Specifications
Body Size And End Connection Style: Inlet: 1 NPT ;Outlet: 1/4 NPT
Maximum Outlet (Casing) Pressure: Type 1305C: 250 Psig / 17.2 Bar ;Type 1305D: 550 Psig / 37,. Bar
Temperature Capabilities: 20 To 200°F / -29 To 93°C
Approximate Weight: 6 Pounds / 3 Kg
Pressure Registration: Internal
Maximum Inlet Pressure: 4000 Psig / 276 Bar
Basic Infomation
Brand Name: Fisher
Model Number: 1305
Payment & Shipping Terms
Packaging Details: Cardboard box
Delivery Time: 90 working days
Payment Terms: T/T
Supply Ability: 500 sets per year
Product Description
High Pressure Fisher 1305 1305C 1305D Air Propane Pressure Reducing Regulators for Skid Mount
Product Attributes
Attribute Value
Body Size and End Connection Style Inlet: 1" NPT; Outlet: 1/4" NPT
Maximum Outlet (Casing) Pressure Type 1305C: 250 psig / 17.2 bar; Type 1305D: 550 psig / 37 bar
Temperature Capabilities 20 to 200°F / -29 to 93°C
Approximate Weight 6 Pounds / 3 kg
Pressure Registration Internal
Maximum Inlet Pressure 4000 psig / 276 bar
Commodity Overview

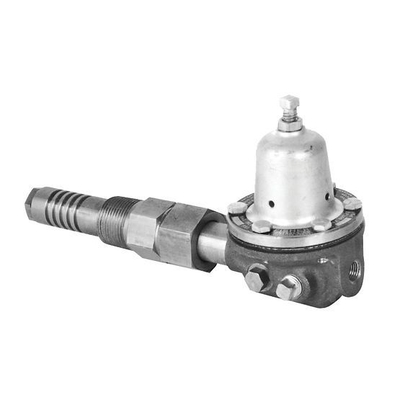

The Fisher 1305, 1305C, and 1305D Series Pressure Reducing Regulators are high-pressure regulators designed for air and propane applications, particularly in skid-mount systems. These direct-operated regulators deliver accurate and reliable pressure control for safe and efficient industrial operations.

Key Features
  • High-pressure Performance: Engineered for demanding industrial environments with high-pressure air and propane applications.
  • Precision Control: Provides accurate pressure regulation to meet specific application requirements.

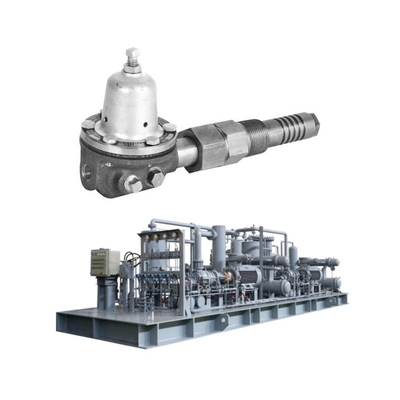

  • Skid-mount Compatibility: Compact design optimized for integration into skid-mount systems.
  • Robust Construction: Built to withstand harsh operating conditions for long-term reliability.
  • Easy Installation: Simplified design enables quick setup and maintenance with minimal downtime.
Technical Specifications
Parameter Specification
Valve Body Size Inlet: 1" NPT; Outlet: 1/4" NPT
Maximum Inlet Pressure 4000 psig (276 bar)
Maximum Outlet Pressure 1305C: 250 psig (17.2 bar); 1305D: 550 psig (37 bar)
Outlet Pressure Range 1305C: 1-75 psig (0.069-5.2 bar), 5-150 psig (0.34-10.3 bar), 10-225 psig (0.69-15.5 bar);
1305D: 200-500 psig (13.8-34.5 bar)
Pressure Sensing Method Internal Sensing
Temperature Range -29 to 93°C (-20 to 200°F)
Typical Applications
  • Skid-mount systems in industrial facilities
  • High-pressure air and propane applications in manufacturing plants
  • Gas supply systems requiring precise pressure control
