Fisher 67CFR Pressure Regulator Alloy Steel 450 psig 1/4 NPT

1
MOQ
1000
Price
Fisher 67CFR Pressure Regulator Alloy Steel 450 psig 1/4 NPT
Features Gallery Product Description Request A Quote
Features
Specifications
Model: 67C, 67CR, 67CF And 67CFR
Material: Alloy/stainless Steel
Brand: FISHER
Maximum Outlet Pressure: 450 Psig / 31.0 Bar
Maximum Inlet Pressure: 1000 Psig / 69.0 Bar
Approximate Weights: 3.2~16kg
Pressure Configurations: 2 To 30 Psig
Pressure Differential: (-20° To 150°F / -29° To 66°C)
Highlight:

Fisher 67CFR pressure regulator

,

Alloy steel pressure reducing valve

,

1/4 NPT pressure regulator 450 psig
Basic Infomation
Place of Origin: China
Brand Name: Fisher
Model Number: 67C, 67CR, 67CF and 67CFR
Document: xiangjing valve&instrument ...t .pdf
Payment & Shipping Terms
Packaging Details: valve 67C, 67CR, 67CF and 67CFR of Fisher pressure regulators with stainless steel materials for way valvepacked with one fumigation wooden box
Delivery Time: 60days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 999
Product Description
Product Overview

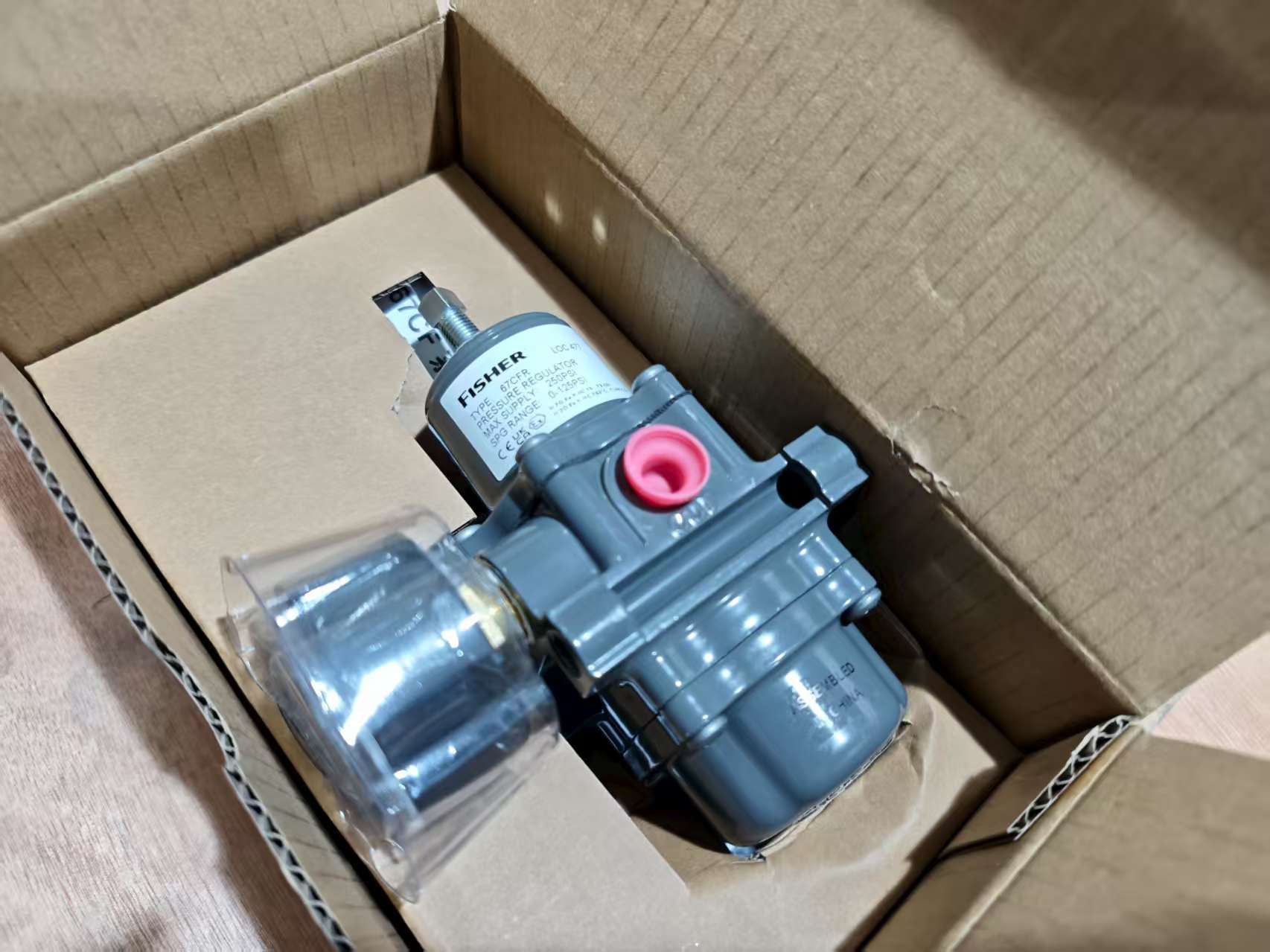

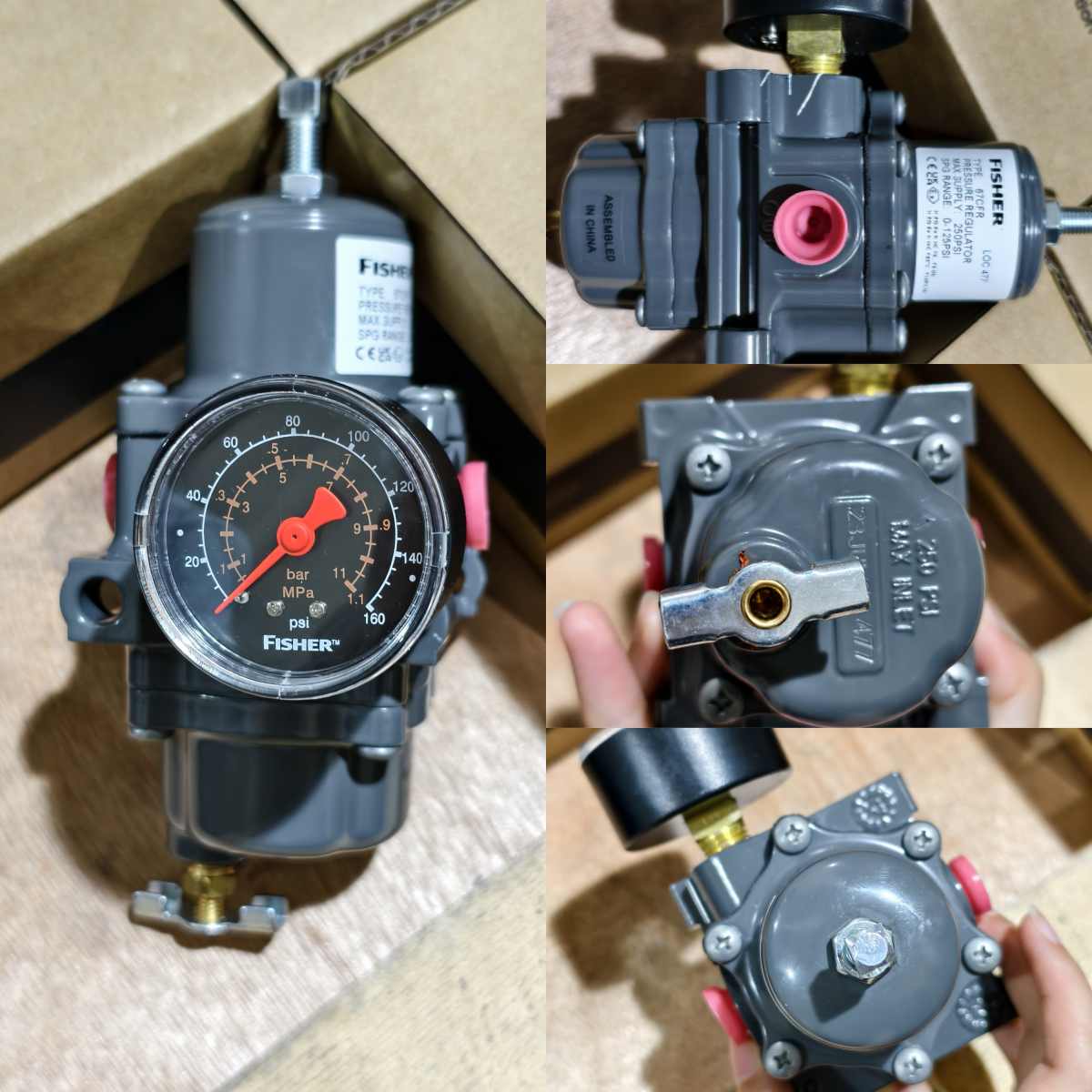

The Emerson Fisher 67CFR Pressure Regulator is a robust, compact, and versatile pneumatic air pressure regulator. Part of the renowned 67C Series by Fisher, this regulator includes an integrated air filter, offering excellent performance for valve actuators, control systems, and sensitive pneumatic instruments.

Ideal for maintaining consistent downstream pressure and protecting equipment from contaminated air, the 67CFR is widely used in industries such as oil & gas, power generation, chemical, and water treatment.

Key Features
  • Integrated 5-micron filter for air cleanliness
  • Adjustable outlet pressure ranges (low to high)
  • Compact and lightweight design for tight installations
  • Corrosion-resistant aluminum housing
  • Field-proven performance and long service life
  • Easy maintenance and filter replacement
  • Suitable for valve actuators, positioners, and I/P converters
Technical Specifications
Parameter Specification
Inlet Pressure Up to 250 psi (17.2 bar)
Outlet Pressure Ranges 0-35 psi / 0-60 psi / 0-125 psi (adjustable)
Filter Rating 5 micron
Body Material Aluminum (epoxy-coated)
Port Sizes 1/4" or 1/2" NPT (female)
Operating Temperature -40°C to +71°C (-40°F to +160°F)
Weight Approx. 0.9 kg (2 lbs)
Certifications PED, ATEX (varies by region), CE compliant
Typical Applications
  • Instrumentation air supply regulation
  • Pneumatic control valve actuator systems
  • Skid packages and control panels
  • Process control in chemical, refining, and power plants
  • Clean air regulation in compressor or dryer systems
Contact Us

Looking for Fisher 67CFR or other pneumatic regulators?

We provide global delivery, technical documentation, and configuration support for Emerson and other leading brands.

Email: edward.zhao@gongboshi.com
Website: https://www.shgongboshi.com/contactus.html
Phone: +86-15000725058

Also available:

  • Fisher FIELDVUE DVC series positioners
  • 67CFSR, 95H, 1301 series regulators
  • Smart and electro-pneumatic valve positioners from Flowserve, Samson, Masoneilan, and Neles
  • Full automation and control system packages
