Ametek Hydrocarbon Processing Gas Analyzer Thermox WDG-IV UOP Analyzers Low Concentration Oxygen Analyzer

1
MOQ
US $99999.00 - 105500.00/ Unit
Price
Ametek Hydrocarbon Processing Gas Analyzer Thermox WDG-IV UOP Analyzers Low Concentration Oxygen Analyzer
Features Gallery Product Description Request A Quote
Features
Specifications
Sensing Principle: Zirconia (in-situ Probe)
Typical Applications: Refinery Fired Heaters / Reformer / Cracking Furnaces
Output Range: From 0-1% To 0-100%
Contact Rating: 0.5A, 30V, 10VA Max. Noninductive Load, AC Or DC
Enclosure: IP65 (NEMA 4X)
Ambient Temperatures: 14°F To 122°F (-10°C To 50°C)
Output: 4-20 MA / HART
Measurement: Oxygen In Flue Gas
Highlight:

Hydrocarbon processing gas analyzer

,

Thermox WDG-IV oxygen analyzer

,

Low concentration UOP analyzers
Basic Infomation
Brand Name: Ametek
Model Number: WDG-IV UOP/WDG-V UOP
Document: Company profile Xiangjing (...ts.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 90 work days
Payment Terms: T/T
Supply Ability: 50 units per year
Product Description

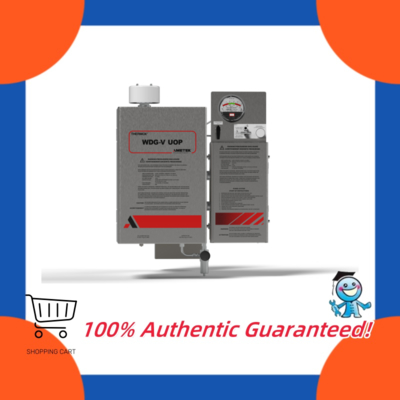

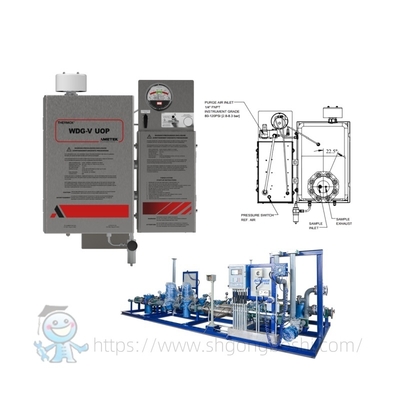

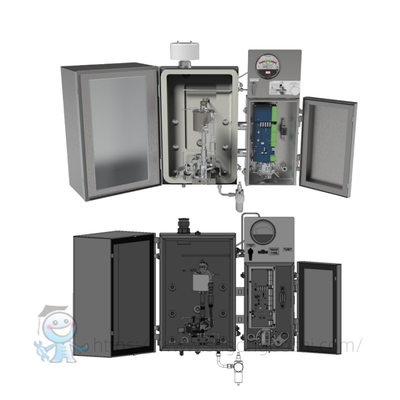

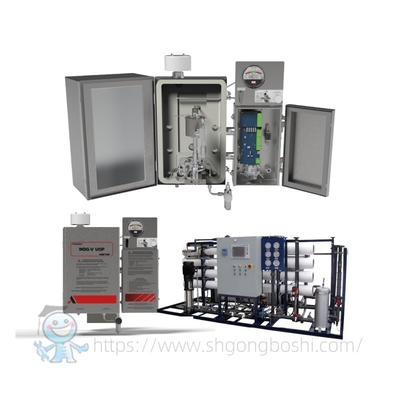

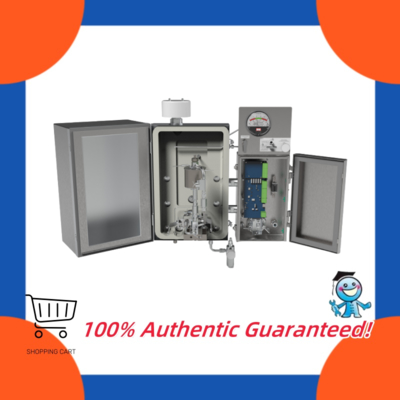

Ametek Thermox WDG-IV & WDG-V UOP Oxygen Analyzers | UOP-Specified Combustion Control for Refinery Furnaces

Product Overview

The UOP-Specified Combustion Control Ametek Thermox WDG-IV UOP WDG-V UOP Oxygen Analyzers are precision instruments designed for oxygen measurement in refinery furnaces and hydrocarbon processing environments. Combining the reliability of zirconia sensor technology with UOP-specific engineering, these analyzers deliver unmatched accuracy for continuous catalyst regeneration (CCR) and flue gas monitoring. The dual-model system supports both low-concentration oxygen detection (WDG-IV) and in-situ flue gas analysis (WDG-V), ensuring optimal combustion control and emissions compliance.

Technical Parameters

Parameter WDG-IV UOP Specification WDG-V UOP Specification
Measurement Principle Zirconia net oxygen sensor In-situ zirconia probe
Range 0-1% to 0-100% O₂ 0-1% to 0-25% O₂
Accuracy ±0.75% of reading or ±0.05% O₂ ±0.5% of reading or ±0.01% O₂
Response Time <5 seconds (90% step) <3 seconds (90% step)
Power Requirements 115/230 VAC, 47-63 Hz 100-240 VAC, 50/60 Hz
Output Signals 4-20 mA, HART 4-20 mA, Modbus RTU, HART, Foundation Fieldbus
Safety Certification SIL-2 certified SIL-2 certified

Key Features

UOP-Specific Engineering: Tailored for UOP Continuous Catalyst Regeneration (CCR) processes and refinery furnace applications.

Dual-Mode Capability: WDG-IV for low-concentration O₂ detection; WDG-V for in-situ flue gas monitoring.

Advanced Diagnostics: Predictive maintenance alerts, self-calibration, and fault detection via integrated HMI.

Robust Construction: High-temperature resistant probes and corrosion-resistant enclosures for harsh environments.

Digital Integration: Seamless connectivity with DCS/PLC systems via HART, Modbus, and Foundation Fieldbus.

Applications

Refinery Furnaces: Optimizes air-fuel ratios for efficient combustion and reduced NOx emissions.

UOP CCR Platforming: Precision O₂ control during catalyst regeneration to prevent over-oxidation.

Sulfur Recovery Units: Monitors oxygen levels for optimal Claus process performance.

Ethylene & Hydrogen Production: Ensures gas purity and process safety in steam crackers and reformers.

Power Generation: Supports combustion control in coal, gas, and biomass power plants.
