Product Overview

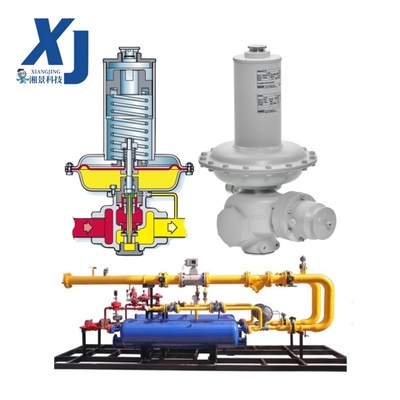

The Itron RB1700 and RB1800 Pressure Regulators are compact, direct-acting, spring-loaded solutions engineered for safe and efficient gas pressure control in space-constrained environments. With a balanced valve design ensuring stable outlet pressure and an optional safety shut-off valve (SSV) for over-pressure and under-pressure protection, these regulators are perfect for industrial ovens, burners, and gas distribution systems. The RB1700 (¾" and 1") specializes in high-pressure reduction, such as LPG first-stage applications, while the RB1800 (¾" and 1½") supports large appliance regulation. A built-in creep relief valve and easy-reset bypass system enhance safety, making these regulators a reliable choice for natural gas, LPG, and other non-corrosive gas applications.
Key Features
- Compact Design: Ideal for installation in cabinets or tight spaces.
- Safety Shut-Off Valve (SSV): Optional high/low-pressure SSV with mistake-proof bypass for quick reset.
- Balanced Valve Technology: Maintains consistent outlet pressure under variable inlet conditions.
- Creep Relief Valve: Enhances safety on low outlet pressure configurations.
- High Flow Capacity: Delivers up to 120,000 SCFH for large-scale applications.
- Flexible Mounting: Supports horizontal or vertical piping orientations.
- Rugged Construction: Made with ductile iron, steel, brass, and stainless steel for durability.
- Fluid Versatility: Handles natural gas, LPG, propane, butane, air, and nitrogen.
- Low Maintenance: Interchangeable springs and bypass system simplify servicing.
Technical Specifications
| Parameter | RB1700 | RB1800 |
| Connection Sizes | ¾", 1" NPT | ¾", 1½" NPT |
| Maximum Inlet Pressure | Up to 1480 psig (100 barg) | Up to 1480 psig (100 barg) |
| Outlet Pressure Range | 0.5 to 40 psig (35 mbar to 2.76 barg) | 0.5 to 40 psig (35 mbar to 2.76 barg) |
| Maximum Flow Capacity | Up to 120,000 SCFH | Up to 120,000 SCFH |
| Body Materials | Ductile iron (UNI-ISO 1083), Steel (ASTM A216 WCB) | Ductile iron (UNI-ISO 1083), Steel (ASTM A216 WCB) |
| Internal Parts | Brass, stainless steel | Brass, stainless steel |
| Diaphragm | Synthetic rubber with fabric reinforcement | Synthetic rubber with fabric reinforcement |
| Seals | Nitrile rubber, Viton (optional) | Nitrile rubber, Viton (optional) |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) | -4°F to 140°F (-20°C to 60°C) |
| Shut-Off Valve Options | High-pressure and/or low-pressure SSV | High-pressure and/or low-pressure SSV |
| Certifications | PED, ATEX (optional) | PED, ATEX (optional) |
Applications
The Itron RB1700/RB1800 Pressure Regulators excel in safety-critical gas applications:
- Gas Supply Networks: Provides stable pressure for district stations and pipelines.
- Industrial Burners: Ensures precise control for ovens and furnaces.
- LPG Systems: Supports high-pressure reduction in LPG applications (RB1700).
- Commercial Appliances: Powers large-scale heating and processing equipment.
- Power Generation: Manages gas pressure in turbine and boiler systems.
Frequently Asked Questions
What gases are compatible with the RB1700/RB1800?
They handle natural gas, LPG, propane, butane, air, nitrogen, and other non-corrosive gases.
How does the balanced valve design improve performance?
It ensures consistent outlet pressure despite inlet fluctuations, enhancing reliability.
Why is the RB1700 ideal for LPG applications?
Its ¾" size is specifically designed for high-pressure reduction, such as LPG first-stage regulation.
Can the regulators be installed in confined spaces?
Yes, their compact design is suitable for cabinet installations.
What is the role of the creep relief valve?
It enhances safety by relieving excess pressure in low outlet pressure configurations.
