ASME-certified Safety Relief Valve with High-flow Capability and Balanced Bellows for Industrial Boiler Pressure Protection

1
MOQ
US $1250.00 - 1600.00/ Set
Price
ASME-certified Safety Relief Valve with High-flow Capability and Balanced Bellows for Industrial Boiler Pressure Protection
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Connection Type: Flange
Port Size: 1 1/2 Inch, 4 Inch, 3 In, 2 Inch
Inlet Connection Size: 1-1/2 In
Max. Operating Temperature: -20°F To 1120°F
Media: Steam
Highlight:

industrial boiler safety valve

,

pressure relief valve for oil gas

,

refinery service pressure reducing valve
Basic Infomation
Place of Origin: United States
Brand Name: Consolidated
Model Number: 1700 2700 3700
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 800 sets per year
Product Description

Product Overview

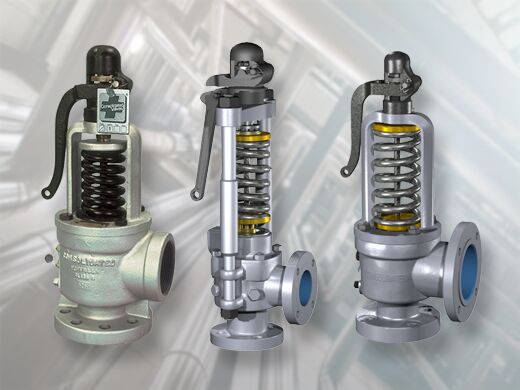

Consolidated 1700, 2700 and 3700 series are ASME-certified spring-loaded safety relief valves for protecting pressure vessels and systems from overpressure. The 1700 is conventional full-nozzle design, 2700 adds balanced bellows for backpressure handling, and 3700 offers larger orifices for high-flow relief. They are trusted in critical process applications for tight seating and repeatable performance.

Features

  • Full-nozzle design for high capacity
  • Balanced bellows (2700) – isolates spring from backpressure
  • High-flow capability (3700 series)
  • Adjustable blowdown ring
  • Multiple trim and material options
  • Open bonnet for high-temperature service
  • Certified for gas, liquid, and steam

Technical Specifications

  • Orifice Designation: D to T (API 526)
  • Inlet/Outlet Sizes: 1" D 2" to 8" T 10" typical
  • Set Pressure: 15 to 6000 psig
  • Temperature Range: –423 °F to +1500 °F
  • Body Materials: Carbon steel, stainless steel, chrome-moly
  • Disc/Seat: Stainless steel, Stellite facing
  • Leakage: API 527 certified tight
  • Certification: ASME Section VIII, API 526/527

Applications

  • Pressure vessel protection (ASME code)
  • Steam drum and superheater relief
  • Gas compressor discharge
  • Refinery and chemical overpressure safety
  • High-flow relief scenarios

FAQ

Q: What does balanced bellows do?

A: Reduces effect of backpressure on set pressure (2700 model).

Q: High-temperature capability?

A: Yes – up to +1500 °F with proper materials.
